# BigTreeTech HDMI5 V1.0

> 5-inch 800x480 IPS HDMI capacitive touchscreen display. Compatible with Raspberry Pi, BTT SBCs, and any HDMI source. USB-C data port, 3.5mm audio jack, 5-point touch, auto-driver on PC.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** Display
- **Price:** ~$39.6
- **Product Readiness:** consumer
- **CPU:** N/A (HDMI display)
- **CPU Architecture:** No
- **RAM:** No
- **Flash:** No
- **USB:** 1x USB Type-C (data)
- **Power:** 5V DC
- **Operating Voltage:** 3.3V
- **SD Card:** No
- **Display:** 5 inch IPS Capacitive Touchscreen 800x480

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Klipper

## Use Cases

- 3D Printing

## Components

- **5-inch IPS 800x480** (display): 5-inch IPS LCD panel, 800x480 resolution, 160° viewing angle, 5-point capacitive touch — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FBIGTREETECH-HDMI5-V1.0&ref=openhardware.directory&product=bigtreetech-hdmi5-v1-0&source=md-export)

## Protocols

- **HDMI**
- **USB**

## Description

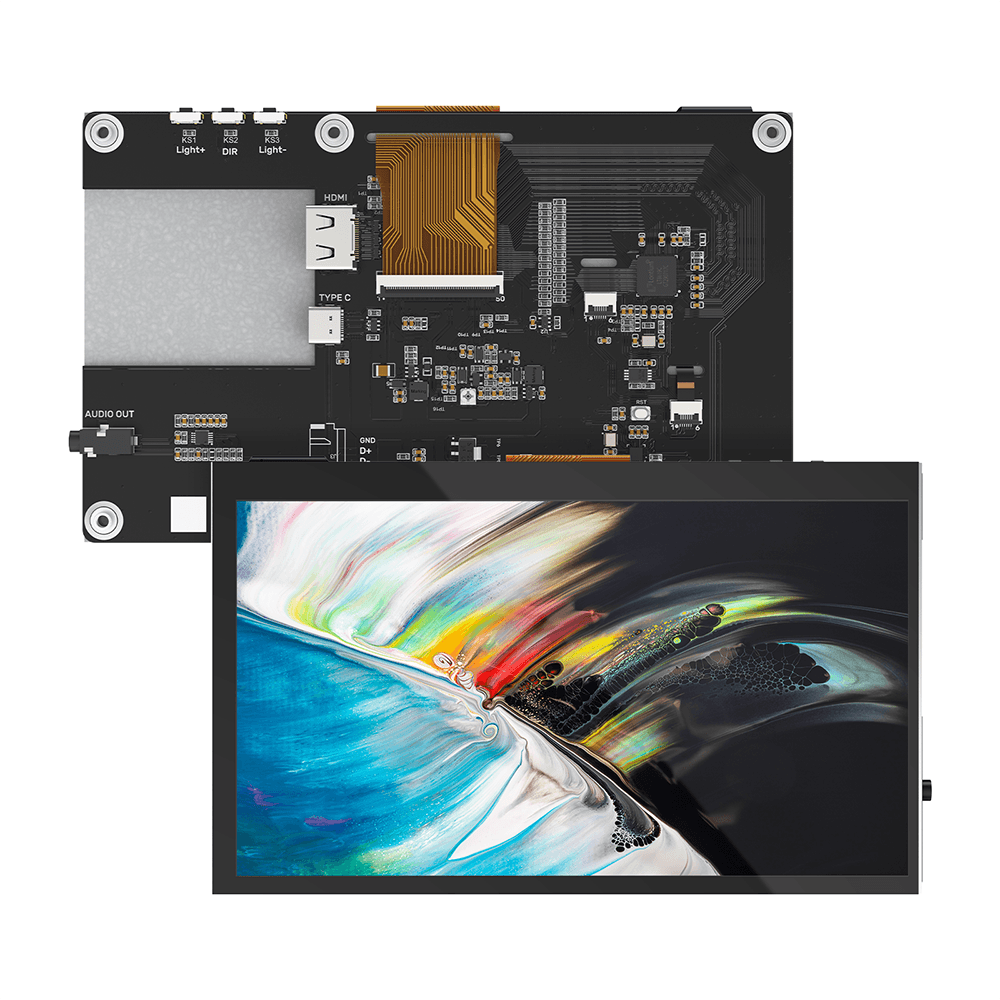

The BigTreeTech HDMI5 V1.0 is a universal 5-inch IPS touchscreen display that connects to any HDMI-capable device including Raspberry Pi, BTT Pi, CB2-based boards, and standard PCs. The 800x480 resolution panel features 5-point capacitive touch, a 160° wide viewing angle, and a built-in audio decoding circuit with a 3.5mm headphone/speaker output.

The display receives video via HDMI and touch data via USB Type-C. On Windows and Linux PCs, it is recognized automatically without additional drivers. Brightness is adjustable via dedicated buttons. A red power indicator (D11) and green status indicator (D12) provide at-a-glance operational status. Logic voltage is 3.3V and power input is 5V DC.

The HDMI5 measures 121x76mm, making it a compact panel suitable for mounting on 3D printers, CNC machines, or DIY projects. It is a popular companion for BIGTREETECH SBCs running KlipperScreen or Mainsail. Hardware design files are open-source on GitHub.
