# BigTreeTech BTT Pi V1.2

> Single board computer by BigTreeTech with Allwinner H616 quad-core Cortex-A53, 1GB DDR3L RAM, WiFi, 100Mbps Ethernet, and 40-pin GPIO. Drop-in Raspberry Pi CM4 alternative for Klipper 3D printing.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** Single Board Computer
- **Product Readiness:** consumer
- **CPU:** Allwinner H616 Quad-core Cortex-A53 @ 1.5GHz
- **CPU Architecture:** ARM Cortex-A53
- **CPU Cores:** 4
- **RAM:** 1GB DDR3L
- **Flash:** None (microSD)
- **USB:** 3x USB 2.0,1x USB OTG
- **Power:** 5V/2A
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** true
- **Ethernet:** true

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Klipper, Armbian, Debian

## Use Cases

- 3D Printing
- Single Board Computing

## Components

- **Allwinner H616** (cpu): Allwinner H616 quad-core ARM Cortex-A53 @ 1.5GHz with Mali-G31 GPU — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Flinux-sunxi.org%2FH616&ref=openhardware.directory&product=bigtreetech-btt-pi-v1-2&source=md-export)
- **2.4G 802.11 b/g/n** (wifi): Integrated 2.4GHz 802.11 b/g/n WiFi module — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FBTT-Pi&ref=openhardware.directory&product=bigtreetech-btt-pi-v1-2&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **USB**

## Description

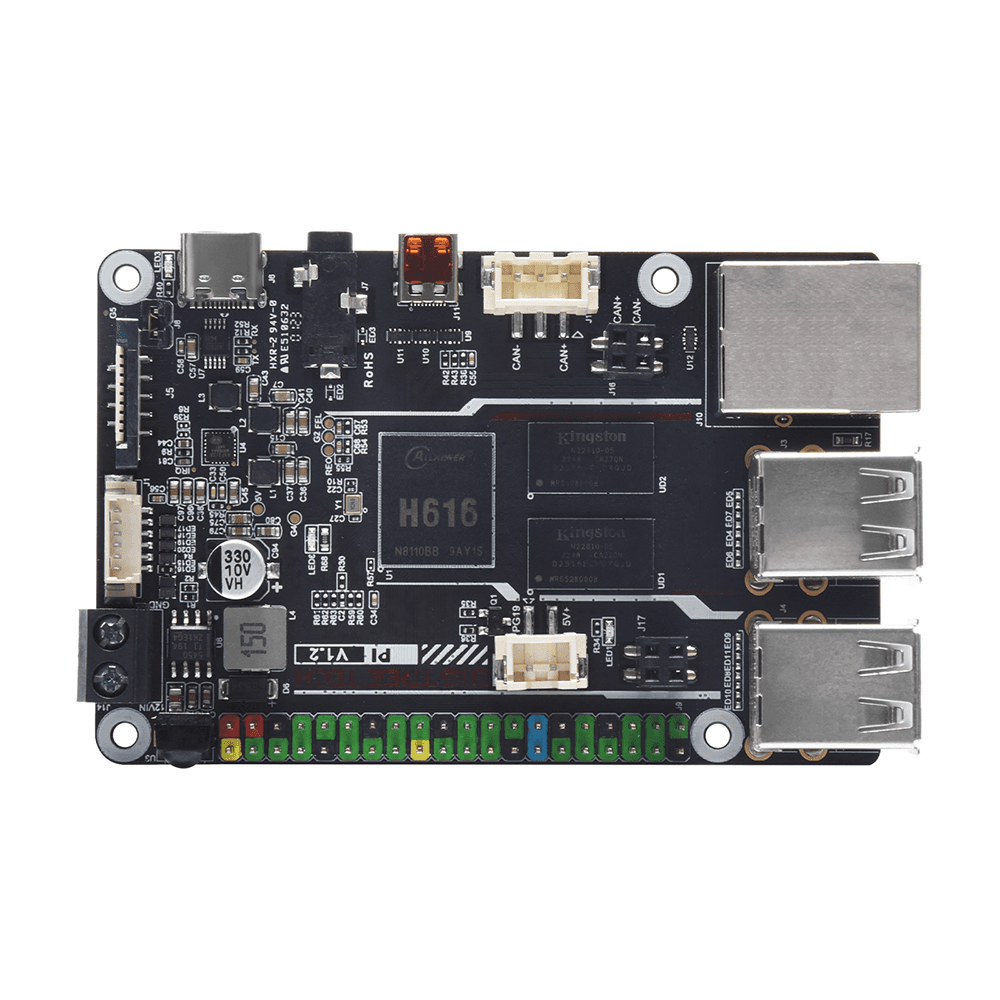

The BigTreeTech BTT Pi V1.2 (also known as the BIGTREETECH Pi) is a compact single-board computer purpose-built for 3D printer control. It is powered by the Allwinner H616 quad-core Cortex-A53 processor running at 1.5GHz, paired with 1GB DDR3L RAM and a microSD slot for the operating system. The board measures 40 x 55mm, identical to the CB1 compute module form factor, and uses a BTB connector that is compatible with the Raspberry Pi CM4 ecosystem.

Networking is provided by a 2.4GHz 802.11 b/g/n WiFi module and a 100Mbps Ethernet port. The board exposes three USB 2.0 host ports plus one USB OTG port, and a full 40-pin GPIO header for peripherals. Power input is 5V/2A via the carrier board connector.

The BTT Pi ships with a CB1-compatible OS image based on Debian/Armbian, pre-configured for Klipper. It is intended to replace a Raspberry Pi on 3D printer control boards such as the Manta M4P, M5P, and M8P, as well as acting as a standalone SBC for any Linux workload. Schematics and hardware design files are published on GitHub under an open-source license.

## Where to Buy

- [BIQU Equipment](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-btt-pi-v1-2&ref=openhardware.directory&product=bigtreetech-btt-pi-v1-2&source=md-export)

## Resources

- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FBTT-Pi&ref=openhardware.directory&product=bigtreetech-btt-pi-v1-2&source=md-export)
- [product](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-btt-pi-v1-2&ref=openhardware.directory&product=bigtreetech-btt-pi-v1-2&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FCB1&ref=openhardware.directory&product=bigtreetech-btt-pi-v1-2&source=md-export)

## Tags

`single-board-computer`, `klipper`, `3d-printing`, `allwinner-h616`, `raspberry-pi-alternative`, `bigtreetech`, `arm-cortex-a53`, `gpio`
