LILYGO T-Panel S3
Dual-MCU smart panel (ESP32-S3 + ESP32-H2) with 4" 480×480 IPS LCD (ST7701S), WiFi, BLE, native Zigbee/Thread/Matter via H2 co-processor, and optional RS485/CAN FD expansion for wall-mounted smart home controllers.
$35.99
Tap any value to browse matching devices
Specifications
Certifications
Components
Xtensa LX7 dual-core at 240MHz with 16MB flash, 8MB PSRAM, WiFi, and BLE 5.0 for main application logic.
RISC-V co-processor providing native IEEE 802.15.4 for Zigbee 3.0, Thread 1.3, and Matter 1.0 support.
RGB+SPI interface IPS LCD driver supporting 480×480 resolution for large smart panel displays.
Bus Interfaces
GPIO Map
Overview

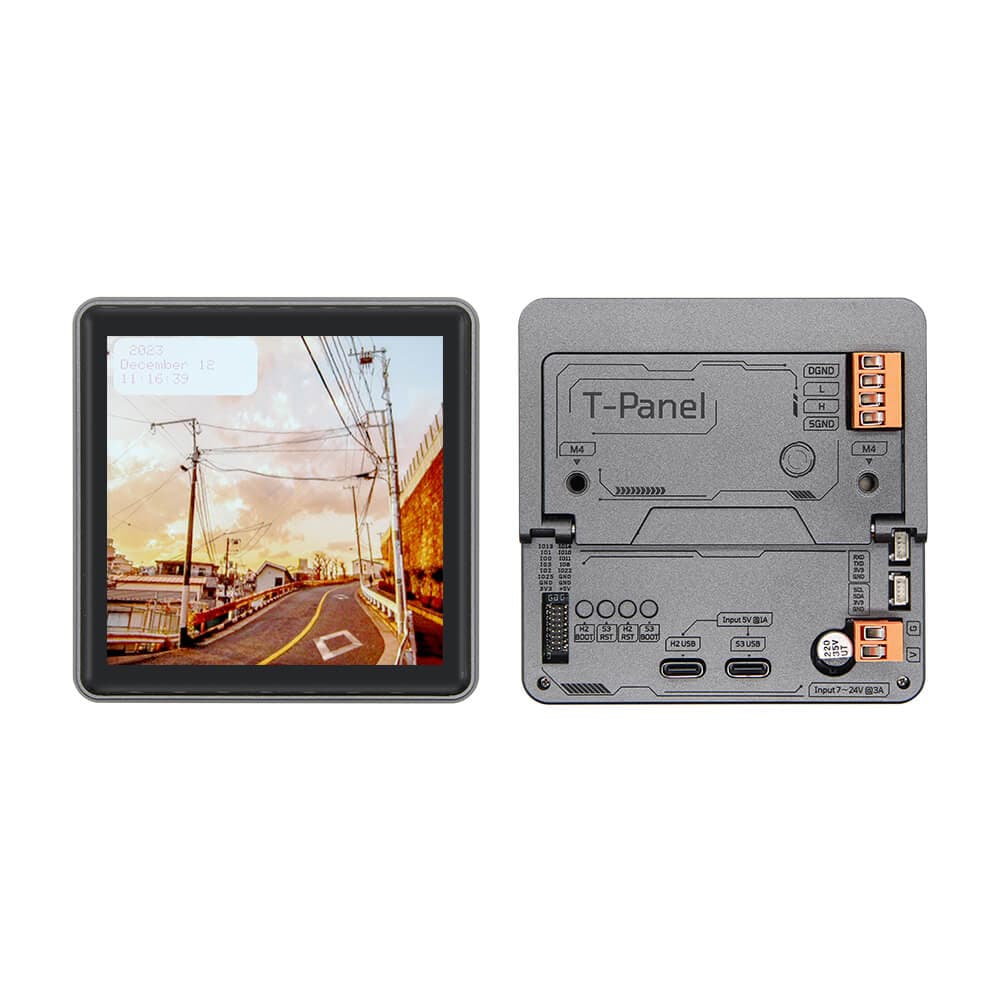

The LILYGO T-Panel S3 is a dual-processor smart home panel combining an ESP32-S3 for main application logic with an ESP32-H2 co-processor providing native IEEE 802.15.4 connectivity for Zigbee 3.0, Thread 1.3, and Matter 1.0. The result is a standalone smart panel that speaks all modern smart home protocols without any additional hardware.
The centerpiece is a 4-inch IPS LCD (ST7701S, 480×480, RGB+SPI interface) providing a large, vivid touch display for wall-mounted control panels, thermostats, and home dashboards. Optional RS-485 and CAN FD expansion modules extend compatibility to industrial protocols and BMS systems.
The T-Panel S3 is designed to be flush-mounted in standard electrical wall boxes, making it a professional alternative to commercial smart panels. Its ESP32-S3 runs the UI and WiFi connectivity while the ESP32-H2 handles low-power Zigbee/Thread communication, enabling it to serve as a Matter bridge gateway for existing Zigbee device ecosystems.
