LILYGO T-Lora C6
LILYGO T-Lora C6 is a compact LoRa development board combining the ESP32-C6 module with SX1262 radio, supporting Wi-Fi 6, Bluetooth 5 LE, Zigbee, Thread, and sub-GHz LoRa communication.
$16.52
Tap any value to browse matching devices
Specifications
Components
Semtech SX1262 sub-GHz LoRa transceiver supporting 433, 868, and 915 MHz frequency bands for long-range communication
Bus Interfaces
Overview

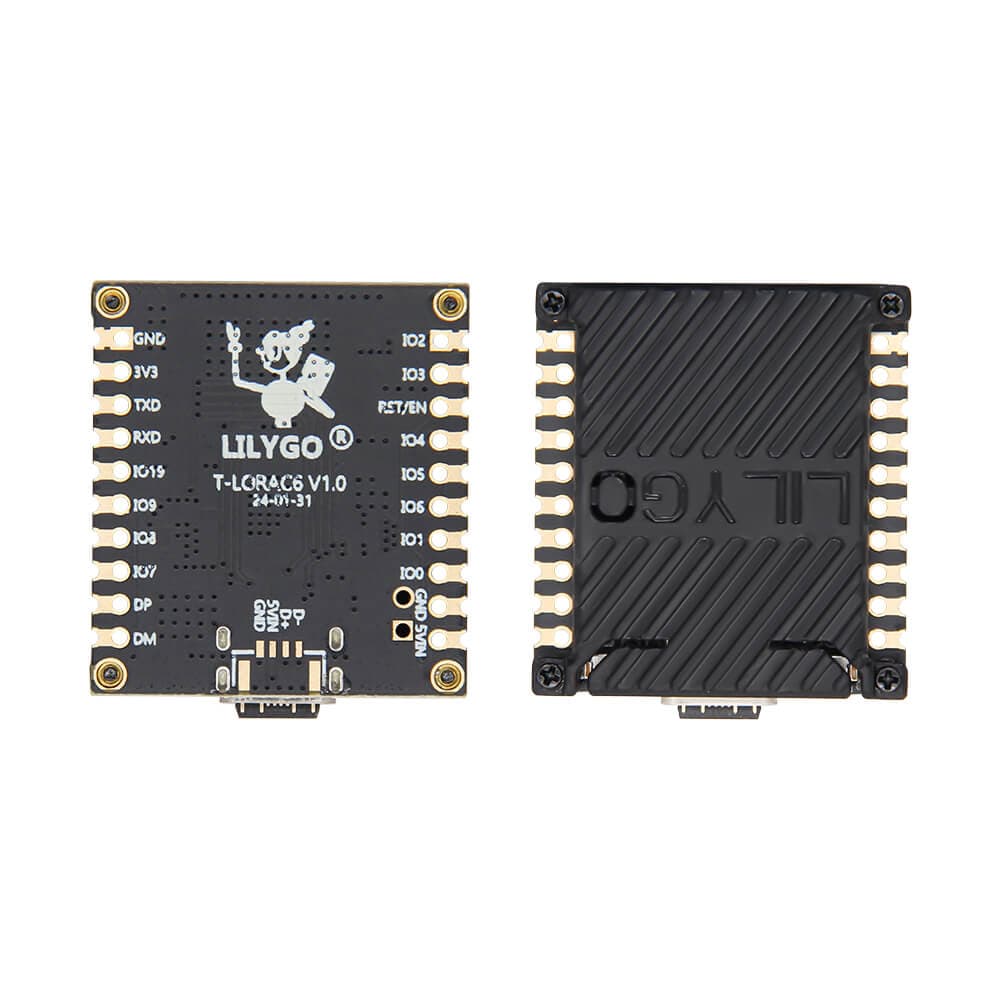

The LILYGO T-Lora C6 pairs the ESP32-C6-MINI-1 module with an SX1262 LoRa transceiver supporting 433, 868, and 915 MHz bands. The ESP32-C6 brings Wi-Fi 6 (802.11ax), Bluetooth 5 LE, and IEEE 802.15.4 for Zigbee and Thread protocols alongside the long-range sub-GHz LoRa radio. The board features a 3D-printed lid to secure the FPC antenna (removable). Onboard functions include a BOOT and Reset button, and a custom function LED. Development is supported via Arduino IDE, VS Code (ESP-IDF), and MicroPython.
Use Cases
5LoRa IoT
IoT applications using LoRa radio for long-range, low-power sensor connectivity.
Smart Metering
Remote energy, water, or gas meter reading and monitoring with wireless data transmission.
Zigbee Gateway
Serves as a Zigbee coordinator/gateway, connecting Zigbee 3.0 end-devices to home automation systems and IP networks.
Long-Range Sensor Network
Distributed sensor networks covering large areas using LoRa or cellular connectivity.
Thread Mesh Network
Low-power mesh networking using Thread protocol for smart home and IoT devices.
