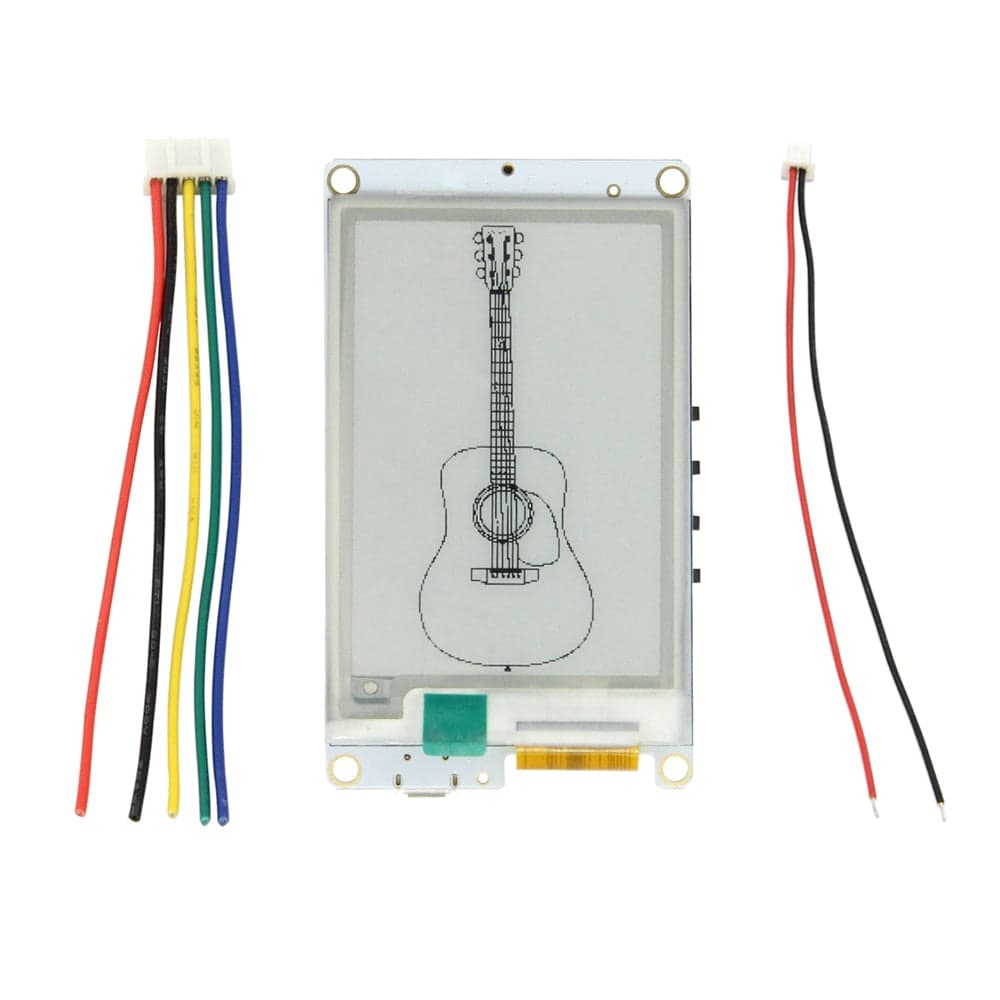

LILYGO T5s 2.7 inch E-Paper
LILYGO T5s is an ESP32 development board with a 2.7-inch 264×176 e-paper display, onboard I2S audio (MAX98357A amplifier + ICS43434 MEMS mic), 500mA battery management, and TF card support.
$22.94
Tap any value to browse matching devices
Specifications
Components
Espressif ESP32-D0WDQ6 REV1 dual-core Xtensa LX6 microcontroller with integrated WiFi and Bluetooth 4.2.
Maxim MAX98357A filterless Class-D audio amplifier receiving I2S audio data directly from the ESP32.
TDK InvenSense ICS43434 single-channel MEMS microphone with I2S output connected to the ESP32.
Silicon Labs CP2102 USB to UART bridge for programming and serial communication with the ESP32.
Bus Interfaces
GPIO Map
Overview
The LILYGO T5s 2.7 inch E-Paper is a feature-rich ESP32 development board combining wireless connectivity with an ultra-low-power 2.7-inch monochrome e-paper display. It integrates a MAX98357A Class-D I2S amplifier and an ICS43434 MEMS microphone for audio-capable IoT applications. A 500mA battery management IC with short-circuit, overcharge, and overflow protection manages LiPo charging via USB. Four LEDs provide real-time battery status. The board exposes GROVE and GPIO headers, a TF card slot for expanded storage, and a power button supporting single-click start and double-click shutdown. Compatible with the Arduino IDE and the GxEPD2 / LilyGo-T5-Epaper-Series libraries.
Use Cases
6E-Reader
Electronic book reader and document viewer with low-power e-paper display for comfortable long-form reading.
Weather Display
A dedicated screen that shows weather information including current conditions, temperature, humidity, pressure, and multi-day forecasts.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
Digital Signage
Driving displays for advertising, information kiosks, or menu boards with 4K video and dynamic content.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Voice Assistant
Offline and cloud-connected voice assistant, wake-word detection, and speech recognition projects.
