# M5Stack Station-Bat

> Industrial ESP32 controller with 1.14" IPS LCD, 6 Grove ports, INA3221 power monitor, MPU6886 IMU, RTC, 7x SK6812 LEDs, dual 18650 battery holders, USB-A power output, and 16MB flash.

## Quick Facts

- **Brand:** M5Stack
- **Board Type:** industrial-controller
- **Price:** ~$65
- **Product Readiness:** developer
- **CPU:** Xtensa LX6 dual-core @ 240MHz, FPU, hardware crypto
- **CPU Architecture:** Xtensa LX6
- **CPU Cores:** 2
- **RAM:** 520KB SRAM
- **Flash:** 16MB
- **USB:** USB-C,USB-A
- **Power:** 5V via USB-C or dual 18650 batteries
- **Operating Voltage:** 3.3V
- **Dimensions:** 88 x 65 x 35mm
- **Weight:** 153g
- **Battery:** 18650 x2 (user-supplied)
- **Antenna:** Built-in PCB antenna
- **SD Card:** No
- **Display:** 1.14" IPS LCD 240x135

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** Bluetooth 4.2, BLE

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

arduino, esp-idf, platformio, uiflow, micropython

## Use Cases

- industrial-iot
- iot-gateway
- energy-monitoring
- environmental-monitoring
- smart-home-dashboard

## Components

- **ESP32-D0WDQ6-V3** (mcu): Espressif ESP32 SoC dual-core Xtensa LX6 at 240MHz — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32_datasheet_en.pdf&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- **ST7789V2** (display-driver): 240x135 IPS LCD driver, SPI interface — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fm5stack.oss-cn-shenzhen.aliyuncs.com%2Fresource%2Fdocs%2Fdatasheet%2Funit%2Flcd%2FST7789V2_SPEC_V1.0.pdf&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- **AXP192** (battery-charger): Advanced PMIC for LiPo charging and power path management — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fm5stack.oss-cn-shenzhen.aliyuncs.com%2Fresource%2Fdocs%2Fdatasheet%2Fcore%2FAXP192_datasheet_en.pdf&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- **MPU6886** (accelerometer): 6-axis MEMS IMU for motion sensing — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fm5stack.oss-cn-shenzhen.aliyuncs.com%2Fresource%2Fdocs%2Fdatasheet%2Fcore%2FMPU-6886-000193%2Bv1.1_GHIC_en.pdf&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- **BM8563** (rtc): Low-power RTC for timekeeping — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdatasheet.lcsc.com%2Flcsc%2F1811152241_GATEMODE-BM8563_C269877.pdf&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- **INA3221** (current-sensor): 3-channel I2C current and voltage monitor for power management — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Flit%2Fds%2Fsymlink%2Fina3221.pdf&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- **SK6812** (led-driver): 7 individually addressable RGB LEDs for status indication — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcdn-shop.adafruit.com%2Fproduct-files%2F1138%2FSK6812%2BLED%2Bdatasheet%2B.pdf&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)

## Protocols

- **I2C**: SDA: GPIO32, SCL: GPIO33
- **SPI**: CLK: GPIO18, MOSI: GPIO23
- **UART**: TX0: GPIO1, RX0: GPIO3

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO32 | I2C SDA | I2C | digital-input, digital-output, adc, pwm |
| GPIO33 | I2C SCL | I2C | digital-input, digital-output, adc, pwm |
| GPIO25 | DAC1 | — | digital-input, digital-output, dac, adc, pwm |
| GPIO26 | DAC2 | — | digital-input, digital-output, dac, adc, pwm |
| GPIO36 | ADC Input | — | adc, input-only |
| GPIO35 | ADC Input | — | adc, input-only |

## Description

## Overview

The M5Stack Station-Bat is an industrial-grade programmable embedded controller built around the ESP32-D0WDQ6-V3 dual-core processor. Designed for field deployment, it features a rugged enclosure with a 1.14-inch IPS display (240x135), three programmable buttons, and six Grove (HY2.0-4P) expansion ports for connecting sensors and actuators.

Key features include an INA3221 triple-channel current/voltage monitor for power management, an MPU6886 6-axis IMU for motion sensing, a BM8563 RTC for timekeeping, and 7 SK6812 addressable RGB LEDs. The Station-Bat model includes dual 18650 battery holders for extended off-grid operation and a USB-A port for powering external devices.

## Where to Buy

- [M5Stack Official](https://openhardware.directory/r?to=https%3A%2F%2Fshop.m5stack.com%2Fproducts%2Fm5stack-station-esp32-iot-development-kit-battery-version&ref=openhardware.directory&product=m5stack-station-bat&source=md-export) — $65.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fshop.m5stack.com%2Fproducts%2Fm5stack-station-esp32-iot-development-kit-battery-version&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fm5stack%2FM5Station&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.m5stack.com%2Fen%2Fcore%2Fstation_bat&ref=openhardware.directory&product=m5stack-station-bat&source=md-export)

## Tags

`esp32`, `m5stack`, `industrial`, `power-monitor`, `imu`, `grove`, `battery`

## Images

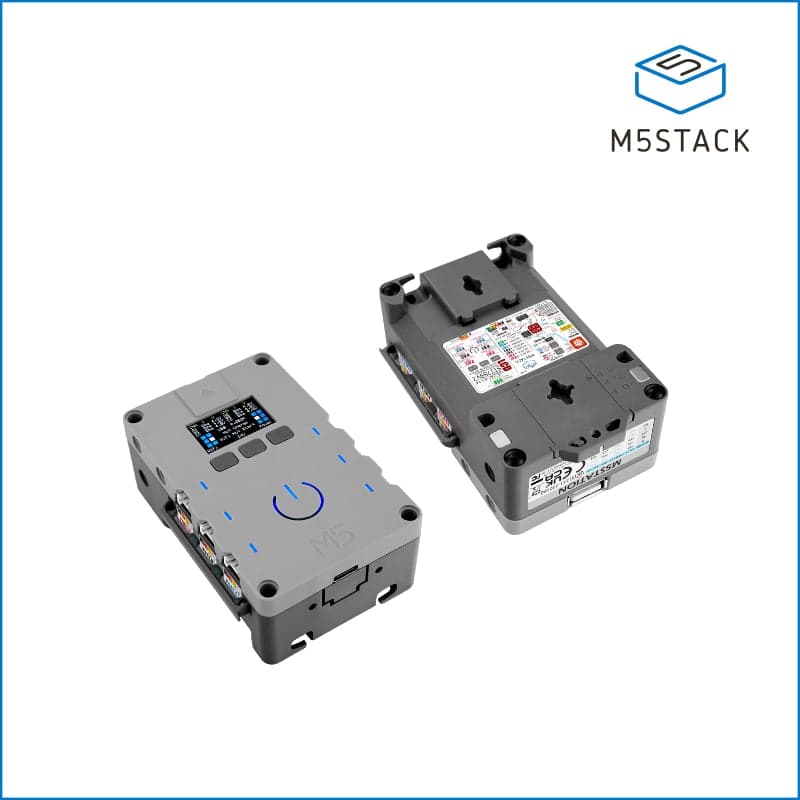

![M5Stack Station-Bat](https://nbg1.your-objectstorage.com/openhardware-directory/entities/m5stack-station-bat/1fff8db3e981.jpg)
![M5Stack Station-Bat](https://nbg1.your-objectstorage.com/openhardware-directory/entities/m5stack-station-bat/366b650bc44e.jpg)

> **Battery Powered:** 18650 Li-ion (x2)

---
