# M5Stack Atom Lite

> Ultra-compact ESP32-PICO-D4 development board (24x24mm) with RGB LED, programmable button, IR transmitter, Grove port, and 6 GPIO pins. Supports Arduino, ESP-IDF, UIFlow, and MicroPython.

## Quick Facts

- **Brand:** M5Stack
- **Board Type:** dev-board
- **Price:** ~$7.5
- **Product Readiness:** developer
- **CPU:** Xtensa LX6 dual-core @ 240MHz
- **CPU Architecture:** Xtensa LX6 dual-core
- **CPU Cores:** 2
- **RAM:** 520KB SRAM
- **Flash:** 4MB SPI
- **USB:** USB-C
- **Power:** 5V @ 500mA via USB-C
- **Operating Voltage:** 3.3V
- **Operating Temp:** 0 ~ 40°C
- **Dimensions:** 24 × 24 × 9.5mm
- **Weight:** 5.5g
- **Antenna:** built-in 3D antenna

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 4.2

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

arduino, esp-idf, uiflow, micropython, platformio

## Use Cases

- iot
- smart-home
- environmental-monitoring
- ir-remote-control
- sensor-hub
- wearable-prototype

## Components

- **ESP32-PICO-D4** (mcu): Espressif ESP32-PICO-D4 system-in-package with dual-core Xtensa LX6 at 240MHz, 4MB flash, WiFi 802.11 b/g/n and Bluetooth 4.2. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-pico-d4_datasheet_en.pdf&ref=openhardware.directory&product=m5stack-atom-lite&source=md-export)
- **SK6812** (led): SK6812 programmable RGB LED for status indication and visual feedback. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcdn-shop.adafruit.com%2Fproduct-files%2F1138%2FSK6812%2BLED%2Bdatasheet%2B.pdf&ref=openhardware.directory&product=m5stack-atom-lite&source=md-export)

## Protocols

- **I2C**
- **SPI**
- **UART**
- **Grove**
- **IR**

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| G19 | — | — | — |
| G21 | — | — | — |
| G22 | — | — | — |
| G23 | — | — | — |
| G25 | — | — | — |
| G33 | — | — | — |

## Description

## Overview

The M5Stack Atom Lite is one of the smallest ESP32 development boards available, measuring just 24 × 24 × 9.5mm and weighing only 5.5g. Built around the ESP32-PICO-D4 system-in-package with a dual-core Xtensa LX6 processor running at 240MHz, it packs WiFi and Bluetooth connectivity into a tiny form factor ideal for embedded IoT applications.

Despite its miniature size, the Atom Lite includes a programmable button on the front face, an SK6812 RGB LED for status indication, and a built-in infrared transmitter. The bottom exposes 6 GPIO pins (G19, G21, G22, G23, G25, G33) along with a Grove/HY2.0 port supporting I2C, UART, and general I/O — making it easy to connect sensors, actuators, and M5Stack expansion units.

Programming is supported through Arduino IDE, ESP-IDF, UIFlow (visual block programming and MicroPython), and PlatformIO. The USB-C port handles both programming and 5V power delivery.

The Atom Lite is well suited for space-constrained IoT deployments, smart home automation nodes, sensor hubs, IR remote control projects, and wearable prototypes where minimal footprint is critical.

## Where to Buy

- [OpenELab](https://openhardware.directory/r?to=https%3A%2F%2Fopenelab.io%2Fproducts%2Fm5stackatomliteesp32&ref=openhardware.directory&product=m5stack-atom-lite&source=md-export) — €9.95
- [M5Stack Official](https://openhardware.directory/r?to=https%3A%2F%2Fshop.m5stack.com%2Fproducts%2Fatom-lite-esp32-development-kit&ref=openhardware.directory&product=m5stack-atom-lite&source=md-export) — $7.50

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.m5stack.com%2Fen%2Fcore%2FATOM%2520Lite&ref=openhardware.directory&product=m5stack-atom-lite&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fm5stack%2FM5Atom&ref=openhardware.directory&product=m5stack-atom-lite&source=md-export)

## Tags

`esp32`, `m5stack`, `atom`, `compact`, `grove`, `ir-transmitter`, `iot`, `rgb-led`

## Images

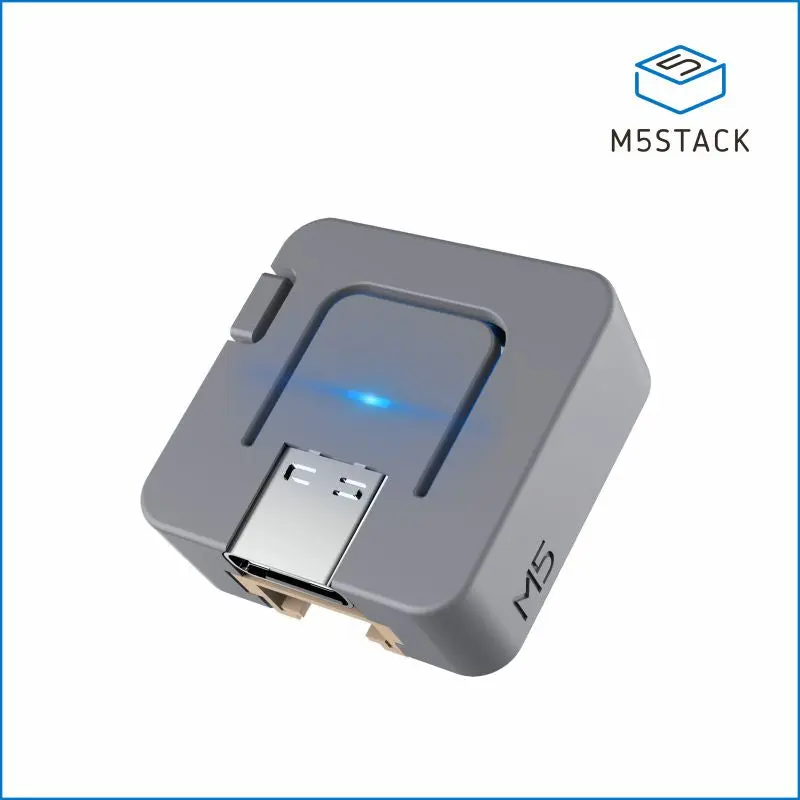

![M5Stack Atom Lite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/m5stack-atom-lite/413d983818aa.jpg)

---
