# LILYGO T-A7608E-H

> ESP32-WROVER-E development board with A7608E-H LTE Cat-1 modem supporting voice, SMS, GPS, and multi-band LTE-FDD/TDD connectivity for Europe with 18650 battery support.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** ESP32
- **Price:** ~$34.99
- **Product Readiness:** developer
- **CPU:** ESP32-WROVER-E
- **CPU Architecture:** Xtensa LX6 dual-core
- **RAM:** 520 KB
- **PSRAM:** 8MB
- **Flash:** 4MB
- **USB:** USB-C (CH9102)
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **Battery:** 18650 Li-Ion (external holder)
- **Charging Port:** USB-C
- **Antenna:** U.FL/IPEX
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 4.2
- **Cellular:** 4G LTE Cat-1

## Open Source

- **Status:** open-firmware
- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, esp-idf

## Use Cases

- iot-sensors
- asset-tracking
- vehicle-tracking
- alarm-systems
- remote-monitoring
- industrial-iot

## Components

- **ESP32-WROVER-E** (mcu): Dual-core 240 MHz Xtensa LX6 MCU with 4 MB flash and 8 MB PSRAM, integrated Wi-Fi 802.11 b/g/n and Bluetooth 4.2. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-a7608e-h&source=md-export)
- **A7608E-H** (cellular-modem): SIMCOM A7608E-H LTE Cat-1 modem with multi-band LTE-TDD/FDD, UMTS/HSPA+, GSM/GPRS/EDGE support and integrated GPS/GNSS for Europe frequency bands. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ai-thinker.com%2Fpro_view-58.html&ref=openhardware.directory&product=lilygo-t-a7608e-h&source=md-export)
- **CH9102** (usb-bridge): WCH CH9102 USB-to-TTL serial converter for USB programming and debugging. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.wch-ic.com%2Fproducts%2FCH9102.html&ref=openhardware.directory&product=lilygo-t-a7608e-h&source=md-export)

## Protocols

- **I2C**
- **SPI**
- **UART**
- **SDIO**
- **I2S**
- **CAN**

## Available Software

- **[Arduino IDE]()** (open-source)
- **[ESP-IDF]()** (open-source)

## Description

## Overview

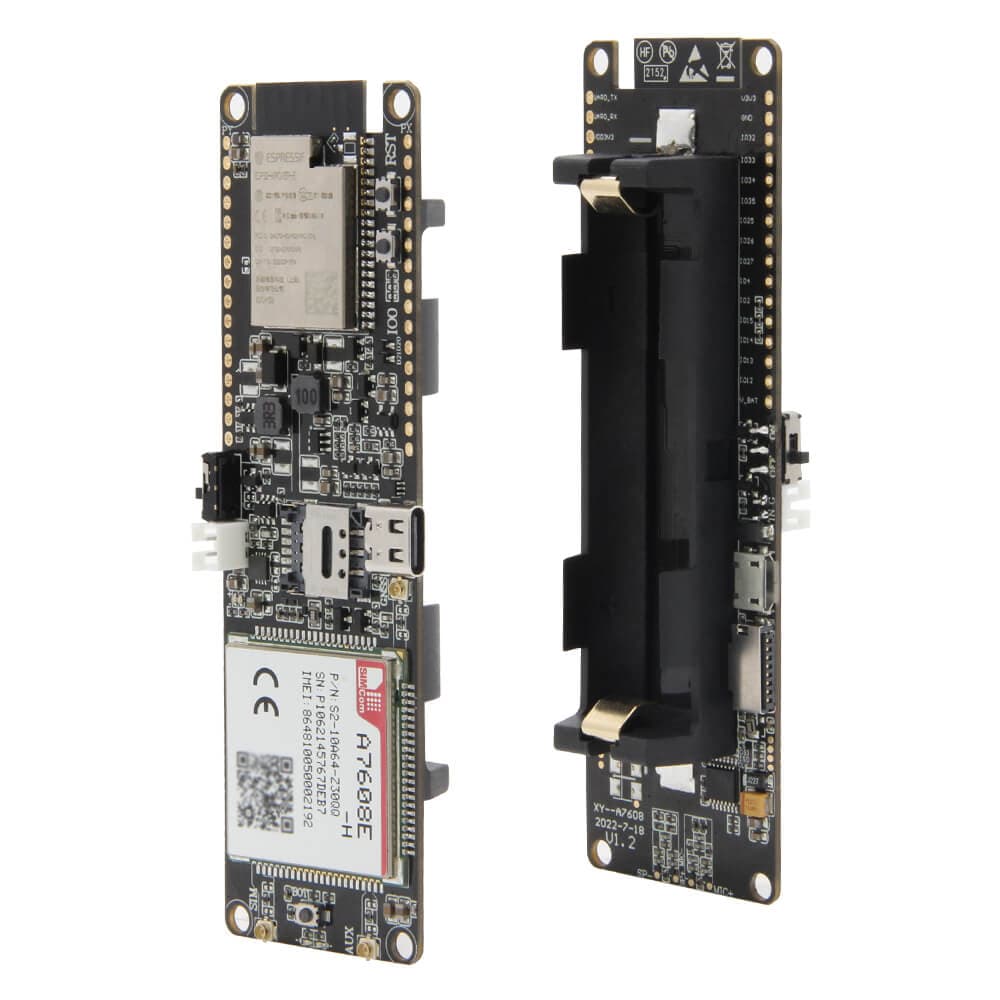

The LILYGO T-A7608E-H is a cellular IoT development board based on the ESP32-WROVER-E MCU (4 MB flash, 8 MB PSRAM) paired with the SIMCOM A7608E-H LTE Cat-1 modem. It supports voice calls, SMS, and LTE data over TDD bands B38/B40/B41 and FDD bands B1/B3/B5/B7/B8/B20, with fallback to UMTS/HSPA+ and GSM/GPRS/EDGE on 900/1800 MHz. An integrated GPS/GNSS module with IPEX antenna connector provides positioning capability. The board features a MicroSD card slot, 18650 battery holder, USB-C programming port via CH9102, and exposes standard I2C, SPI, and UART interfaces for peripheral expansion.

## Where to Buy

- [LILYGO Official Store](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-a7608e-h&ref=openhardware.directory&product=lilygo-t-a7608e-h&source=md-export) — $34.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-a7608e-h&ref=openhardware.directory&product=lilygo-t-a7608e-h&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGo-Modem-Series&ref=openhardware.directory&product=lilygo-t-a7608e-h&source=md-export)

## Tags

`esp32`, `4g`, `lte`, `a7608`, `cellular`, `gps`, `iot`, `lilygo`, `voice`, `sms`, `umts`

## Images

![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/25681be87096.jpg)
![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/ee7889829855.jpg)
![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/f89049da24a1.jpg)
![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/b27eb55a4e58.jpg)
![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/c9d94d002d55.jpg)
![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/3d0704de9751.jpg)
![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/135675b6bf35.jpg)
![LILYGO T-A7608E-H](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-a7608e-h/ea00a16cfd74.jpg)

> **Battery Powered:** 18650

---
