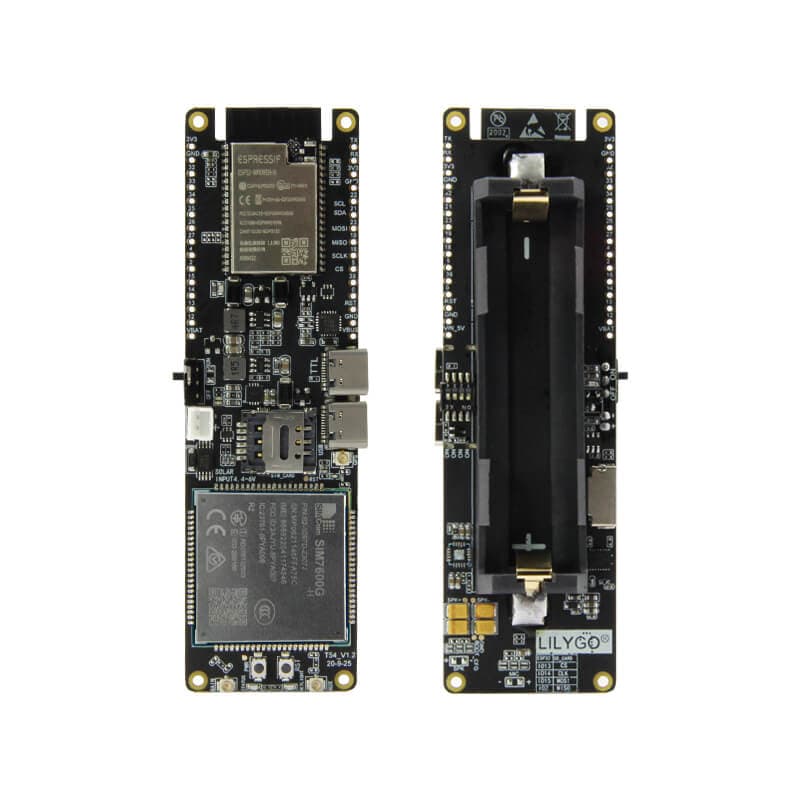

# LILYGO T-SIM7600

> ESP32 development board with SIM7600 LTE Cat-4 modem (150Mbps DL), GPS, 18650 battery holder with solar charging interface, and dual USB-C ports for high-speed cellular IoT applications.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** ESP32
- **Price:** ~$49.78
- **Product Readiness:** developer
- **CPU:** ESP32
- **CPU Architecture:** Xtensa LX6 dual-core
- **RAM:** 520KB SRAM
- **Flash:** 4MB
- **USB:** USB-C (dual)
- **Power:** 5V + Solar
- **Operating Voltage:** 3.3V
- **Antenna:** SMA

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 4.2
- **Cellular:** LTE Cat-4

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, esp-idf, platformio

## Use Cases

- cellular-iot
- remote-monitoring
- asset-tracking
- gps-tracking
- off-grid-connectivity

## Components

- **ESP32** (mcu): Dual-core Xtensa LX6 at up to 240MHz with Wi-Fi and Bluetooth 4.2 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-sim7600&source=md-export)
- **SIM7600** (cellular-modem): SIM7600 series LTE Cat-4 modem with GPS; 150 Mbps DL / 50 Mbps UL; regional variants E-H, G-H, SA-H — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fsimcom.ee%2Fdocuments%2FSIM7600E%2FSIM7600E_Hardware_Design_V1.06.pdf&ref=openhardware.directory&product=lilygo-t-sim7600&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**

## Available Software

- **[Arduino IDE](https://openhardware.directory/r?to=https%3A%2F%2Fwww.arduino.cc%2F&ref=openhardware.directory&product=lilygo-t-sim7600&source=md-export)**

## Description

## Overview

The LILYGO T-SIM7600 combines an ESP32 microcontroller with a SIM7600 series LTE Cat-4 modem delivering up to 150 Mbps download and 50 Mbps upload speeds, making it significantly faster than earlier SIM7600X variants. The board features an 18650 battery holder with an integrated solar charging interface for off-grid deployments, dual USB-C ports (one for programming, one for the modem's network interface), and built-in GPS. Regional variants include the SIM7600E-H (Europe), SIM7600G-H (global), and SIM7600SA-H (South America/Australia), with optional audio decoding modules. Minimum sleep current is just 300µA for battery-powered applications.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-sim7600&ref=openhardware.directory&product=lilygo-t-sim7600&source=md-export) — $49.78

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-sim7600&ref=openhardware.directory&product=lilygo-t-sim7600&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-SIM7600X&ref=openhardware.directory&product=lilygo-t-sim7600&source=md-export)

## Tags

`esp32`, `lte`, `4g`, `sim7600`, `gps`, `solar`, `cellular-iot`

## Images

![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/b3776e83b758.jpg)
![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/851354cf8714.jpg)
![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/7b059a2c2f25.jpg)
![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/376f76133d86.jpg)
![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/9ddea30b1d66.jpg)
![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/5c30753d21d8.jpg)
![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/7dd888433c1b.jpg)
![LILYGO T-SIM7600](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-sim7600/aa15f39401df.png)

> **Battery Powered:** 18650

---
