# Heltec MeshPocket

> Qi2 magnetic wireless charging power bank with integrated Meshtastic mesh networking node, featuring nRF52840 BLE + SX1262 LoRa radio and a 2.13" e-ink display. Available in 5000mAh and 10000mAh configurations.

## Quick Facts

- **Brand:** Heltec
- **Board Type:** power-bank
- **Price:** ~$59
- **Product Readiness:** Consumer Ready
- **CPU:** ARM Cortex-M4F @ 64MHz, FPU, DSP, HW crypto (CryptoCell-310)
- **CPU Architecture:** ARM Cortex-M4F
- **CPU Cores:** 1
- **RAM:** 256KB SRAM
- **Flash:** 1MB
- **USB:** USB-C (charging only)
- **Power:** 5V via USB-C,Qi2 wireless,Li-Po battery
- **Operating Voltage:** 3.3V
- **Operating Temp:** 0°C to +45°C (charging) / -10°C to +45°C (discharging)
- **Dimensions:** 102 x 74.1 x 10.8-17mm
- **Weight:** 140g (5000mAh) / 220g (10000mAh)
- **Battery:** 5000mAh,10000mAh
- **Charging Port:** USB-C
- **Antenna:** Built-in PCB antenna
- **SD Card:** No
- **Display:** 2.13" E-Paper 250x122

## Connectivity

- **Bluetooth:** Bluetooth 5.0
- **Lora:** SX1262 863-870MHz, 902-928MHz

## Use Cases

- lora-mesh-networking
- off-grid-communication
- emergency-communication
- wireless-power-bank
- lora-messenger
- two-way-radio

## Components

- **nRF52840** (mcu): Nordic Semiconductor ARM Cortex-M4F SoC @ 64MHz with 1MB flash, 256KB RAM, Bluetooth 5.0, Thread, Zigbee, and USB 2.0 support. Serves as the main processor for Meshtastic firmware. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.nordicsemi.com%2Fbundle%2Fps_nrf52840%2Fpage%2Fkeyfeatures_html5.html&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)
- **SX1262** (radio): Semtech long-range LoRa transceiver operating at 863-870MHz or 902-928MHz with up to +22dBm output power and 4.2mA receive current. Provides mesh communication range up to 10km. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.semtech.com%2Fproducts%2Fwireless-rf%2Flora-connect%2Fsx1262&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)
- **LCMEN2R13ECC1** (e-ink-driver): 2.13-inch monochrome e-ink display panel providing sunlight-readable output with ultra-low power consumption — only draws power during screen refreshes. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FMeshPocket%2Fschematic%2FLCMEN2R13ECC1.pdf&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)

## Protocols

- **SPI**: SCK: nRF52840 internal, MOSI: nRF52840 internal, MISO: nRF52840 internal
- **UART**: TX: Pogo pin, RX: Pogo pin
- **BLE**

## Accessories

- usb-c-cable
- magnetic-pogo-cable

## Description

## Overview

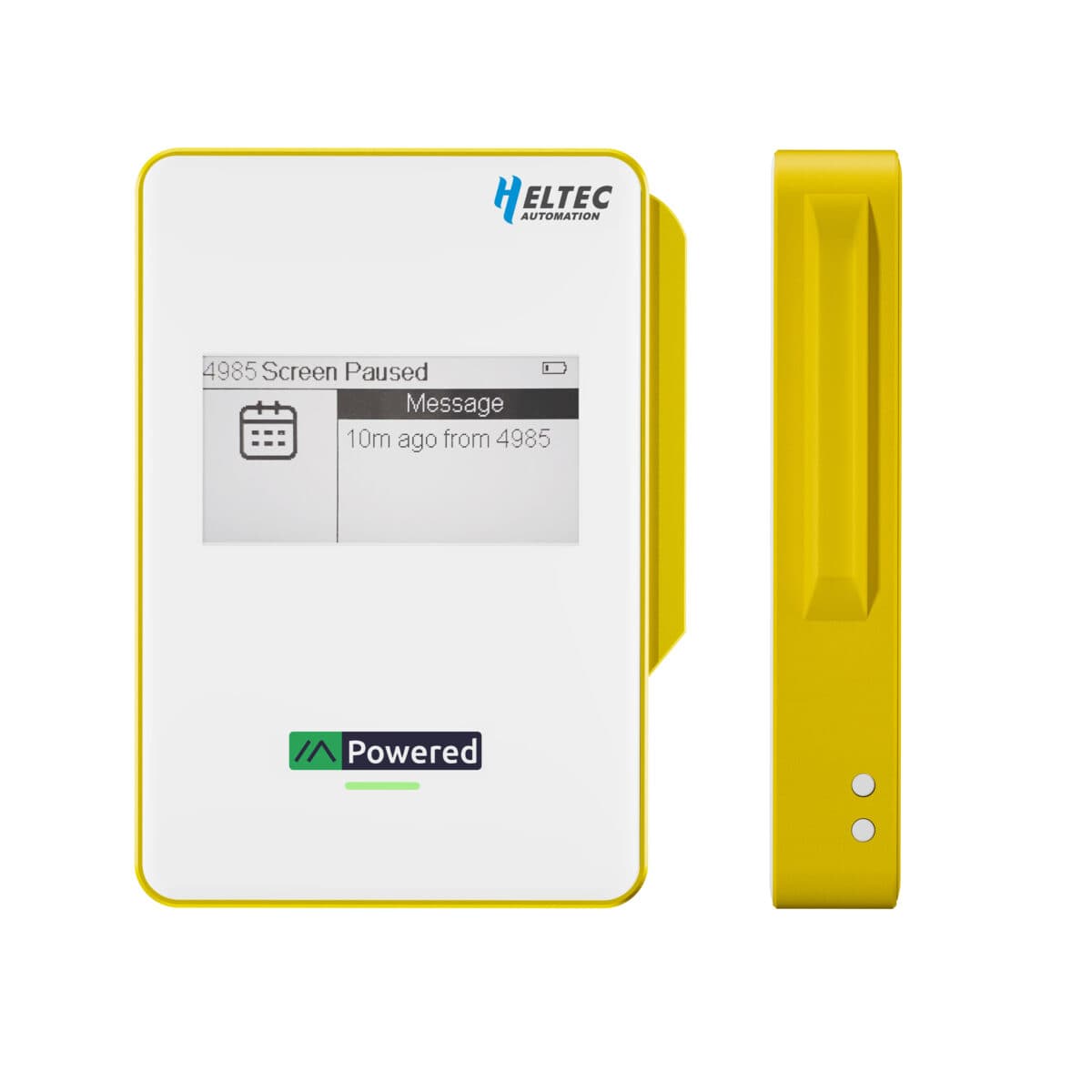

The Heltec MeshPocket is a uniquely designed device that combines a Qi2 magnetic wireless charging power bank with a fully functional Meshtastic mesh communication node. It integrates a Nordic nRF52840 MCU for Bluetooth 5.0 connectivity and a Semtech SX1262 LoRa transceiver capable of reaching up to 10km range, all while serving as an everyday portable charger for your phone and other devices.

The device features a 2.13-inch monochrome e-ink display that provides clear visibility in direct sunlight while consuming virtually zero power between refreshes — a significant advantage over OLED-based mesh nodes. Community testing shows the MeshPocket can operate for up to a week between charges when used primarily for Meshtastic mesh networking, thanks to the ultra-low-power nRF52840 platform and e-ink technology.

MeshPocket ships preloaded with Meshtastic firmware and supports over-the-air updates via the Meshtastic web flasher. For developers, custom firmware can be flashed through the side-mounted magnetic pogo pin interface by entering DFU mode with a double-press of the RST button. The device pairs with your phone via Bluetooth for message composition and GPS location sharing through the Meshtastic app, making it a true plug-and-play off-grid communication solution that you carry as your daily power bank.

Available in two battery capacities (5000mAh at 140g and 10000mAh at 220g) and two colors (Yellow and Grey), the MeshPocket supports simultaneous wireless and wired charging/discharging with comprehensive protection circuitry including overvoltage, overcurrent, short-circuit, and temperature monitoring.

## Where to Buy

- [Heltec Official](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fmeshpocket%2F&ref=openhardware.directory&product=heltec-meshpocket&source=md-export) — 59.00
- [Rokland](https://openhardware.directory/r?to=https%3A%2F%2Fstore.rokland.com%2Fproducts%2Fheltec-meshpocket-qi2-magnetic-charging-power-bank-meshtastic-compatible&ref=openhardware.directory&product=heltec-meshpocket&source=md-export) — 78.97
- [Amazon](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2FHeltec-MeshPocket-Meshtastic-Compatible-Emergency%2Fdp%2FB0F7LD3BQG&ref=openhardware.directory&product=heltec-meshpocket&source=md-export) — 59.00
- [Muzi Works](https://openhardware.directory/r?to=https%3A%2F%2Fmuzi.works%2Fproducts%2Fheltec-meshpocket&ref=openhardware.directory&product=heltec-meshpocket&source=md-export) — 59.00
- [Meshnology](https://openhardware.directory/r?to=https%3A%2F%2Fmeshnology.com%2Fproducts%2Fheltec-meshpocket-magnetic-charging-power-bank-w-meshtastic-lora-antenna&ref=openhardware.directory&product=heltec-meshpocket&source=md-export) — 59.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fmeshpocket%2F&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FHelTecAutomation%2FHeltec_nRF52&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.heltec.org%2Fen%2Fready_to_use%2Fmeshpocket%2Findex.html&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FMeshPocket%2Fdatasheet%2FMeshPocket_1.0.1.pdf&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)
- [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FMeshPocket%2Fschematic%2FMeshPocket_nRF52840%252BSX1262.pdf&ref=openhardware.directory&product=heltec-meshpocket&source=md-export)

## Images

![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/d04253ff99d3.jpg)
![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/e9afce4e7bf2.jpg)
![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/4031e8be7fc7.jpg)
![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/6e3a80fa7688.jpg)
![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/65367a40e1cd.jpg)
![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/28ceb47c3c23.jpg)
![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/0ce9cf2ed30c.jpg)
![Heltec MeshPocket](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-meshpocket/77069a020068.jpg)

> **Battery Powered:** Li-Po

---
