# FaikOut WiFi Aircon Controller

> Open-source ESP32-S3 WiFi controller for Daikin air conditioners with local-only control via MQTT and Home Assistant. Replaces cloud-dependent Daikin WiFi modules with privacy-first, no-internet-required operation.

## Quick Facts

- **Brand:** Andrews & Arnold
- **Board Type:** IoT Controller
- **Price:** ~$42
- **Product Readiness:** consumer
- **CPU:** ESP32-S3-PICO-1 Xtensa LX7 dual-core @ 240MHz
- **CPU Architecture:** Xtensa LX7 dual-core
- **RAM:** 512KB SRAM
- **Flash:** 8MB
- **USB:** USB-C (via test pads)
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **Dimensions:** 45 x 36 mm (snap-off panel: 70 x 70 mm)

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0

## Open Source

- **Status:** fully-open
- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes
- **License:** GPL-3.0

## Compatible Firmware

Faikin, esp-idf

## Use Cases

- hvac-control
- smart-home
- home-automation
- smart-switch

## Components

- **ESP32-S3-PICO-1** (mcu): Espressif ESP32-S3-PICO-1 system-in-package with dual-core Xtensa LX7 at 240MHz, integrated 8MB flash, WiFi 802.11 b/g/n, and Bluetooth LE 5.0 in a compact 7x7mm LGA package. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3-pico-1_pico-1-u_datasheet_en.pdf&ref=openhardware.directory&product=faikout-wifi-aircon-controller&source=md-export)

## Protocols

- **MQTT**
- **UART**
- **Daikin S21**
- **HTTP**

## Available Software

- **[Faikin Firmware](https://openhardware.directory/r?to=https%3A%2F%2Fcodeberg.org%2FRevK%2FESP32-Faikout&ref=openhardware.directory&product=faikout-wifi-aircon-controller&source=md-export)**: Custom ESP-IDF firmware with MQTT, web UI, BLE sensor support, and automatic OTA updates

## Description

## Overview

The FaikOut is an open-source WiFi controller board designed to replace Daikin's cloud-dependent WiFi modules (BRP069C4x series) with a fully local, privacy-respecting alternative. Built around the ESP32-S3-PICO-1 system-in-package, it plugs directly into the S21 connector found inside compatible Daikin air conditioning units, drawing power from the air conditioner itself with no external power supply needed. The board supports Daikin units using S21, X50A, X35, and X403 protocols, automatically detecting which protocol is in use.

Control is handled entirely over the local network through MQTT, making it a natural fit for Home Assistant-based smart home setups. A built-in web interface provides basic controls for users who prefer browser-based access without needing any app or account. The device also supports BLE temperature sensors such as the BlueCoinT and Telink-based sensors, enabling remote room temperature readings to feed back into the air conditioner's control loop for more accurate climate management.

The entire project — firmware, PCB design (KiCad), and 3D-printed case files — is released under GPL-3.0, and the creator explicitly permits anyone to manufacture and sell the board with trademarks removed. The firmware is built on ESP-IDF and includes automatic over-the-air updates. With over 3,200 commits and an active community, the FaikOut represents one of the most mature open-source HVAC control projects available, backed by Andrews & Arnold Ltd, a well-established UK internet service provider.

## Where to Buy

- [Tindie](https://openhardware.directory/r?to=https%3A%2F%2Fwww.tindie.com%2Fproducts%2Frevk%2Ffaikout-alternative-wifi-air-con-controller%2F&ref=openhardware.directory&product=faikout-wifi-aircon-controller&source=md-export) — $42.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.tindie.com%2Fproducts%2Frevk%2Ffaikout-alternative-wifi-air-con-controller%2F&ref=openhardware.directory&product=faikout-wifi-aircon-controller&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Frevk%2FESP32-Faikin&ref=openhardware.directory&product=faikout-wifi-aircon-controller&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fcodeberg.org%2FRevK%2FESP32-Faikout%2Fwiki&ref=openhardware.directory&product=faikout-wifi-aircon-controller&source=md-export)
- [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fcodeberg.org%2FRevK%2FESP32-Faikout%2Fsrc%2Fbranch%2Fmain%2FKiCad&ref=openhardware.directory&product=faikout-wifi-aircon-controller&source=md-export)

## Tags

`daikin`, `hvac`, `mqtt`, `home-assistant`, `wifi-controller`, `aircon`, `local-control`, `esp32-s3`, `open-source`, `ble-sensor`, `s21-protocol`, `climate-control`

## Images

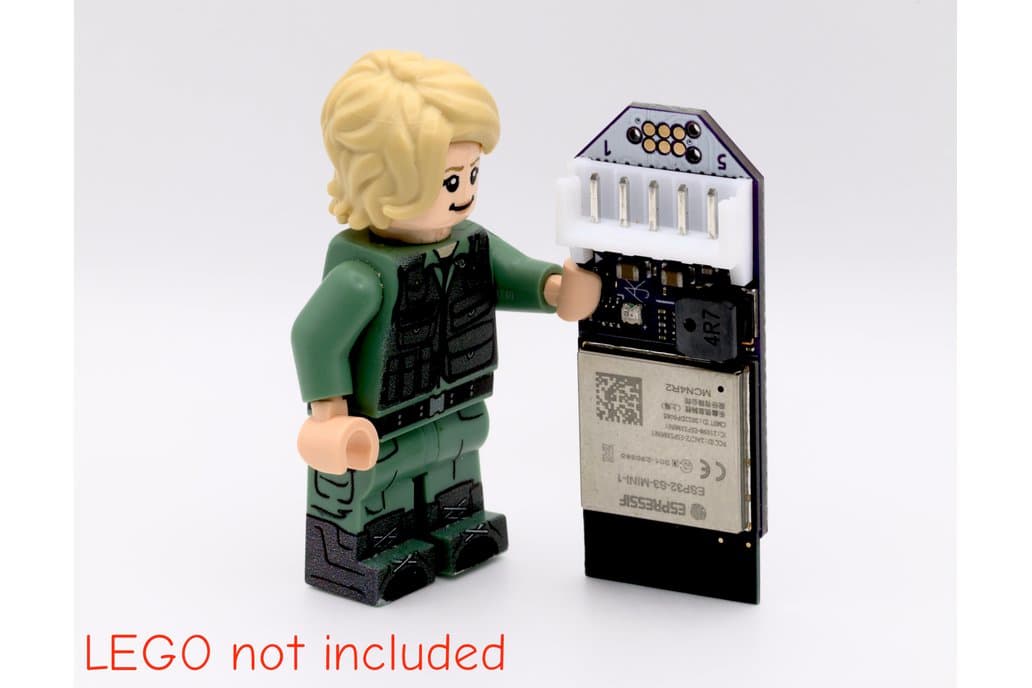

![FaikOut WiFi Aircon Controller](https://nbg1.your-objectstorage.com/openhardware-directory/entities/faikout-wifi-aircon-controller/5400fe5be52c.jpg)

> **White Label:** true

---
