# DFRobot FireBeetle 2 ESP32-S3 (N4)

> ESP32-S3 dual-core IoT microcontroller with AI acceleration, WiFi 802.11 b/g/n, BLE 5.0, 26 GPIO pins, 20 ADC channels, USB 2.0 OTG, GDI display interface, lithium battery charging, and stamp-hole PCB design in a 25.4x60mm form factor.

## Quick Facts

- **Brand:** DFRobot
- **Board Type:** dev-board
- **Price:** ~$9.9
- **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU, AI vector extensions, HW crypto (AES/SHA/RSA)
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **Flash:** 4MB
- **USB:** USB-C (OTG)
- **Power:** 5V + LiPo
- **Operating Voltage:** 3.3V
- **Dimensions:** 25.4 x 60mm
- **Weight:** 23g
- **Antenna:** Built-in PCB antenna

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0

## Use Cases

- iot
- smart-home
- environmental-monitoring
- battery-powered-sensor-node
- educational-platform
- custom-ui-development

## Components

- **ESP32-S3-WROOM-1-N4** (mcu): Espressif ESP32-S3-WROOM-1-N4 with Xtensa LX7 dual-core at 240MHz, 512KB SRAM, 4MB flash, WiFi 802.11 b/g/n, BLE 5.0, and AI vector extensions. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3-wroom-1_wroom-1u_datasheet_en.pdf&ref=openhardware.directory&product=dfrobot-firebeetle-2-esp32-s3-n4&source=md-export)

## Description

## Overview

The DFRobot FireBeetle 2 ESP32-S3 (N4) (SKU: DFR1145) is a compact IoT development board featuring the ESP32-S3-WROOM-1-N4 module. Powered by the Xtensa LX7 dual-core processor at 240MHz with hardware AI acceleration, it offers a significant upgrade over the ESP32-E variant with native USB 2.0 OTG support, more GPIO pins, and BLE 5.0.

The board exposes 26 digital I/O pins with extensive peripheral multiplexing: 20 ADC channels across two 12-bit SAR ADCs, 3 UARTs, 2 SPI, 2 I2C, 2 I2S, 8 LED PWM channels, and 5+5 IR transceiver channels. The USB 2.0 OTG full-speed interface via USB-C enables the board to act as both USB host and device, opening possibilities for HID devices, USB MIDI, and other USB-native applications. A GDI display interface connector allows quick attachment of compatible displays without wiring.

Power management includes integrated lithium battery charging via the PH2.0 connector (3.7V Li-ion), 5V USB-C input, and a hardware power on/off switch. The stamp-hole edge pads allow direct soldering onto custom PCBs for production deployment. At $9.90, it provides a cost-effective ESP32-S3 platform for IoT, AIoT, and general embedded projects where a camera is not needed.

## Where to Buy

- [DFRobot](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2836.html&ref=openhardware.directory&product=dfrobot-firebeetle-2-esp32-s3-n4&source=md-export) — $9.90

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2836.html&ref=openhardware.directory&product=dfrobot-firebeetle-2-esp32-s3-n4&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.dfrobot.com%2FSKU_DFR1145_FireBeetle_2_Board_ESP32_S3&ref=openhardware.directory&product=dfrobot-firebeetle-2-esp32-s3-n4&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3-wroom-1_wroom-1u_datasheet_en.pdf&ref=openhardware.directory&product=dfrobot-firebeetle-2-esp32-s3-n4&source=md-export)

## Images

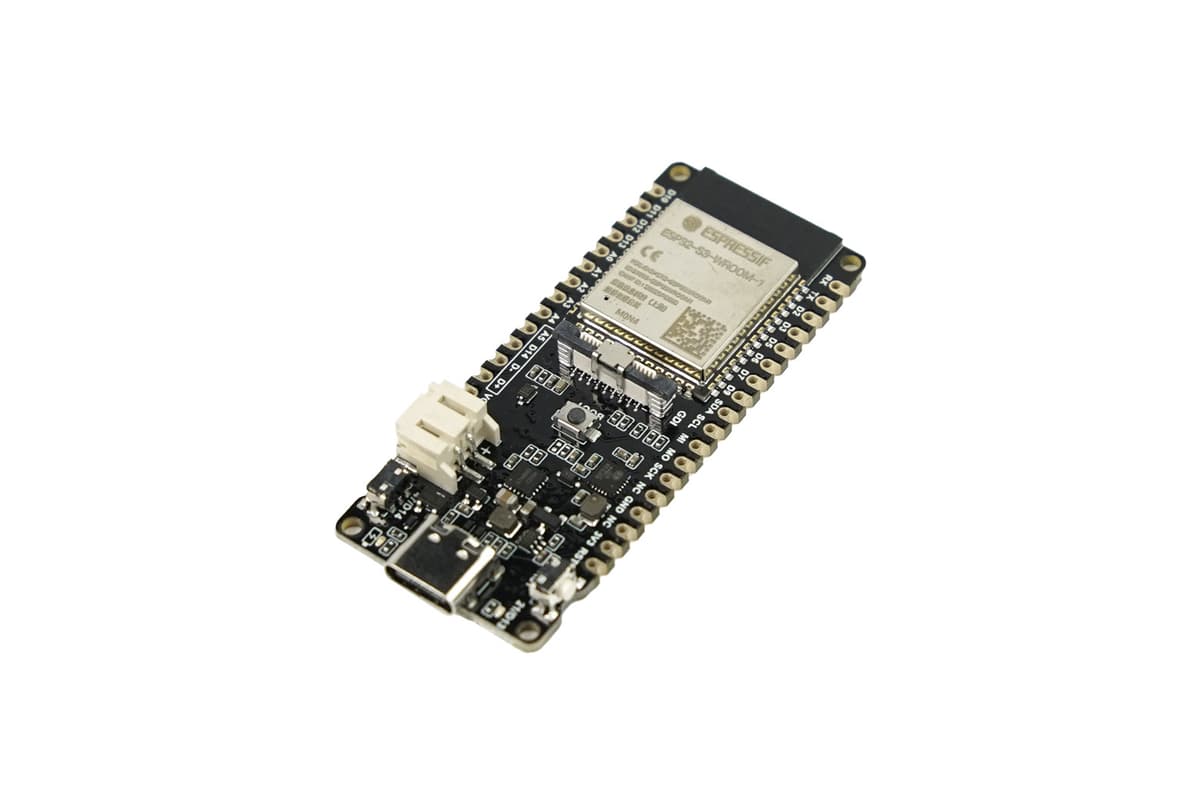

![DFRobot FireBeetle 2 ESP32-S3 (N4)](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-firebeetle-2-esp32-s3-n4/3d6a64212353.jpg)
