Sonoff Zigbee Bridge Pro

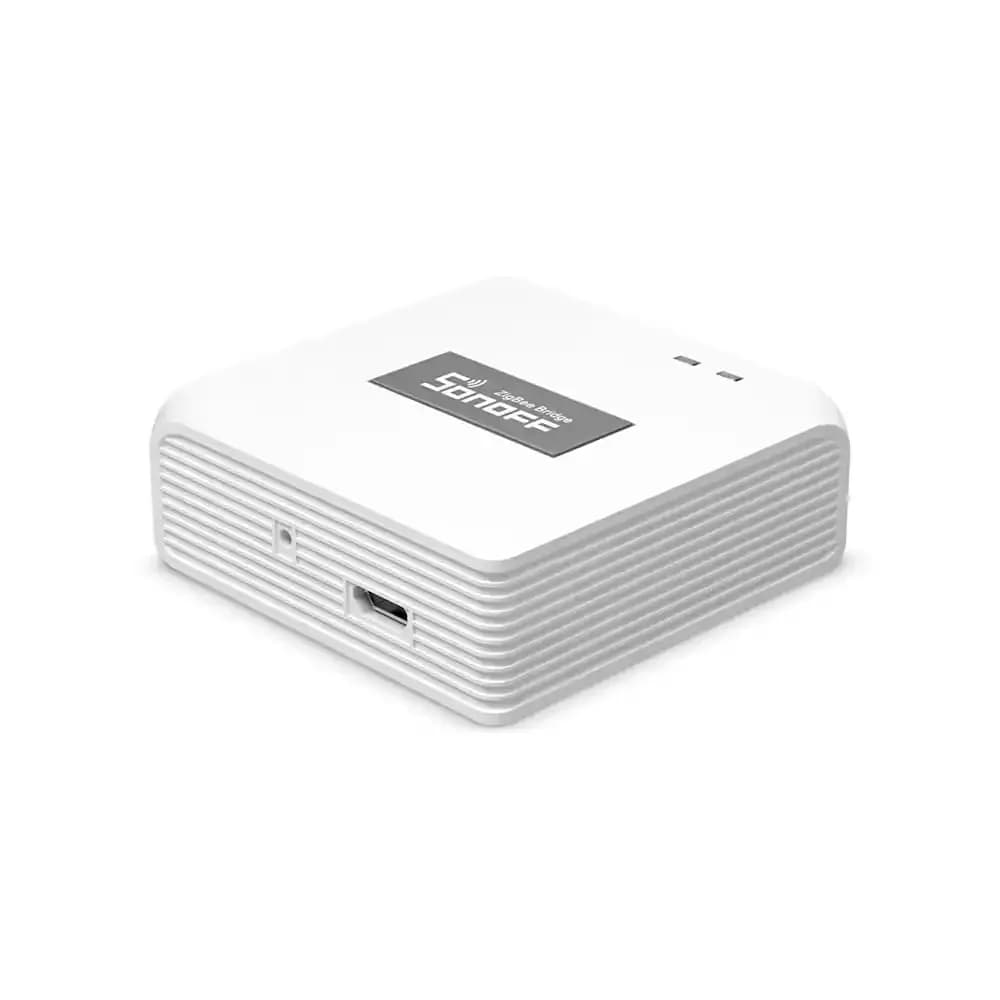

Sonoff Zigbee Bridge Pro (ZBBridge-P)

The Sonoff Zigbee Bridge Pro is a WiFi-to-Zigbee gateway based on the ESP32 paired with a Texas Instruments CC2652P Zigbee coordinator. When flashed with Tasmota, it becomes a fully local Zigbee bridge that connects Zigbee sensors and actuators to your MQTT broker.

Key Features

• ESP32 dual-core at 240MHz for WiFi connectivity
• CC2652P Zigbee 3.0 coordinator with +20dBm TX power
• Supports up to 128 Zigbee devices directly
• USB-C power input
• Built-in antenna for both WiFi and Zigbee
• Physical reset button and pairing button

Tasmota Zigbee Bridge

With Tasmota, the Bridge Pro acts as a transparent Zigbee-to-MQTT bridge:

• Pair Zigbee devices directly from the Tasmota web UI
• All device data published to MQTT topics
• Home Assistant auto-discovery for paired devices
• Zigbee binding and group management
• Support for Zigbee sensors (temperature, humidity, motion, door/window)
• Support for Zigbee actuators (plugs, lights, switches)

Supported Zigbee Devices

• IKEA TRÅDFRI bulbs, plugs, and remotes
• Aqara/Xiaomi sensors (temperature, motion, door, water leak)
• Sonoff SNZB series (button, motion, door, temperature)
• Tuya Zigbee devices
• Philips Hue bulbs (basic control)
• And hundreds more Zigbee 3.0 compliant devices

Flashing Guide

1. Open the case (clips, no screws)
2. Connect FTDI to serial header (3.3V, TX, RX, GND)
3. Flash tasmota32-zbbrdgpro.bin
4. The CC2652P coordinator firmware may also need updating via Tasmota
