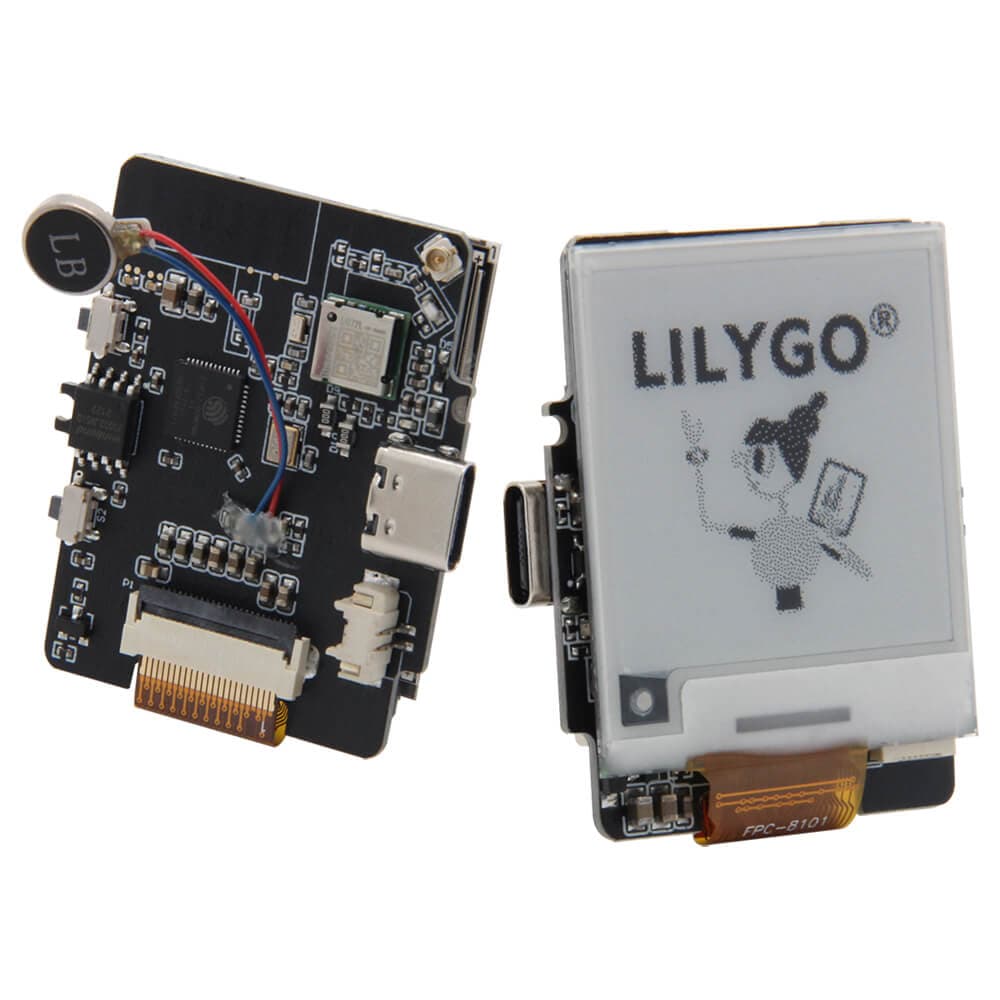

LILYGO T-Wrist E-Paper
LILYGO T-Wrist E-Paper is an ESP32-based wearable development board with a 1.54-inch 200×200 e-paper display, vibration motor, optional GPS (LG77 GNSS), WiFi, Bluetooth 4.2, and 3D-printable watch shell.
$12.86
Tap any value to browse matching devices
Specifications
Components
Espressif ESP32-WROOM-32 module with dual-core Xtensa LX6 at 240MHz, integrated WiFi 802.11 b/g/n and Bluetooth 4.2.
Bus Interfaces
Overview
The LILYGO T-Wrist E-Paper is a compact wearable development board built around the ESP32 microcontroller. It features a 1.54-inch SPI e-paper display with 200×200 pixel resolution and a 2-second full refresh time. An integrated vibrating DC motor enables haptic feedback for notifications. WiFi and Bluetooth 4.2 provide wireless connectivity. An optional LG77 GNSS module variant adds GPS, GLONASS, and BeiDou positioning. The board exposes UART, SPI, I2C, CAN, I2S, and SDIO buses, includes battery power detection, a reset button, and one user button. No housing is included, but 3D-printable shell files are available on the GitHub repository. A T-U2T USB-to-serial adapter is sold separately for programming without a built-in USB bridge.
Use Cases
5smart-watch
Wearable
Body-worn computing devices including smartwatches, fitness bands, and health monitors.
Fitness Tracker
Wearable device that counts steps, monitors activity, and tracks health metrics using motion sensors.
GPS Tracking
Location tracking and navigation using GNSS satellite receivers.
E-Reader
Electronic book reader and document viewer with low-power e-paper display for comfortable long-form reading.
