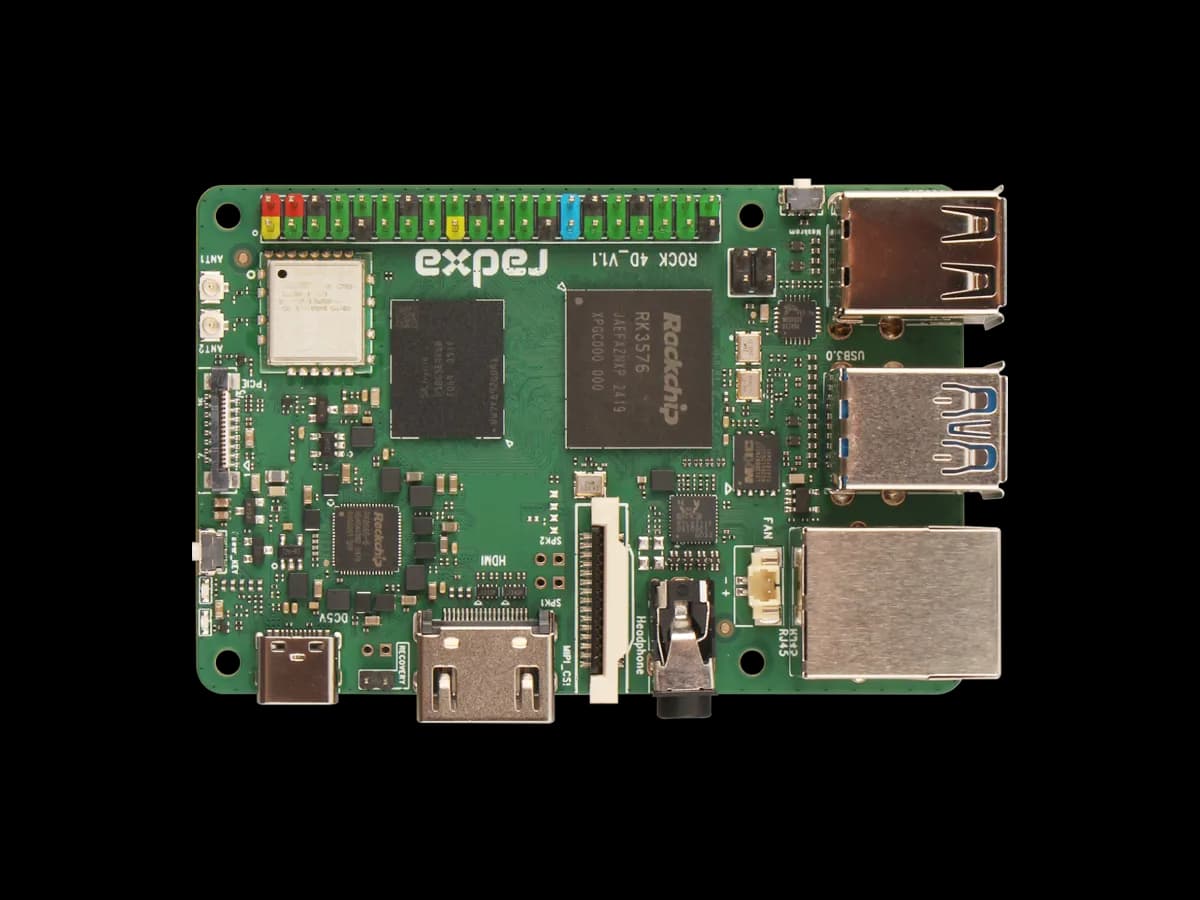

# Radxa Rock 4D

> Mid-range Rockchip RK3576 SBC from Radxa with up to 8GB LPDDR4X, NVMe M.2, WiFi 6, Gigabit Ethernet, and USB 3.0 — a capable Linux board in a compact footprint.

## Quick Facts

- **Brand:** Radxa
- **Board Type:** linux-sbc
- **Price:** ~$30
- **Product Readiness:** consumer
- **CPU:** Rockchip RK3576
- **CPU Architecture:** ARM Cortex-A72 + Cortex-A53
- **CPU Cores:** 8
- **RAM:** 4GB / 8GB LPDDR4X
- **Flash:** eMMC socket (optional)
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** WiFi 6 (802.11ax)
- **Bluetooth:** BLE 5.0
- **Ethernet:** Gigabit (1 GbE)

## Open Source

- **Firmware:** No
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

armbian

## Use Cases

- edge-ai
- desktop
- iot

## Description

## Overview

The Radxa Rock 4D is a mid-range single-board computer built on the Rockchip RK3576 octa-core SoC (four Cortex-A72 + four Cortex-A53 cores) with an integrated Mali-G52 GPU and a 6 TOPS NPU for AI workloads. Available with 4 GB or 8 GB of LPDDR4X RAM, the board targets developers and makers who need solid performance without the premium price of RK3588-based designs.

Storage is flexible: an eMMC socket provides fast internal flash, while an M.2 M-key slot with NVMe support enables high-speed SSD connectivity. A UFS-ready option is also available. Connectivity includes Gigabit Ethernet, WiFi 6, Bluetooth 5.0, USB 3.0, and a USB-C port. A 40-pin GPIO header ensures compatibility with the broader HAT accessory ecosystem.

Armbian offers both stable (6.1) and edge (6.19) kernel images for the Rock 4D in Desktop and Minimal/IoT flavours. The board is well-suited for tasks such as edge inference, media streaming, and general-purpose Linux development at a competitive price point.

## Where to Buy

- [Arace Tech](https://openhardware.directory/r?to=https%3A%2F%2Farace.tech%2Fproducts%2Fradxa-rock-4d&ref=openhardware.directory&product=radxa-rock-4d&source=md-export) — $30.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fradxa.com%2Fproducts%2Frock4%2F4d&ref=openhardware.directory&product=radxa-rock-4d&source=md-export)
- [armbian](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Fradxa-rock-4d%2F&ref=openhardware.directory&product=radxa-rock-4d&source=md-export)

## Tags

`radxa`, `rock4d`, `rk3576`, `sbc`, `linux`, `armbian`, `nvme`, `wifi6`

## Images

![Radxa Rock 4D](https://nbg1.your-objectstorage.com/openhardware-directory/entities/radxa-rock-4d/825ae411a272.webp)
![Radxa Rock 4D](https://nbg1.your-objectstorage.com/openhardware-directory/entities/radxa-rock-4d/4e20ba5ae93d.webp)

---
[View full device page](https://openhardware.directory/devices/radxa-rock-4d)
