# Orange Pi One

> The Orange Pi One is a compact and affordable single-board computer powered by the Allwinner H3 quad-core Cortex-A7 SoC with 512MB DDR3 RAM, offering 100Mbps Ethernet and a full Linux experience at an entry-level price point.

## Quick Facts

- **Brand:** Xunlong
- **Price:** ~$12
- **CPU:** Allwinner H3 — 4x Cortex-A7 @ 1.6GHz, Mali-400 MP2 GPU
- **CPU Architecture:** ARM Cortex-A7
- **CPU Cores:** 4
- **RAM:** 512MB DDR3
- **Flash:** none (microSD only)
- **USB:** 1x USB 2.0 Host, 1x USB OTG
- **Power:** DC 5V/2A barrel jack
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 10/100 Mbps Ethernet

## Use Cases

- iot-gateway
- education

## Components

- **Allwinner H3** (soc): Quad-core Cortex-A7 SoC with Mali-400 MP2 GPU, popular in affordable Linux SBCs — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Flinux-sunxi.org%2FH3&ref=openhardware.directory&product=orange-pi-one&source=md-export)

## Description

## Overview

The Orange Pi One is one of Xunlong's most affordable single-board computers, designed for makers who need a functional Linux board at minimal cost. It is built around the Allwinner H3 SoC, a quad-core Cortex-A7 processor clocked at up to 1.6GHz with an integrated Mali-400 MP2 GPU. The board ships with 512MB DDR3 RAM — sufficient for headless server tasks, lightweight IoT applications, and learning Linux on real hardware.

Storage is handled entirely by a microSD card slot; there is no onboard eMMC. Networking is provided by a 100Mbps (Fast Ethernet) port, with no wireless networking built in. The board includes a single USB 2.0 host port, a USB OTG port, HDMI output, a 3.5mm audio jack, a CSI camera connector, and a 40-pin GPIO header compatible with Raspberry Pi HATs.

Armbian fully supports the Orange Pi One with kernel 6.12 images, desktop (XFCE) and minimal/IoT variants, making it a well-maintained platform despite its age. Its ultra-low cost, combined with solid Armbian support, makes the Orange Pi One an excellent entry point for embedded Linux experimentation, lightweight home servers, and educational projects.

## Where to Buy

- [AliExpress](https://openhardware.directory/r?to=https%3A%2F%2Fwww.aliexpress.com%2Fstore%2F1553371&ref=openhardware.directory&product=orange-pi-one&source=md-export) — 12.00

## Resources

- [product](https://openhardware.directory/r?to=http%3A%2F%2Fwww.orangepi.org%2Fhtml%2FhardWare%2FcomputerAndMicrocontrollers%2Fdetails%2FOrange-Pi-One.html&ref=openhardware.directory&product=orange-pi-one&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Forange-pi-one%2F&ref=openhardware.directory&product=orange-pi-one&source=md-export)

## Tags

`sbc`, `linux`, `allwinner`, `h3`, `arm32`, `budget`, `armbian`, `gpio`

## Images

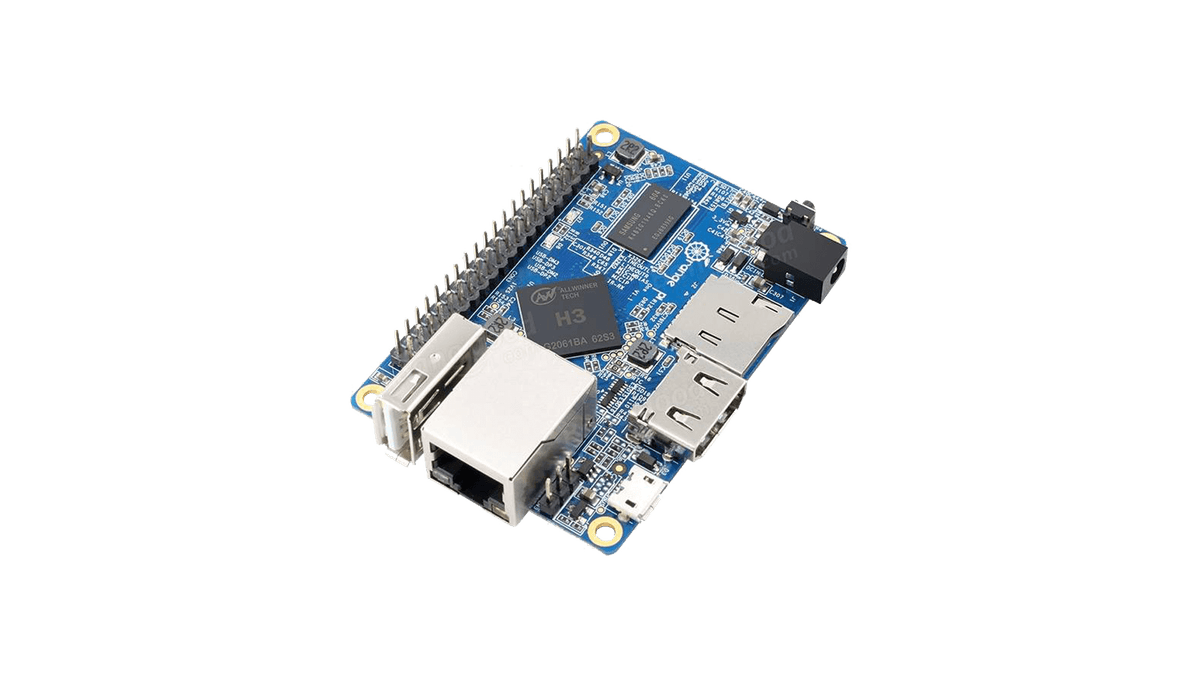

![Orange Pi One](https://nbg1.your-objectstorage.com/openhardware-directory/entities/orange-pi-one/da5b7deccc96.png)

---
