# Orange Pi 5

> The Orange Pi 5 is a high-performance single-board computer powered by the Rockchip RK3588S octa-core SoC, offering up to 16GB LPDDR4X RAM with USB 3.0, PCIe M.2, and 4K video output — ideal for demanding embedded Linux applications.

## Quick Facts

- **Brand:** Xunlong
- **Price:** ~$60
- **CPU:** Rockchip RK3588S — 4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz
- **CPU Architecture:** ARM Cortex-A76 + A55
- **CPU Cores:** 8
- **RAM:** 4GB / 8GB / 16GB LPDDR4X
- **Flash:** eMMC module + M.2 slot (NVMe/SATA)
- **USB:** 1x USB 3.0, 2x USB 2.0, 1x USB-C
- **Power:** USB-C Power Delivery
- **Operating Voltage:** 3.3V
- **Antenna:** M.2 wireless module slot (optional)
- **SD Card:** microSD

## Connectivity

- **Wifi:** Optional via M.2 module (AP6275P: 802.11 a/b/g/n/ac/ax)
- **Bluetooth:** Optional via M.2 module (BT 5.0)
- **Ethernet:** Gigabit Ethernet

## Use Cases

- desktop-computing
- media-center
- ai-ml
- nas

## Components

- **RK3588S** (soc): Octa-core SoC with 4x Cortex-A76 + 4x Cortex-A55, Mali-G610 GPU, 6 TOPS NPU — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK35_Series%2F2022%2F0926%2F1660.html&ref=openhardware.directory&product=orange-pi-5&source=md-export)

## Description

## Overview

The Orange Pi 5 is a compact yet powerful single-board computer from Xunlong, built around the Rockchip RK3588S SoC. This octa-core processor features four Cortex-A76 performance cores and four Cortex-A55 efficiency cores clocked up to 2.4GHz, paired with a Mali-G610 GPU and a 6 TOPS neural processing unit. It is available in 4GB, 8GB, and 16GB LPDDR4X configurations, making it suitable for a wide range of compute-intensive workloads.

Storage options are flexible: a microSD slot handles the primary OS, while an onboard eMMC module and an M.2 slot (supporting both NVMe and SATA SSDs) allow for faster and larger storage configurations. Connectivity includes a Gigabit Ethernet port capable of near-wire-speed throughput, USB 3.0 and USB 2.0 ports, and a USB-C port for both data and power delivery. Optional Wi-Fi and Bluetooth are available via an M.2 wireless module (e.g., AP6275P).

The board runs Armbian (Ubuntu and Debian variants) with hardware-accelerated 4K video playback supported in Chromium and Kodi under GBM/Wayland. Its combination of raw CPU performance, NPU, and I/O density makes it a popular choice for AI inference at the edge, media centers, desktop replacement, and network-attached storage builds.

## Where to Buy

- [AliExpress](https://openhardware.directory/r?to=https%3A%2F%2Fwww.aliexpress.com%2Fstore%2F1553371&ref=openhardware.directory&product=orange-pi-5&source=md-export) — 60.00

## Resources

- [product](https://openhardware.directory/r?to=http%3A%2F%2Fwww.orangepi.org%2Fhtml%2FhardWare%2FcomputerAndMicrocontrollers%2Fdetails%2FOrange-Pi-5.html&ref=openhardware.directory&product=orange-pi-5&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Forangepi-5%2F&ref=openhardware.directory&product=orange-pi-5&source=md-export)

## Tags

`sbc`, `linux`, `rockchip`, `rk3588s`, `arm64`, `4k`, `npu`, `nvme`, `armbian`

## Images

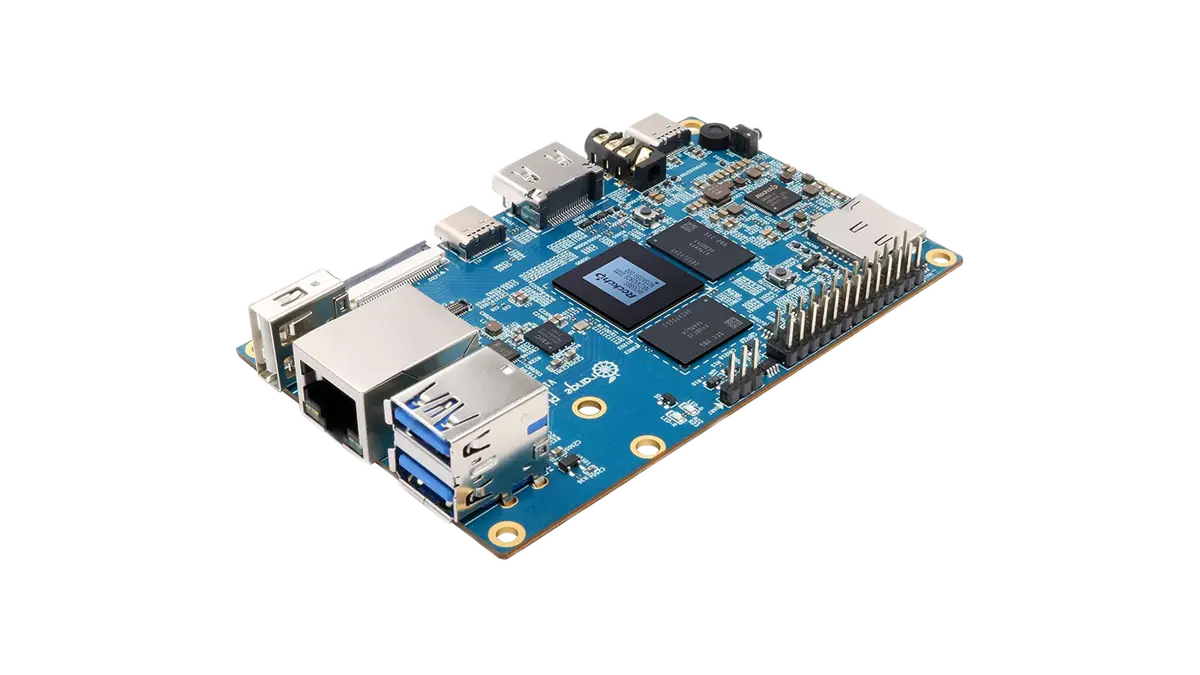

![Orange Pi 5](https://nbg1.your-objectstorage.com/openhardware-directory/entities/orange-pi-5/7d8b7be84535.png)

---
