Xunlong

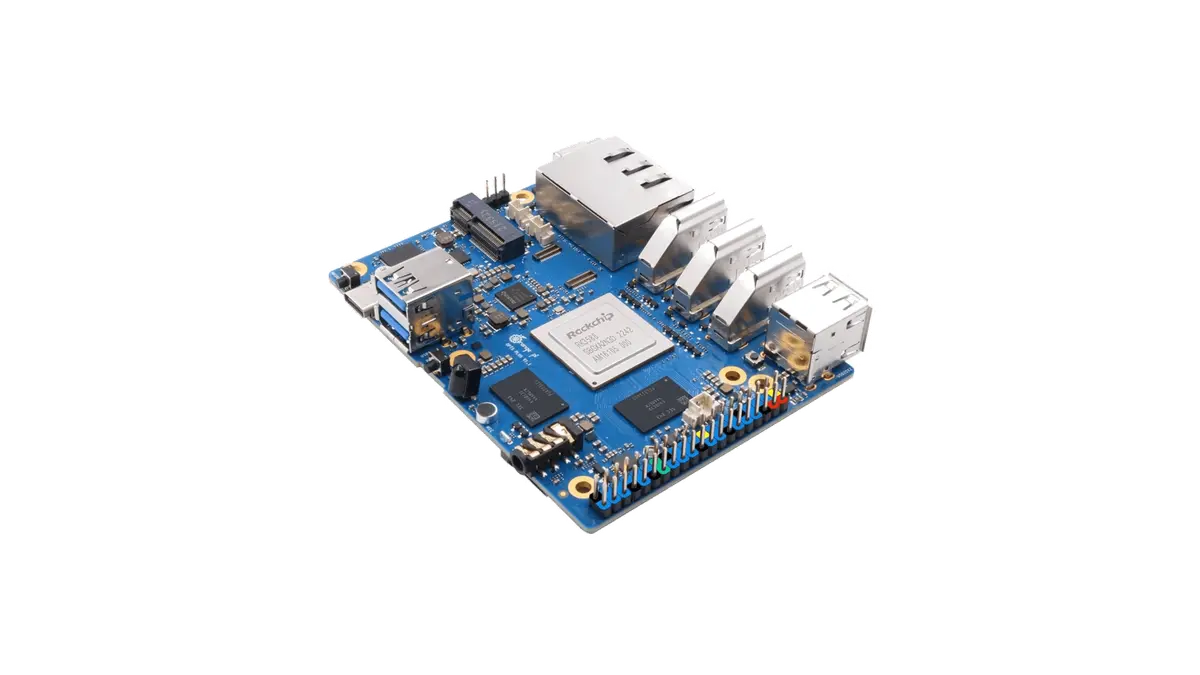

Orange Pi 5 Plus

Name: Orange Pi 5 Plus
Brand: Xunlong
Price: 90 USD
Availability: InStock

The Orange Pi 5 Plus is an expanded version of the Orange Pi 5, featuring the full Rockchip RK3588 SoC with up to 32GB LPDDR4X RAM, dual Gigabit Ethernet, Wi-Fi 6, an M.2 NVMe slot, and two HDMI ports — designed for high-end desktop and server workloads.

Starting from

$90.00

Product Page

Use Cases

Desktop Computing Media Center Ai Ml nas server

#sbc #linux #rockchip #rk3588 #arm64 #4k #8k #npu #nvme #wifi6 #dual-ethernet #armbian

Tap any value to browse matching devices

Specifications

CPURockchip RK3588 — 4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz

ArchitectureARM Cortex-A76 + A55

CPU Cores8

Clock Speed2.4GHz

RAM4GB / 8GB / 16GB / 32GB LPDDR4X

FlasheMMC module + M.2 NVMe slot

GPIO Level3.3V

USB2x USB 3.0, 2x USB 2.0, 1x USB-C

Power InputUSB-C Power Delivery

WiFiWi-Fi 6 (802.11 a/b/g/n/ac/ax)

BluetoothBLE 5.0

Ethernet2x Gigabit Ethernet

AntennaBuilt-in PCB antenna (Wi-Fi 6 + BT 5.0)

StoragemicroSD

Components

Rockchip RK3588SocDatasheet

Octa-core SoC with 4x Cortex-A76 + 4x Cortex-A55, Mali-G610 GPU, 6 TOPS NPU, dual PCIe 3.0

Overview

The Orange Pi 5 Plus is the flagship single-board computer from Xunlong, built on the full Rockchip RK3588 octa-core SoC. Unlike the RK3588S variant used in the Orange Pi 5, the RK3588 adds dual PCIe 3.0 lanes, enabling a dedicated M.2 NVMe slot alongside expanded I/O. The board ships in 4GB, 8GB, 16GB, and 32GB LPDDR4X configurations — the 32GB option being rare among maker SBCs.

Connectivity is notably enhanced: two independent Gigabit Ethernet ports provide network redundancy or link aggregation for NAS and server use cases. The onboard Wi-Fi 6 (802.11ax) and Bluetooth 5.0 eliminate the need for an external wireless module. Display output supports dual HDMI 2.1 up to 8K, alongside a DisplayPort output. Storage options include the M.2 NVMe slot, eMMC module socket, microSD card, and SPI flash for bootloader storage.

Armbian provides standard-level support for the Orange Pi 5 Plus with Ubuntu Noble and Debian Trixie images, full hardware video acceleration in Kodi and Chromium via GBM/Wayland, and kernel 6.1 and 6.12 options. Its combination of high RAM ceiling, dual Ethernet, NVMe, and Wi-Fi 6 makes it an exceptional platform for home servers, edge AI nodes, and advanced desktop builds.

Use Cases

Desktop Computing

Use as a full desktop computer with monitor, keyboard, and mouse. Runs a general-purpose operating system like Linux.

View

Media Center

Running a media center OS (Kodi, Plex, Jellyfin) to stream, transcode, and play 4K video content on a TV or display.

View

AI / Machine Learning

Edge AI inference, TinyML, TensorFlow Lite, and on-device machine learning applications.

View

nas

View

server

View

Resources

Wiki / Documentation

Technical documentation

Product Page

Official manufacturer page

Where to Buy

AliExpress

90.00
