# Orange Pi 4 LTS

> The Orange Pi 4 LTS is a capable single-board computer based on the Rockchip RK3399 hexa-core SoC, featuring 4GB LPDDR4 RAM, 16GB eMMC, integrated Wi-Fi and Bluetooth, and Gigabit Ethernet — a solid long-term support platform for Linux development.

## Quick Facts

- **Brand:** Xunlong
- **Price:** ~$55
- **CPU:** Rockchip RK3399 — 2x Cortex-A72 @ 1.8GHz + 4x Cortex-A53 @ 1.4GHz
- **CPU Architecture:** ARM Cortex-A72 + A53
- **CPU Cores:** 6
- **RAM:** 4GB LPDDR4
- **Flash:** 16GB eMMC
- **USB:** 1x USB 3.0, 2x USB 2.0, 1x USB-C
- **Power:** USB-C
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna (Wi-Fi + BT)
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n/ac
- **Bluetooth:** BLE 5.0
- **Ethernet:** Gigabit Ethernet

## Use Cases

- desktop-computing
- iot-gateway
- nas

## Components

- **RK3399** (soc): Hexa-core SoC with 2x Cortex-A72 + 4x Cortex-A53, Mali-T860 GPU — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK33_Series%2F2016%2F0419%2F758.html&ref=openhardware.directory&product=orange-pi-4-lts&source=md-export)

## Description

## Overview

The Orange Pi 4 LTS is Xunlong's long-term support revision of the Orange Pi 4, powered by the Rockchip RK3399 hexa-core SoC. The RK3399 pairs two high-performance Cortex-A72 cores with four Cortex-A53 efficiency cores, delivering strong single-threaded and multi-threaded performance for a maker board of its class. The board ships with 4GB LPDDR4 RAM and 16GB eMMC storage as standard, providing a complete out-of-the-box storage solution alongside microSD expansion.

Connectivity is well-rounded: a Gigabit Ethernet port achieves near-wire-speed throughput (~960 Mbps), and the integrated Wi-Fi and Bluetooth module handles wireless connectivity without requiring an add-on card. USB 3.0 and USB 2.0 ports cover peripheral attachment, while a USB-C port serves as the power input. Additional interfaces include I2C, SPI, PCIe, and a 40-pin GPIO header for hardware expansion.

Armbian provides standard support for the Orange Pi 4 LTS, with Ubuntu Noble and Debian Trixie images available and community-verified working features including Docker, WireGuard, and audio codec output. The "LTS" designation reflects Xunlong's commitment to long-term hardware availability, making this board a dependable foundation for production embedded Linux projects.

## Where to Buy

- [AliExpress](https://openhardware.directory/r?to=https%3A%2F%2Fwww.aliexpress.com%2Fstore%2F1553371&ref=openhardware.directory&product=orange-pi-4-lts&source=md-export) — 55.00

## Resources

- [product](https://openhardware.directory/r?to=http%3A%2F%2Fwww.orangepi.org%2Fhtml%2FhardWare%2FcomputerAndMicrocontrollers%2Fdetails%2FOrange-Pi-4-LTS.html&ref=openhardware.directory&product=orange-pi-4-lts&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Forange-pi-4-lts%2F&ref=openhardware.directory&product=orange-pi-4-lts&source=md-export)

## Tags

`sbc`, `linux`, `rockchip`, `rk3399`, `arm64`, `emmc`, `wifi`, `armbian`, `lts`

## Images

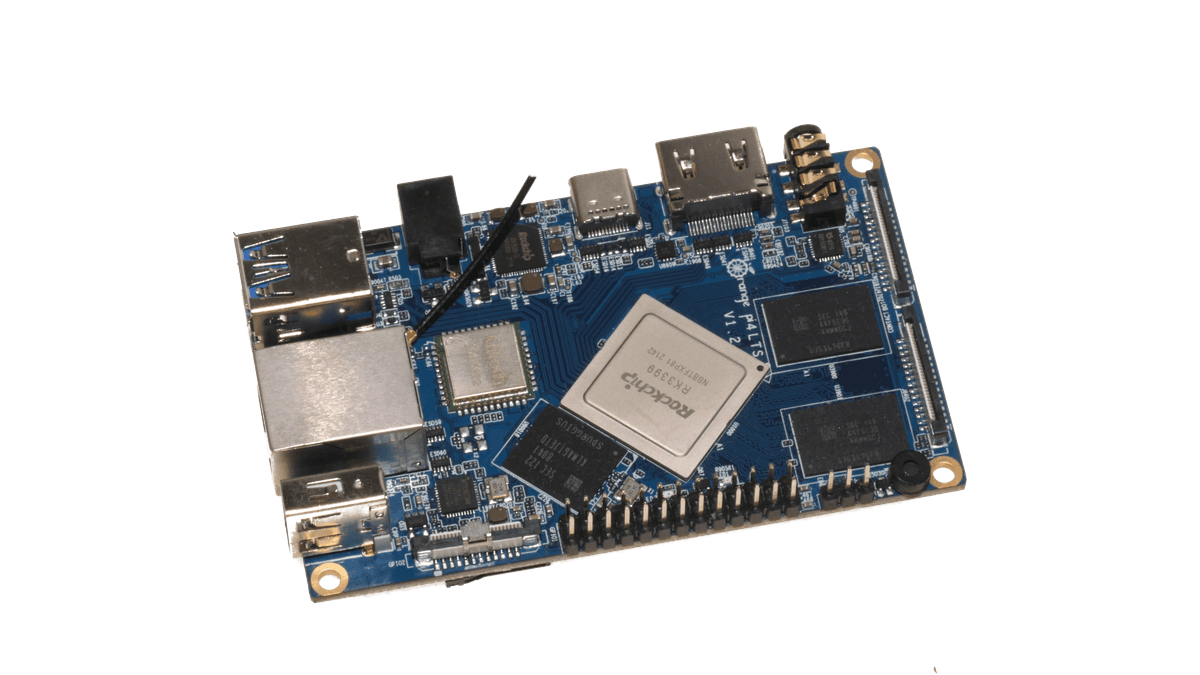

![Orange Pi 4 LTS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/orange-pi-4-lts/a4eb87ab4251.png)

---
