# Orange Pi PC 2

> The Orange Pi PC 2 is a 64-bit single-board computer based on the Allwinner H5 quad-core Cortex-A53 SoC with 1GB DDR3 RAM and Gigabit Ethernet, offering a cost-effective ARM64 Linux platform for makers and hobbyists.

## Quick Facts

- **Brand:** Xunlong
- **Price:** ~$20
- **CPU:** Allwinner H5 — 4x Cortex-A53 @ 1.368GHz, Mali-450 GPU
- **CPU Architecture:** ARM Cortex-A53
- **CPU Cores:** 4
- **RAM:** 1GB DDR3
- **Flash:** SPI flash (bootloader) + microSD
- **USB:** 2x USB 2.0 Host
- **Power:** DC 5V/2A barrel jack
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** Gigabit Ethernet

## Use Cases

- iot-gateway
- education
- nas

## Components

- **Allwinner H5** (soc): Quad-core Cortex-A53 64-bit SoC with Mali-450 GPU, successor to the Allwinner H3 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Flinux-sunxi.org%2FH5&ref=openhardware.directory&product=orange-pi-pc-2&source=md-export)

## Description

## Overview

The Orange Pi PC 2 is an affordable 64-bit single-board computer from Xunlong, built on the Allwinner H5 SoC — the 64-bit successor to the popular Allwinner H3. The H5 features four Cortex-A53 cores clocked at up to 1.368GHz and an integrated Mali-450 GPU, with the key upgrade over the H3 being full 64-bit (AArch64) support. The board comes with 1GB DDR3 RAM and a microSD slot for storage, alongside an SPI flash chip for bootloader storage.

A standout feature for its price class is the Gigabit Ethernet port, enabling significantly faster network throughput than the 100Mbps-limited Orange Pi One. The board includes two USB 2.0 host ports, HDMI output for display connectivity, a 3.5mm audio jack, a CSI camera connector, an infrared receiver, and a 40-pin GPIO header. There is no built-in Wi-Fi or Bluetooth, keeping costs low for wired network applications.

Armbian provides standard support with kernel 6.12, offering both desktop (XFCE) and minimal/IoT images for Ubuntu and Debian. SPI flash bootloader support allows booting without a microSD card in some configurations. The Orange Pi PC 2 strikes a balance between the ultra-minimal Orange Pi One and more expensive boards, making it a practical choice for lightweight network services, home automation hubs, and beginner Linux projects requiring Gigabit connectivity.

## Where to Buy

- [AliExpress](https://openhardware.directory/r?to=https%3A%2F%2Fwww.aliexpress.com%2Fstore%2F1553371&ref=openhardware.directory&product=orange-pi-pc-2&source=md-export) — 20.00

## Resources

- [product](https://openhardware.directory/r?to=http%3A%2F%2Fwww.orangepi.org%2Fhtml%2FhardWare%2FcomputerAndMicrocontrollers%2Fdetails%2FOrange-Pi-PC-2.html&ref=openhardware.directory&product=orange-pi-pc-2&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Forange-pi-pc2%2F&ref=openhardware.directory&product=orange-pi-pc-2&source=md-export)

## Tags

`sbc`, `linux`, `allwinner`, `h5`, `arm64`, `gigabit-ethernet`, `budget`, `armbian`

## Images

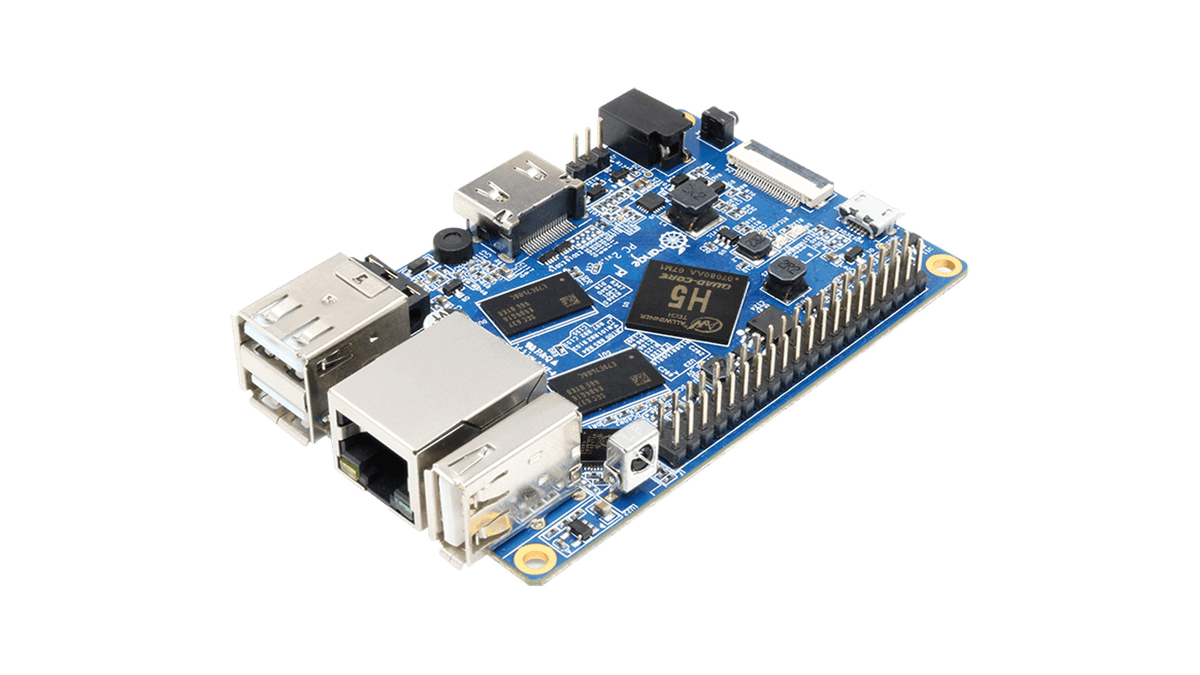

![Orange Pi PC 2](https://nbg1.your-objectstorage.com/openhardware-directory/entities/orange-pi-pc-2/c9b79f252a4e.png)

---
