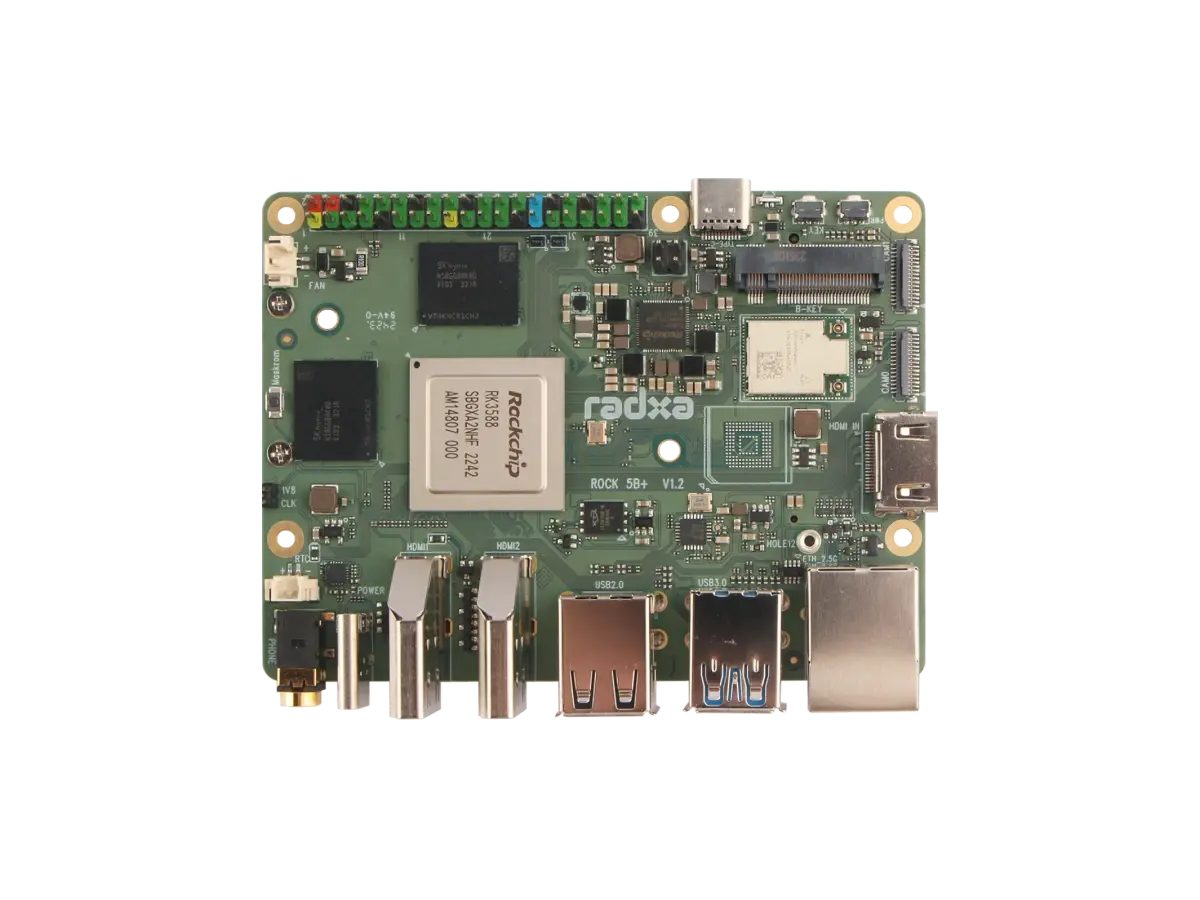

# Radxa ROCK 5B+ > RK3588 Pico-ITX SBC with up to 32GB LPDDR5, dual M.2 NVMe, WiFi 6, 2.5GbE PoE, four independent display outputs, and optional 4G/5G via SIM card slot — the upgraded Rock 5B for demanding edge and NAS deployments. ## Quick Facts - **Brand:** Radxa - **Price:** ~$70 - **CPU:** ARM Cortex-A76 ×4 @ 2.4GHz + Cortex-A55 ×4 @ 1.8GHz - **CPU Architecture:** ARM big.LITTLE (Cortex-A76 + A55) - **CPU Cores:** 8 - **RAM:** 4GB / 8GB / 16GB / 24GB / 32GB LPDDR5 - **Flash:** 0–256GB onboard eMMC + 2× M.2 NVMe (PCIe 3.0 x2) + SPI flash - **USB:** 2× USB 3.1 Gen1 Type-A, 1× USB 3.1 Type-C (DP Alt Mode), 2× USB 2.0 - **Power:** 12V DC (USB-C port is data/DP only, not power input) - **Operating Voltage:** 3.3V GPIO - **Dimensions:** 100 × 72mm (Pico-ITX) - **Antenna:** Built-in PCB antenna (WiFi 6 + BT 5.2) - **SD Card:** microSD ## Connectivity - **Ethernet:** 2.5 Gbps with PoE (RTL8852BE) - **Wifi:** 802.11 a/b/g/n/ac/ax (WiFi 6, RTL8852BE) - **Bluetooth:** Bluetooth 5.2 (RTL8852BE) - **Cellular:** 4G LTE / 5G via M.2 Key-B + SIM slot ## Use Cases - home-server - home-server - edge-ai - edge-computing - digital-signage - arm-sbc-development - embedded-linux - home-lab-networking - computer-vision ## Components - **RK3588** (soc): Rockchip RK3588: 4× Cortex-A76 @ 2.4GHz + 4× Cortex-A55 @ 1.8GHz, Mali-G610 MP4 GPU, 6 TOPS NPU, 8K H.265/VP9 decode @ 60fps. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK35_Series%2F2022%2F0926%2F1660.html&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) - **RTL8852BE** (module): Realtek RTL8852BE providing onboard WiFi 6 (802.11ax), Bluetooth 5.2, and the 2.5 Gigabit Ethernet interface. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.realtek.com%2Fen%2Fproducts%2Fcommunications-network-ics%2Fitem%2Frtl8852be&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) - **Mali-G610** (gpu): ARM Mali-G610 MP4 supporting OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.2. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdeveloper.arm.com%2FProcessors%2FMali-G610&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | Pin 3 | I2C_SDA | I2C | digital-input, digital-output, i2c | | Pin 5 | I2C_SCL | I2C | digital-input, digital-output, i2c | | Pin 7 | GPIO | GPIO | digital-input, digital-output | | Pin 8 | UART_TX | UART | digital-output, uart | | Pin 10 | UART_RX | UART | digital-input, uart | | Pin 11 | GPIO | GPIO | digital-input, digital-output | | Pin 12 | GPIO | GPIO | digital-input, digital-output | | Pin 13 | GPIO | GPIO | digital-input, digital-output | | Pin 15 | GPIO | GPIO | digital-input, digital-output | | Pin 16 | GPIO | GPIO | digital-input, digital-output | | Pin 18 | GPIO | GPIO | digital-input, digital-output | | Pin 19 | SPI_MOSI | SPI | digital-output, spi | | Pin 21 | SPI_MISO | SPI | digital-input, spi | | Pin 22 | GPIO | GPIO | digital-input, digital-output | | Pin 23 | SPI_CLK | SPI | digital-input, digital-output, spi | | Pin 24 | SPI_CSn0 | SPI | digital-output, spi | | Pin 26 | SPI_CSn1 | SPI | digital-output, spi | | Pin 27 | I2C_SDA (alt) | I2C | digital-input, digital-output, i2c | | Pin 28 | I2C_SCL (alt) | I2C | digital-input, digital-output, i2c | | Pin 29 | GPIO | GPIO | digital-input, digital-output | | Pin 31 | GPIO | GPIO | digital-input, digital-output | | Pin 32 | PWM | PWM | digital-output, pwm | | Pin 33 | PWM | PWM | digital-output, pwm | | Pin 35 | GPIO | GPIO | digital-input, digital-output | | Pin 36 | GPIO | GPIO | digital-input, digital-output | | Pin 37 | GPIO | GPIO | digital-input, digital-output | | Pin 38 | GPIO | GPIO | digital-input, digital-output | | Pin 40 | GPIO | GPIO | digital-input, digital-output | ## Description ## Overview The Radxa ROCK 5B+ is an upgraded version of the popular Rock 5B, built around the Rockchip RK3588 and fitting into a compact 100×72mm Pico-ITX footprint. It addresses the most-requested improvements: LPDDR5 memory (up to 32GB), onboard eMMC flash options, integrated WiFi 6 and Bluetooth 5.2 (no separate module needed), and two M.2 Key-M PCIe 3.0 x2 sockets for dual NVMe SSD configurations. Networking is upgraded to 2.5 Gigabit Ethernet with PoE support, and a new M.2 Key-B socket plus dedicated SIM card slot enables 4G LTE or 5G cellular connectivity without sacrificing an NVMe slot. Video output reaches four independent simultaneous displays: two HDMI 2.1 (up to 8K@60Hz), one DisplayPort via USB-C (up to 8K@30Hz), and one MIPI DSI. A micro HDMI input (4K@60Hz) enables video capture. The RK3588's 6 TOPS NPU makes it a capable platform for on-device AI inference, computer vision pipelines, and edge ML workloads. A standard 40-pin GPIO header provides I2C, SPI, UART, and general GPIO access for expansion. Armbian, Ubuntu, Debian, and Android are all supported with well-maintained images. The ROCK 5B+ is popular for NAS builds (dual NVMe + 2.5GbE), home lab servers, Kubernetes edge nodes, and digital signage deployments where sustained compute throughput and multi-display support matter. ## Where to Buy - [Radxa (AliExpress)](https://openhardware.directory/r?to=https%3A%2F%2Fradxa.com%2Fproducts%2Frock5%2F5bp%2F&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) — 70.00 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fradxa.com%2Fproducts%2Frock5%2F5bp%2F&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.radxa.com%2FRock5%2F5b&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK35_Series%2F2022%2F0926%2F1660.html&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) - [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fradxa&ref=openhardware.directory&product=radxa-rock-5b-plus&source=md-export) ## Tags `rk3588`, `linux`, `arm`, `sbc`, `nas`, `wifi6`, `npu`, `radxa`, `pico-itx`, `lpddr5`, `nvme` ## Images ![Radxa ROCK 5B+](https://nbg1.your-objectstorage.com/openhardware-directory/entities/radxa-rock-5b-plus/17ab2164147d.webp) ![Radxa ROCK 5B+](https://nbg1.your-objectstorage.com/openhardware-directory/entities/radxa-rock-5b-plus/ca1027092500.webp) --- [View full device page](https://openhardware.directory/devices/radxa-rock-5b-plus)
