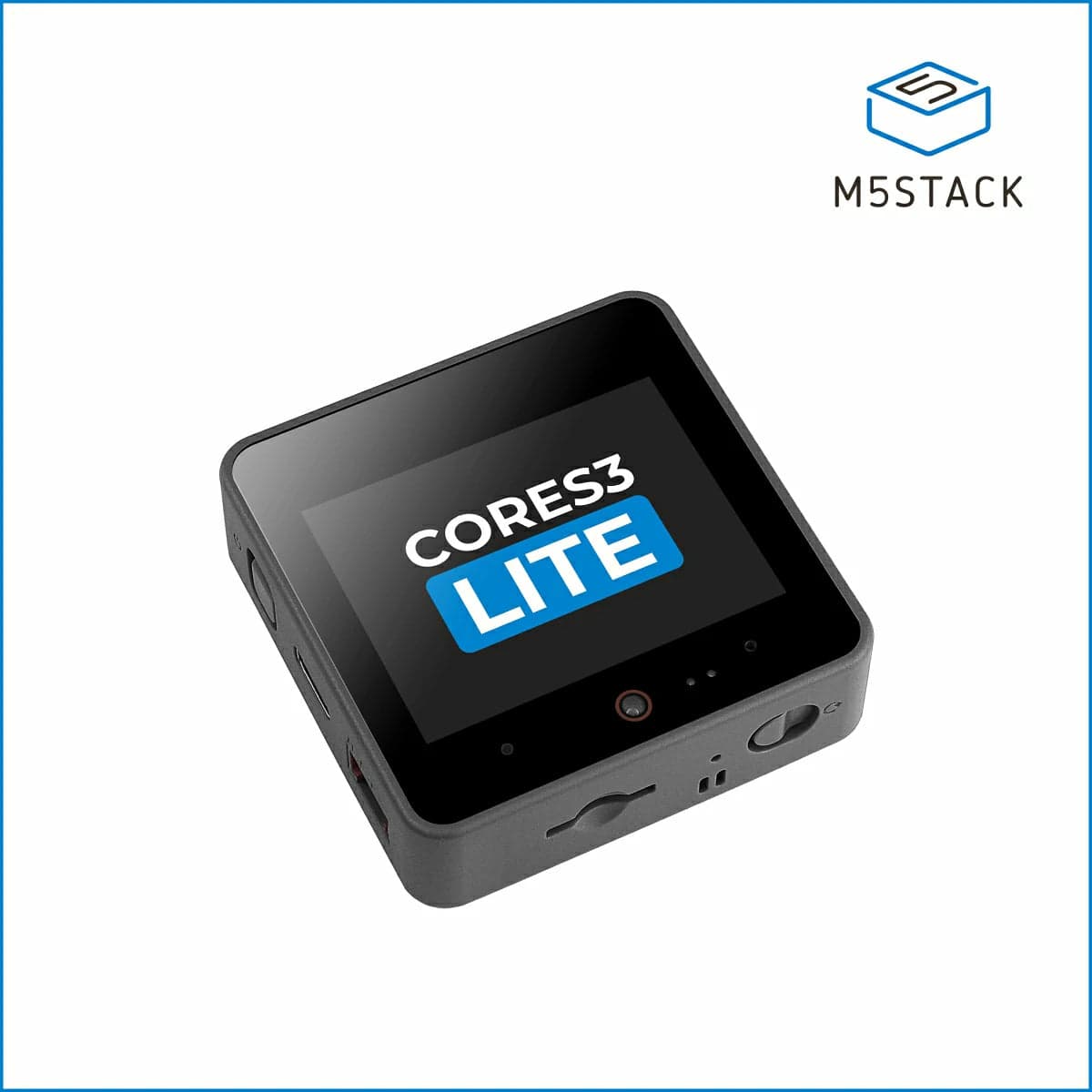

# M5Stack CoreS3 Lite > ESP32-S3 IoT controller with 2.0" capacitive touch IPS display, GC0308 camera, dual microphones, 1W speaker, BMI270 IMU, BMM150 magnetometer, proximity sensor, 200mAh battery, and Grove expansion ports. ## Quick Facts - **Brand:** M5Stack - **Board Type:** dev-board - **Price:** ~$44.9 - **Product Readiness:** developer - **CPU:** Xtensa LX7 dual-core @ 240MHz, FPU, AI vector instructions - **CPU Architecture:** Xtensa LX7 - **CPU Cores:** 2 - **RAM:** 512KB SRAM - **PSRAM:** 8MB (OPI) - **Flash:** 16MB - **USB:** USB-C (OTG) - **Power:** 5V - **Operating Voltage:** 3.3V - **Dimensions:** 54 x 54 x 16.5mm - **Weight:** 54g - **Battery:** 200mAh - **Charging Port:** USB-C - **Antenna:** Built-in 3D antenna - **SD Card:** microSD - **Display:** 2.0" IPS LCD 320x240 ## Connectivity - **Wifi:** 802.11 b/g/n - **Bluetooth:** BLE 5.0 ## Open Source - **Firmware:** Yes - **Schematics:** Yes - **PCB Layout:** No ## Compatible Firmware arduino, esp-idf, esphome, micropython, platformio, uiflow ## Use Cases - voice-assistant - smart-home-dashboard - environmental-monitoring - iot-prototyping - camera-vision ## Components - **ESP32-S3FN16R8** (mcu): Espressif ESP32-S3 with 16MB flash, 8MB PSRAM, dual-core Xtensa LX7 at 240MHz — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **ILI9342C** (display-driver): 320x240 IPS LCD with capacitive touch via FT6336U — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fm5stack.oss-cn-shenzhen.aliyuncs.com%2Fresource%2Fdocs%2Fdatasheet%2Fcore%2FILI9342C-ILITEK.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **FT6336U** (touch-controller): Self-capacitive touch controller for display input — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcdn-shop.adafruit.com%2Fproduct-files%2F5826%2FFT6336U-DataSheet-V1.1.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **GC0308** (camera): VGA-resolution CMOS camera sensor for computer vision and image capture — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.min.at%2Fprinz%2Ffp-content%2Fattachs%2FGC0308.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **BMI270** (accelerometer): Bosch ultra-low-power IMU with 3-axis accelerometer and gyroscope — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.bosch-sensortec.com%2Fmedia%2Fboschsensortec%2Fdownloads%2Fdatasheets%2Fbst-bmi270-ds000.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **BMM150** (magnetometer): Bosch 3-axis digital magnetometer for compass applications — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.bosch-sensortec.com%2Fmedia%2Fboschsensortec%2Fdownloads%2Fdatasheets%2Fbst-bmm150-ds001.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **AW88298** (audio-amplifier): 16-bit I2S digital input smart audio amplifier — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fm5stack.oss-cn-shenzhen.aliyuncs.com%2Fresource%2Fdocs%2Fdatasheet%2Fcore%2FK128%2520CoreS3%2FAW88298.PDF&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **ES7210** (audio-codec): 4-channel audio ADC for dual microphone input — [Datasheet](https://openhardware.directory/r?to=http%3A%2F%2Fwww.everest-semi.com%2Fpdf%2FES7210%2520PB.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **AXP2101** (battery-charger): Advanced power management IC with battery charging and multiple voltage outputs — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fm5stack.oss-cn-shenzhen.aliyuncs.com%2Fresource%2Fdocs%2Fdatasheet%2Fcore%2FK128%2520CoreS3%2FAXP2101_Datasheet_V1.0_en.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - **BM8563** (rtc): Low-power RTC for timekeeping and timed wake-up from deep sleep — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdatasheet.lcsc.com%2Flcsc%2F1811152241_GATEMODE-BM8563_C269877.pdf&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) ## Protocols - **I2C**: SDA: GPIO12, SCL: GPIO11 - **SPI**: SCLK: GPIO36, MOSI: GPIO37 - **I2S**: MCLK: GPIO0, BCLK: GPIO34, LRCK: GPIO33 ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | GPIO2 | Grove Port A SDA | I2C | digital-input, digital-output, adc, touch, pwm | | GPIO1 | Grove Port A SCL | I2C | digital-input, digital-output, adc, touch, pwm | | GPIO8 | Port B | — | digital-input, digital-output, adc, pwm | | GPIO9 | Port B | — | digital-input, digital-output, adc, pwm | | GPIO17 | Port C | — | digital-input, digital-output, pwm | | GPIO18 | Port C | — | digital-input, digital-output, pwm | ## Description ## Overview The M5Stack CoreS3 Lite is a compact, feature-rich IoT development controller built around the ESP32-S3FN16R8 dual-core processor with 16MB flash and 8MB PSRAM. It packs a 2.0-inch capacitive touch IPS display (320x240), a 0.3MP GC0308 camera, proximity/ambient light sensor, 6-axis IMU, 3-axis magnetometer, dual MEMS microphones, and a 1W speaker into a 54x54mm form factor. The audio subsystem features a full-duplex solution with an AW88298 I2S amplifier and ES7210 quad-channel audio ADC, making it ideal for voice assistant applications. Power management is handled by the AXP2101 PMIC with a built-in 200mAh LiPo battery. Expansion is available through Grove-compatible ports and a 30-pin M-Bus header for stackable modules. ## Where to Buy - [M5Stack Official](https://openhardware.directory/r?to=https%3A%2F%2Fshop.m5stack.com%2Fproducts%2Fm5stack-cores3-lite-esp32s3-iot-dev-kit&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) — $44.90 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fshop.m5stack.com%2Fproducts%2Fm5stack-cores3-lite-esp32s3-iot-dev-kit&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fm5stack%2FM5CoreS3&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.m5stack.com%2Fen%2Fcore%2FCoreS3-Lite&ref=openhardware.directory&product=m5stack-cores3-lite&source=md-export) ## Tags `esp32-s3`, `m5stack`, `camera`, `touch`, `imu`, `voice-assistant`, `grove` ## Images ![M5Stack CoreS3 Lite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/m5stack-cores3-lite/5db937f0c142.webp) ![M5Stack CoreS3 Lite](https://nbg1.your-objectstorage.com/openhardware-directory/entities/m5stack-cores3-lite/8130f246e211.webp) > **Battery Powered:** LiPo 3.7V --- [View full device page](https://openhardware.directory/devices/m5stack-cores3-lite)
