# LuckFox Pico Pro

> Linux SBC based on Rockchip RV1106G2 with ARM Cortex-A7 @ 1.2GHz, 0.5 TOPS NPU, 128MB DDR3L, 256MB SPI NAND Flash, 100M Ethernet (RJ45), MIPI CSI camera, 26 GPIO pins, and RTC battery header in Pico form factor.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** linux-sbc
- **Price:** ~$25.99
- **Product Readiness:** developer
- **CPU:** Rockchip RV1106
- **CPU Architecture:** ARM Cortex-A7 + RISC-V
- **CPU Cores:** 1
- **RAM:** 128MB DDR3L
- **Flash:** 256MB SPI NAND
- **USB:** USB-C 2.0
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 10/100 Mbps

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

buildroot

## Use Cases

- ai-vision-camera
- edge-ai
- embedded-linux

## Components

- **RV1106** (soc): ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 0.5 TOPS NPU + ISP 3.2 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1106%2520Datasheet%2520V1.7-20231218.pdf&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)
- **W25N02KV** (flash): 256MB SLC NAND Flash for boot image and rootfs storage — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.winbond.com%2Fhq%2Fproduct%2Fcode-storage-flash-memory%2Fserial-nand-flash%2F%3F__locale%3Den%26partNo%3DW25N02KV&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **PWM**
- **ADC**
- **MIPI CSI**
- **USB 2.0**

## Accessories

- mipi-csi-camera

## Available Software

- **[LuckFox Pico SDK](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)**: Official Buildroot SDK with toolchain, kernel, and sample applications

## Description

# LuckFox Pico Pro

The LuckFox Pico Pro is a compact Linux development board based on the Rockchip RV1106G2 vision processor. It upgrades from the base Pico with 128MB DDR3L RAM, 256MB SPI NAND Flash, a 10/100M Ethernet RJ45 port, and 26 GPIO pins while maintaining the Pico-compatible form factor.

## Key Features

- **RV1106G2 SoC**: ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 0.5 TOPS NPU + ISP 3.2
- **Memory**: 128MB DDR3L + 256MB SPI NAND Flash (W25N02KV)
- **Ethernet**: 10/100M RJ45 port with embedded PHY
- **Camera**: MIPI CSI 2-lane supporting up to 5MP @ 30fps
- **GPIO**: 26 pins with UART, SPI, I2C, PWM, ADC
- **RTC**: Battery header (MX1.25) for real-time clock backup
- **Storage**: TF card slot for additional storage

## Pro vs Max

| Feature | Pro (RV1106G2) | Max (RV1106G3) |
|---------|----------------|-----------------|
| RAM | 128MB DDR3L | 256MB DDR3L |
| NPU | 0.5 TOPS | 1.0 TOPS |
| ISP max | 5MP @ 30fps | 8MP @ 15fps |
| Price | $25.99 | $32.99 |

## Software Support

Runs Buildroot Linux via the official LuckFox SDK. Supports RKNN AI inference, RTSP camera streaming, OpenCV, and RKMPI multimedia processing.

## Where to Buy

- [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fraspberry-pi%2Fboards-kits%2Fraspberry-pi-pico-cat%2Fluckfox-pico-pro.htm&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export) — $25.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fraspberry-pi%2Fboards-kits%2Fraspberry-pi-pico-cat%2Fluckfox-pico-pro.htm&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-Pro-Max&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1106%2520Datasheet%2520V1.7-20231218.pdf&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)
- [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-RV1103%2FDownloads%2F&ref=openhardware.directory&product=luckfox-pico-pro&source=md-export)

## Tags

`linux`, `sbc`, `rockchip`, `rv1106`, `arm`, `npu`, `ethernet`, `ai-camera`, `mipi-csi`, `pico-form-factor`, `nand-flash`

## Images

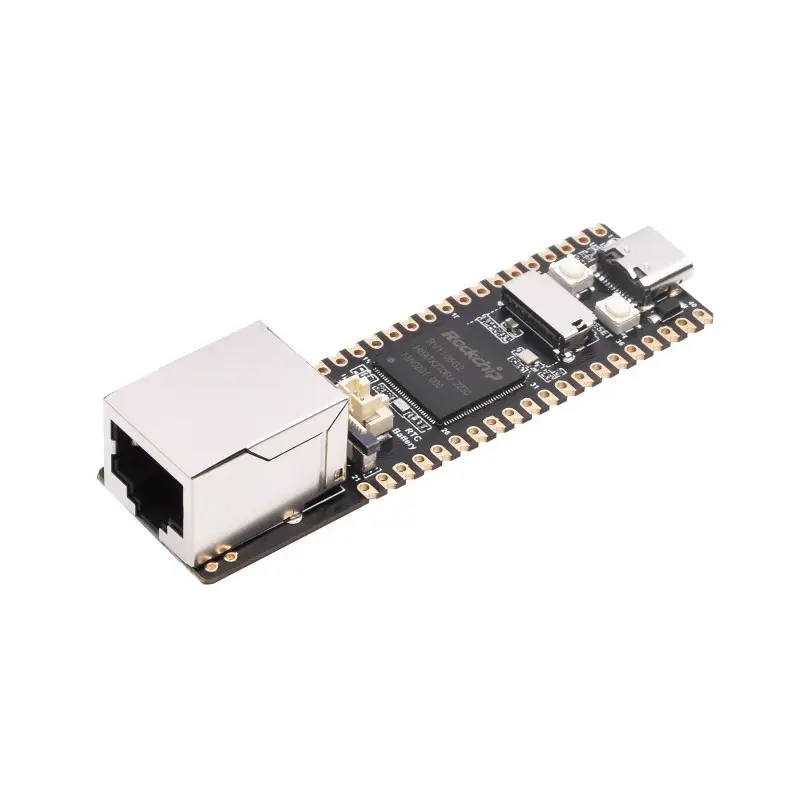

![LuckFox Pico Pro](https://nbg1.your-objectstorage.com/openhardware-directory/entities/luckfox-pico-pro/77348424fba0.jpg)
