# LuckFox Pico Ultra

> Full-featured Linux SBC based on Rockchip RV1106G3 with 1.0 TOPS NPU, 256MB DDR3L, 8GB eMMC, 100M Ethernet (RJ45), optional WiFi 6/BT 5.2, MIPI CSI camera, RGB LCD display output, speaker, and PoE header.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** linux-sbc
- **Price:** ~$33.99
- **Product Readiness:** developer
- **CPU:** Rockchip RV1106
- **CPU Architecture:** ARM Cortex-A7 + RISC-V
- **CPU Cores:** 1
- **RAM:** 256MB DDR3L
- **Flash:** 8GB eMMC
- **USB:** USB-C 2.0
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 10/100 Mbps

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

buildroot

## Use Cases

- ai-vision-camera
- edge-ai
- hmi-panel
- embedded-linux

## Components

- **RV1106** (soc): ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 1.0 TOPS NPU + ISP 3.2 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1106%2520Datasheet%2520V1.7-20231218.pdf&ref=openhardware.directory&product=luckfox-pico-ultra&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **PWM**
- **ADC**
- **MIPI CSI**
- **USB 2.0**
- **RGB LCD**

## Accessories

- mipi-csi-camera
- poe-module
- rgb-lcd-display

## Available Software

- **[LuckFox Pico SDK](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-ultra&source=md-export)**: Official Buildroot SDK with toolchain, kernel, and sample applications

## Description

# LuckFox Pico Ultra

The LuckFox Pico Ultra is the most feature-rich board in the LuckFox Pico family. Based on the Rockchip RV1106G3, it combines AI vision processing with rich I/O: 100M Ethernet (RJ45), MIPI CSI camera, RGB LCD display output (666 format), USB-C + USB-A, onboard microphone, speaker header, RTC battery connector, and optional WiFi 6 / Bluetooth 5.2 (W variant).

## Key Features

- **RV1106G3 SoC**: ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 1.0 TOPS NPU + ISP 3.2
- **Memory**: 256MB DDR3L + 8GB eMMC
- **Ethernet**: 10/100M RJ45 port with optional PoE module header
- **Display**: RGB LCD interface (666 format) for touch-screen HMI applications
- **Camera**: MIPI CSI 2-lane interface supporting up to 5MP @ 30fps
- **Audio**: Onboard microphone + speaker header (MX1.25 2P, 8 ohm 1W)
- **USB**: USB-C (power/programming) + USB-A (switchable)

## Variants

| Variant | SoC | RAM | NPU | WiFi/BT |
|---------|-----|-----|-----|---------|
| Ultra | RV1106G3 | 256MB | 1.0 TOPS | No |
| Ultra B | RV1106G2 | 128MB | 0.5 TOPS | No |
| Ultra W | RV1106G3 | 256MB | 1.0 TOPS | WiFi 6 + BT 5.2 |
| Ultra BW | RV1106G2 | 128MB | 0.5 TOPS | WiFi 6 + BT 5.2 |

## Display Support

Optional 4-inch IPS capacitive touch displays:
- 480x480 or 720x720 resolution, RGB666 interface, GT911 touch controller

## Software Support

Runs Buildroot Linux via the official LuckFox SDK. Supports RKNN AI inference, RTSP camera streaming, OpenCV, RKMPI, and LVGL for display-based applications.

## Where to Buy

- [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fraspberry-pi%2Fboards-kits%2Fraspberry-pi-pico-cat%2Fluckfox-pico-ultra.htm&ref=openhardware.directory&product=luckfox-pico-ultra&source=md-export) — $33.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fraspberry-pi%2Fboards-kits%2Fraspberry-pi-pico-cat%2Fluckfox-pico-ultra.htm&ref=openhardware.directory&product=luckfox-pico-ultra&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-ultra&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-Ultra&ref=openhardware.directory&product=luckfox-pico-ultra&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1106%2520Datasheet%2520V1.7-20231218.pdf&ref=openhardware.directory&product=luckfox-pico-ultra&source=md-export)

## Tags

`linux`, `sbc`, `rockchip`, `rv1106`, `arm`, `npu`, `ethernet`, `ai-camera`, `mipi-csi`, `rgb-lcd`, `emmc`, `poe`, `audio`

## Images

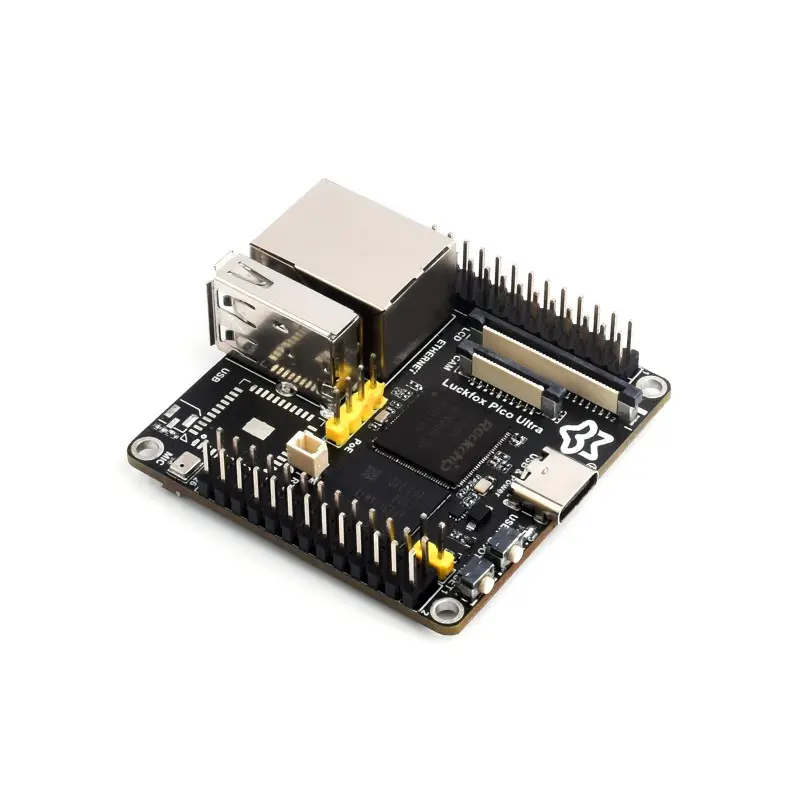

![LuckFox Pico Ultra](https://nbg1.your-objectstorage.com/openhardware-directory/entities/luckfox-pico-ultra/25e78bb1ad54.jpg)
