# LuckFox Pico Plus

> Linux SBC based on Rockchip RV1103 with ARM Cortex-A7 @ 1.2GHz, RISC-V MCU, 0.5 TOPS NPU, 64MB DDR2, 128MB NAND Flash, 10/100M Ethernet (RJ45), MIPI CSI camera, and 25 GPIO pins in a Pico form factor.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** linux-sbc
- **Price:** ~$15.99
- **Product Readiness:** developer
- **CPU:** Rockchip RV1103
- **CPU Architecture:** ARM Cortex-A7 + RISC-V
- **CPU Cores:** 1
- **RAM:** 64MB DDR2
- **Flash:** 128MB SPI NAND
- **USB:** USB-C 2.0
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 10/100 Mbps

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

buildroot

## Use Cases

- ai-vision-camera
- edge-ai
- embedded-linux

## Components

- **RV1103** (soc): ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 0.5 TOPS NPU + ISP 3.2 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1103%2520Datasheet%2520V1.1-20220427.pdf&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)
- **W25N01KV** (flash): 128MB SLC NAND Flash for boot image and rootfs storage — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.winbond.com%2Fhq%2Fproduct%2Fcode-storage-flash-memory%2Fserial-nand-flash%2F%3F__locale%3Den%26partNo%3DW25N01KV&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **PWM**
- **ADC**
- **MIPI CSI**
- **USB 2.0**

## Accessories

- mipi-csi-camera

## Available Software

- **[LuckFox Pico SDK](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)**: Official Buildroot SDK with toolchain, kernel, and sample applications

## Description

# LuckFox Pico Plus

The LuckFox Pico Plus adds Ethernet connectivity and onboard flash storage to the base LuckFox Pico. Based on the Rockchip RV1103 vision processor, it includes a 10/100M Ethernet RJ45 port, 128MB SPI NAND Flash (W25N01KV), and 25 GPIO pins while maintaining the compact Pico form factor.

## Key Features

- **RV1103 SoC**: ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 0.5 TOPS NPU + ISP 3.2
- **Memory**: 64MB DDR2 + 128MB SPI NAND Flash
- **Ethernet**: 10/100M RJ45 port with embedded PHY
- **Camera**: MIPI CSI 2-lane supporting up to 4MP @ 30fps
- **GPIO**: 25 pins with UART, SPI, I2C, PWM, ADC
- **Fast boot**: 250ms fast picture capture via RISC-V MCU
- **Storage**: TF card slot for additional storage

## Pico Plus vs Pico

The Plus adds:
- 10/100M Ethernet RJ45 port
- 128MB onboard SPI NAND Flash (no SD card required for booting)
- 1 additional GPIO pin (25 vs 24)

## Software Support

Runs Buildroot Linux via the official LuckFox SDK. Supports RKNN AI inference, RTSP camera streaming, OpenCV, and RKMPI multimedia processing. The onboard flash allows standalone boot without an SD card.

## Where to Buy

- [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fraspberry-pi%2Fboards-kits%2Fraspberry-pi-pico-cat%2Fluckfox-pico-plus.htm&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export) — $15.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fraspberry-pi%2Fboards-kits%2Fraspberry-pi-pico-cat%2Fluckfox-pico-plus.htm&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-Plus-Mini&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1103%2520Datasheet%2520V1.1-20220427.pdf&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)
- [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-RV1103%2FDownloads%2F&ref=openhardware.directory&product=luckfox-pico-plus&source=md-export)

## Tags

`linux`, `sbc`, `rockchip`, `rv1103`, `arm`, `risc-v`, `npu`, `ethernet`, `ai-camera`, `mipi-csi`, `pico-form-factor`, `nand-flash`

## Images

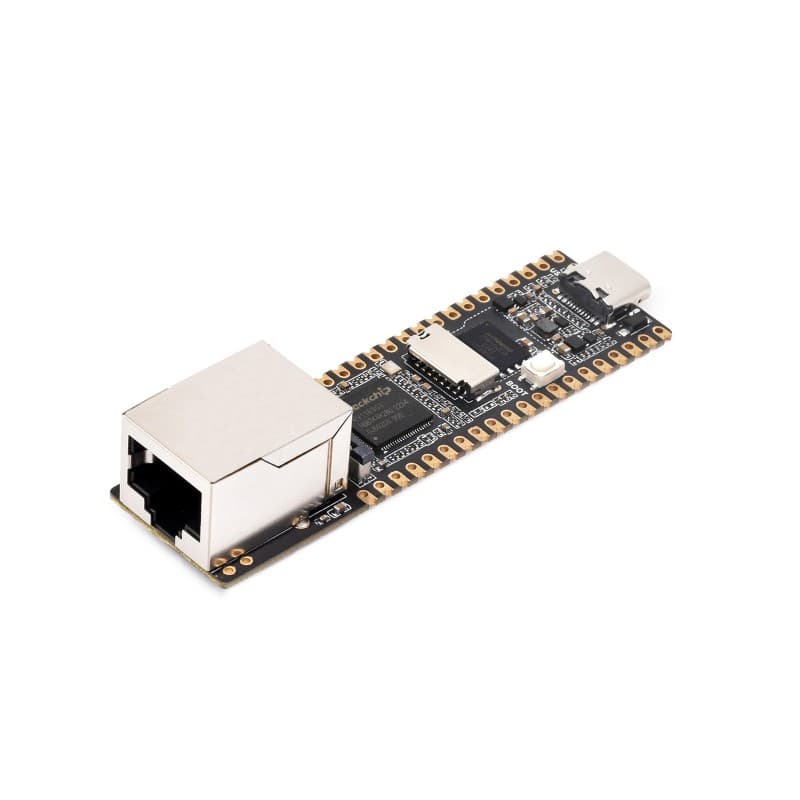

![LuckFox Pico Plus](https://nbg1.your-objectstorage.com/openhardware-directory/entities/luckfox-pico-plus/3ba153edae31.jpg)
