# LuckFox Pico Mini

> Tiny Linux SBC (28x21mm) based on Rockchip RV1103 with ARM Cortex-A7 @ 1.2GHz, RISC-V MCU, 0.5 TOPS NPU, 64MB DDR2, MIPI CSI camera, 17 GPIO pins, and castellated-hole design for direct soldering.

## Quick Facts

- **Brand:** LuckFox
- **Board Type:** linux-sbc
- **Price:** ~$8.99
- **Product Readiness:** developer
- **CPU:** Rockchip RV1103
- **CPU Architecture:** ARM Cortex-A7 + RISC-V
- **CPU Cores:** 1
- **RAM:** 64MB DDR2
- **Flash:** microSD (TF)
- **USB:** USB-C 2.0
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **Dimensions:** 28 x 21mm
- **SD Card:** microSD

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

buildroot

## Use Cases

- ai-vision-camera
- edge-ai

## Components

- **RV1103** (soc): ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 0.5 TOPS NPU + ISP 3.2 — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1103%2520Datasheet%2520V1.1-20220427.pdf&ref=openhardware.directory&product=luckfox-pico-mini&source=md-export)

## Protocols

- **UART**
- **SPI**
- **I2C**
- **PWM**
- **ADC**
- **MIPI CSI**
- **USB 2.0**

## Accessories

- mipi-csi-camera

## Available Software

- **[LuckFox Pico SDK](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-mini&source=md-export)**: Official Buildroot SDK with toolchain, kernel, and sample applications

## Description

# LuckFox Pico Mini

The LuckFox Pico Mini is the smallest board in the LuckFox Pico family, measuring just 28 x 21mm. Based on the Rockchip RV1103 vision processor, it features castellated holes with immersion gold for direct soldering onto carrier boards, making it ideal for space-constrained embedded AI camera applications.

## Key Features

- **Ultra-compact**: 28 x 21mm with castellated holes for direct board-to-board soldering
- **RV1103 SoC**: ARM Cortex-A7 @ 1.2GHz + RISC-V MCU + 0.5 TOPS NPU + ISP 3.2
- **Camera interface**: MIPI CSI 2-lane supporting up to 4MP @ 30fps
- **Fast boot**: 250ms fast picture capture via RISC-V MCU co-processor
- **GPIO**: 17 pins with UART, SPI, I2C, PWM, ADC functions

## Variants

| Variant | Storage | Price |
|---------|---------|-------|
| Mini A | TF card slot only | $8.99 |
| Mini B | 128MB SPI NAND Flash | $15.99 |

## Software Support

Runs Buildroot Linux via the official LuckFox SDK. Supports RKNN AI inference, RTSP camera streaming, and OpenCV-based computer vision applications.

## Where to Buy

- [Waveshare](https://openhardware.directory/r?to=https%3A%2F%2Fwww.waveshare.com%2Fproduct%2Fraspberry-pi%2Fboards-kits%2Fraspberry-pi-pico-cat%2Fluckfox-pico-min.htm&ref=openhardware.directory&product=luckfox-pico-mini&source=md-export) — $8.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.luckfox.com%2FLuckfox-Pico-Mini-A&ref=openhardware.directory&product=luckfox-pico-mini&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLuckfoxTECH%2Fluckfox-pico&ref=openhardware.directory&product=luckfox-pico-mini&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.luckfox.com%2FLuckfox-Pico-Plus-Mini&ref=openhardware.directory&product=luckfox-pico-mini&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.luckfox.com%2Fwiki%2FLuckfox-Pico%2FPDF%2FRockchip%2520RV1103%2520Datasheet%2520V1.1-20220427.pdf&ref=openhardware.directory&product=luckfox-pico-mini&source=md-export)

## Tags

`linux`, `sbc`, `rockchip`, `rv1103`, `arm`, `risc-v`, `npu`, `ai-camera`, `mipi-csi`, `castellated-holes`, `ultra-compact`, `vision-processor`

## Images

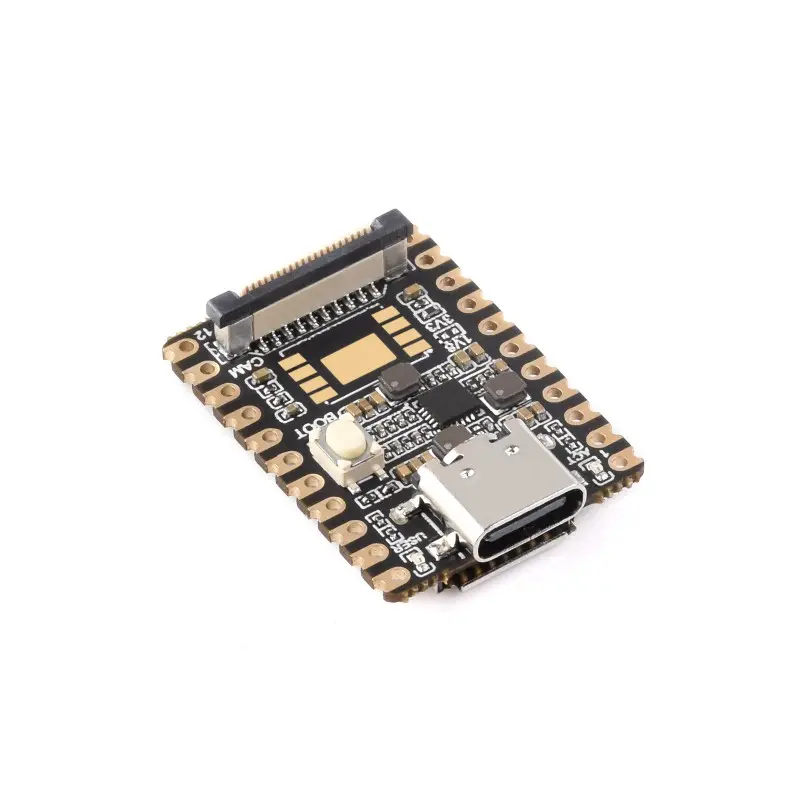

![LuckFox Pico Mini](https://nbg1.your-objectstorage.com/openhardware-directory/entities/luckfox-pico-mini/455c2428bbb3.jpg)
![LuckFox Pico Mini](https://nbg1.your-objectstorage.com/openhardware-directory/entities/luckfox-pico-mini/39e40789c27f.jpg)

---
