# LILYGO T5 V2.3.1

> LILYGO T5 V2.3.1 is a 2.13-inch e-paper display module with SSD1680 driver, supporting 212×104 black-and-white output via SPI. Ultra-low power design retains the image without any power supply.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** Display Module
- **Price:** ~$13.04
- **Product Readiness:** developer
- **CPU:** None (display module)
- **CPU Architecture:** N/A
- **RAM:** N/A
- **Flash:** none
- **USB:** None
- **Power:** 3.3V
- **Operating Voltage:** 3.3V
- **Display:** 2.13" E-Paper 212×104

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino

## Use Cases

- digital-signage
- smart-home-dashboard
- weather-display
- e-reader

## Components

- **SSD1680** (display-driver): Solomon Systech SSD1680 active matrix e-paper display driver IC supporting 212×104 black-and-white output via SPI. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.solomon-systech.com%2Fwp-content%2Fuploads%2F2023%2F12%2FSSD1675B.pdf&ref=openhardware.directory&product=lilygo-t5-v2-3-1&source=md-export)

## Protocols

- **SPI**

## Available Software

- **[GxEPD2](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FZinggJM%2FGxEPD2&ref=openhardware.directory&product=lilygo-t5-v2-3-1&source=md-export)**
- **[LilyGo-T5-Epaper-Series](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGo-T5-Epaper-Series&ref=openhardware.directory&product=lilygo-t5-v2-3-1&source=md-export)**

## Description

## Overview

The LILYGO T5 V2.3.1 is a compact 2.13-inch e-paper display module built around the SSD1680 driver chip. It communicates over 3-wire or 4-wire SPI and operates at 3.3V, making it ideal for battery-powered and ultra-low-power applications. The display supports 212×104 pixel resolution with 2 grey levels (black and white) and a full refresh time of 8 seconds. Because e-paper retains its image without power, it is well-suited for shelf labels, industrial instruments, and IoT status displays where infrequent updates are acceptable. The module is compatible with Arduino/ESP32 development workflows via the LilyGo-T5-Epaper-Series library.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft5-v2-3-1&ref=openhardware.directory&product=lilygo-t5-v2-3-1&source=md-export) — $13.04

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft5-v2-3-1&ref=openhardware.directory&product=lilygo-t5-v2-3-1&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGo-T5-Epaper-Series&ref=openhardware.directory&product=lilygo-t5-v2-3-1&source=md-export)

## Tags

`e-paper`, `e-ink`, `display-module`, `spi`, `2.13-inch`, `ssd1680`, `ultra-low-power`

## Images

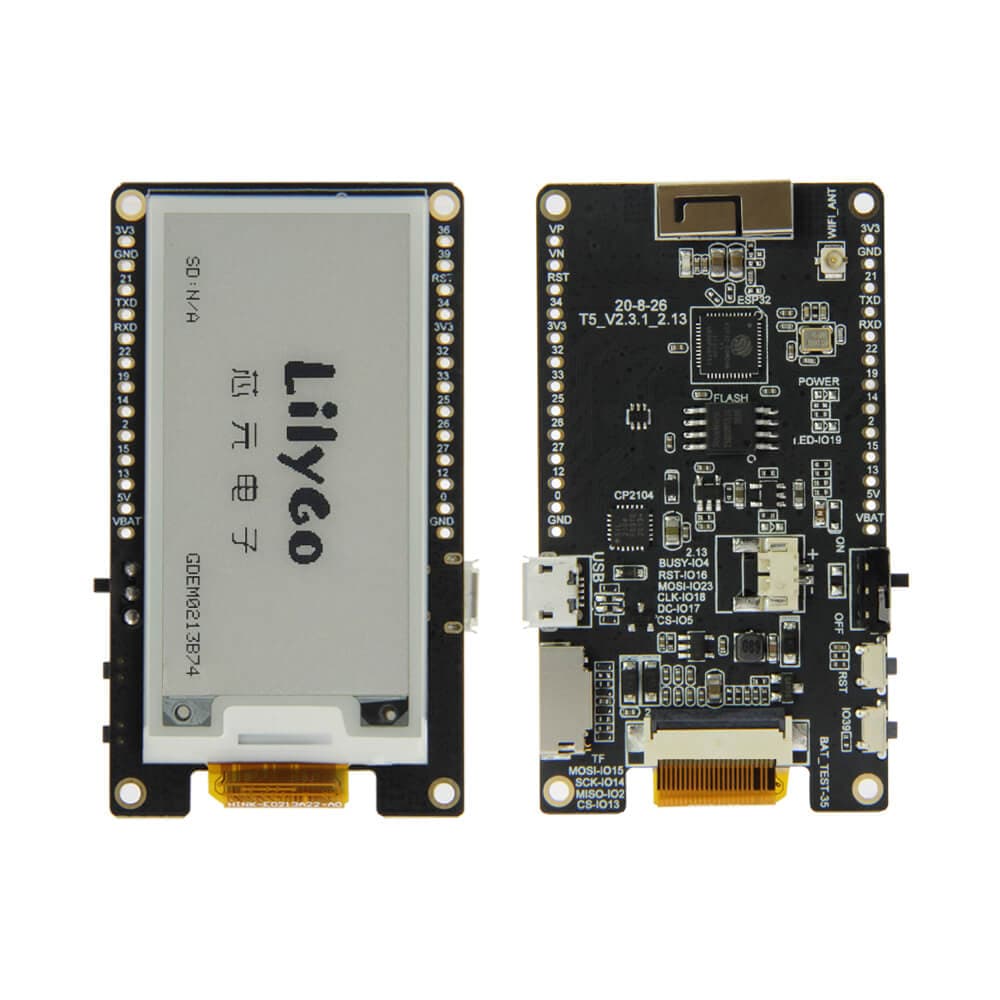

![LILYGO T5 V2.3.1](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t5-v2-3-1/9908e71317cc.jpg)
