# LILYGO T-Connect

> ESP32-S3 industrial communication board with three RS485 ports and one CAN bus — enables multi-protocol data switching for automation, sensor networks, and legacy equipment integration.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$37.99
- **Product Readiness:** developer
- **CPU:** ESP32-S3-R8 Xtensa LX7 dual-core @ 240MHz
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512KB SRAM
- **PSRAM:** 8MB
- **Flash:** 16MB
- **USB:** USB-C
- **Power:** 5V
- **Operating Voltage:** 3.3V

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, platformio

## Use Cases

- industrial-automation
- iot-gateway
- iot

## Components

- **ESP32-S3R8** (mcu): Espressif ESP32-S3-R8 dual-core Xtensa LX7 at 240MHz with 8MB PSRAM, 2.4GHz WiFi, and Bluetooth 5 LE. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-connect&source=md-export)
- **RS485 x3** (interface): Three independent RS485 serial communication ports for industrial sensor networks and Modbus devices, 35m range at 115200 baud. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-Connect&ref=openhardware.directory&product=lilygo-t-connect&source=md-export)
- **CAN Bus** (interface): One CAN bus interface for vehicle and industrial communication, 35m range at 500 kbps. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-Connect&ref=openhardware.directory&product=lilygo-t-connect&source=md-export)

## Protocols

- **RS-485**
- **CAN**
- **SPI**
- **I2C**
- **UART**

## Description

## Overview

The LILYGO T-Connect is an industrial-grade communication development board built on the ESP32-S3-R8 chip with 16MB flash and 8MB PSRAM. It provides four independent communication interfaces: three RS485 serial ports and one CAN bus port, enabling mutual switching between modules for flexible data routing. Each RS485 and CAN interface has a tested range of 35 meters, making it suitable for factory floor automation, multi-sensor data acquisition, and integration with legacy industrial equipment. The onboard APA102 LED indicates status at a glance. The ESP32-S3 also provides 2.4GHz WiFi and Bluetooth 5 LE connectivity for wireless data relay and remote monitoring, making the T-Connect a capable bridge between wired industrial protocols and modern IoT cloud platforms.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-connect&ref=openhardware.directory&product=lilygo-t-connect&source=md-export) — $37.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-connect&ref=openhardware.directory&product=lilygo-t-connect&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-Connect&ref=openhardware.directory&product=lilygo-t-connect&source=md-export)

## Tags

`esp32-s3`, `can-bus`, `rs485`, `industrial`, `lilygo`, `wifi`, `ble5`, `automation`

## Images

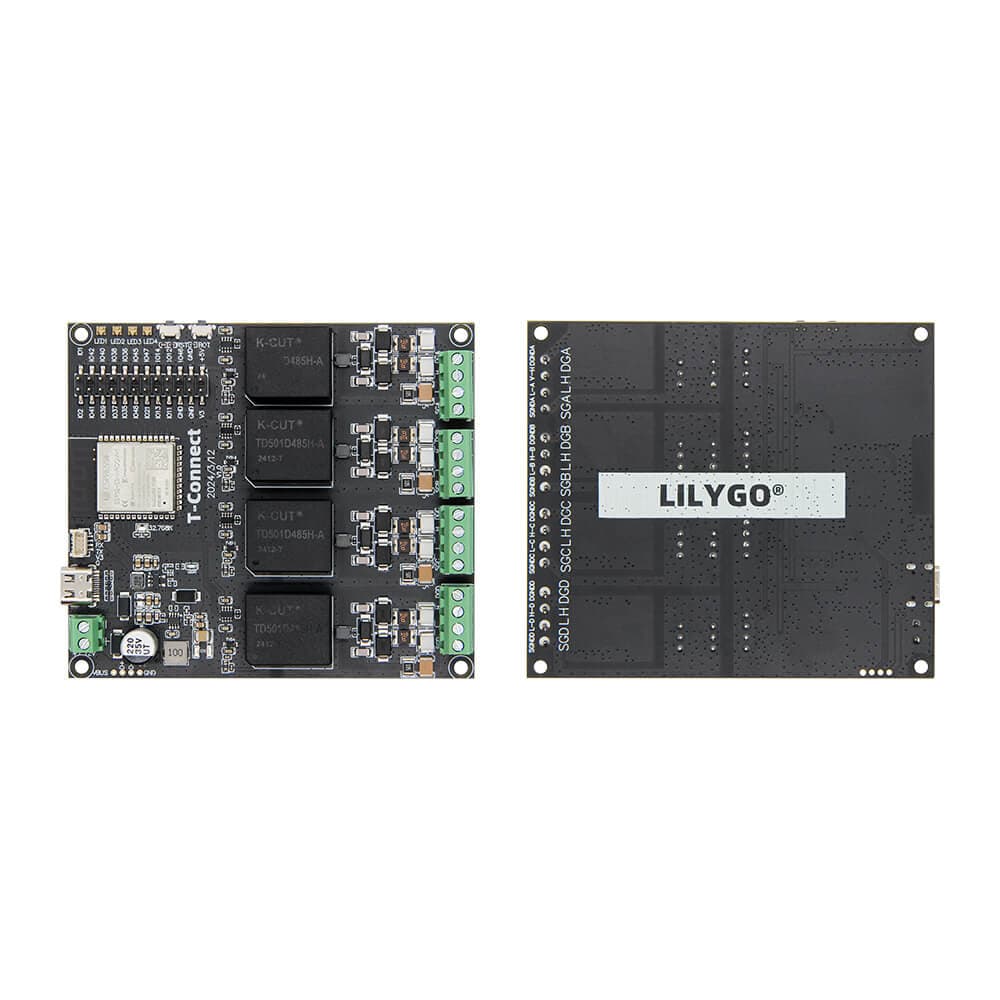

![LILYGO T-Connect](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-connect/9d782fff5b0d.jpg)
