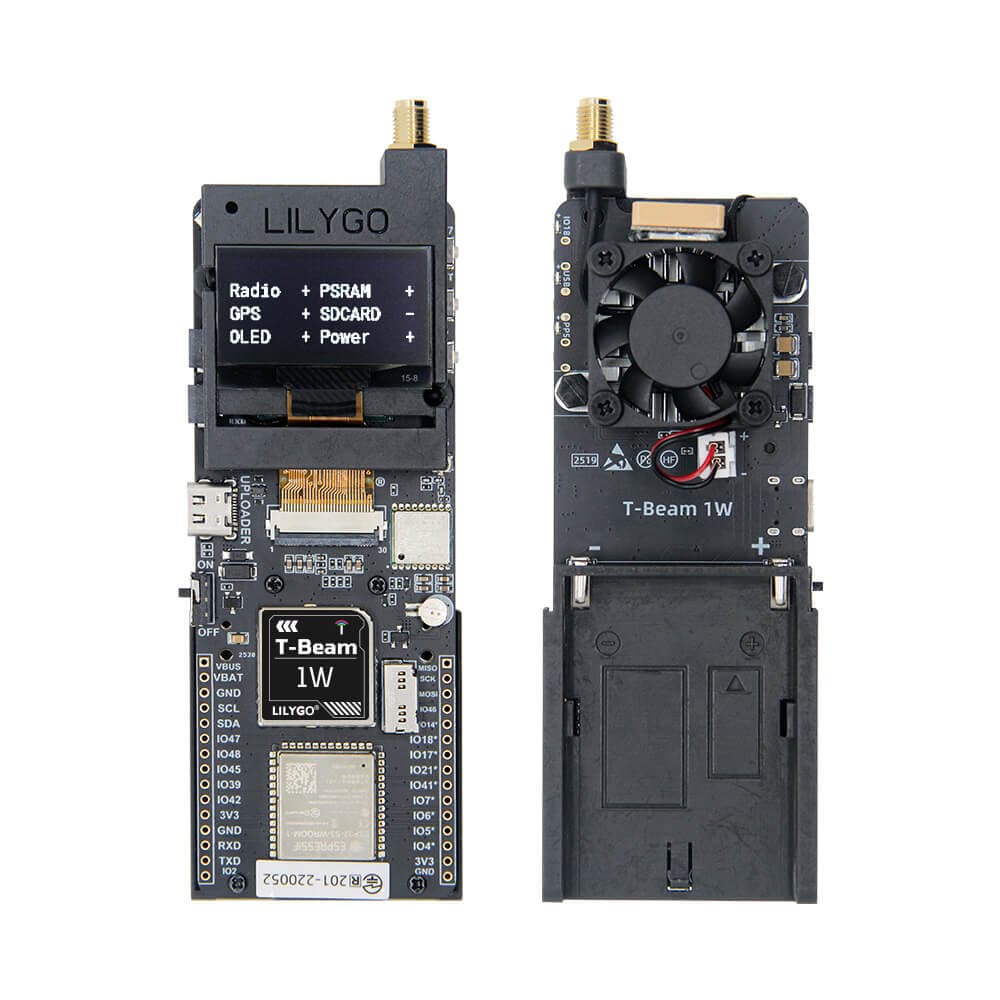

# LILYGO T-Beam 1W

> LILYGO T-Beam 1W is an ESP32-S3 LoRa development board featuring a 1-watt LoRa power amplifier for significantly extended transmission range, with GPS support, AXP2101 PMU, and 18650 battery compatibility.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$47.32
- **Product Readiness:** developer
- **CPU:** ESP32-S3FN8 (ESP32-53FN8)
- **CPU Architecture:** Xtensa LX7 dual-core
- **PSRAM:** 8MB
- **Flash:** 16MB
- **USB:** USB-C
- **Power:** 5V + Li-Ion 18650
- **Operating Voltage:** 3.3V
- **Battery:** 18650 (user-supplied)
- **Antenna:** SMA

## Connectivity

- **Wifi:** 802.11 b/g/n
- **Bluetooth:** BLE 5.0
- **Lora:** SX1262 433/868/915MHz 1W

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

meshtastic

## Use Cases

- long-range-iot
- meshtastic-mesh
- aprs-tracking
- rural-sensor-network
- lora-telemetry

## Components

- **ESP32-S3FN8** (mcu): ESP32-S3 dual-core LX7 microprocessor with 16MB flash, 8MB PSRAM, Wi-Fi, and Bluetooth 5 LE — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-beam-1w&source=md-export)
- **SX1262** (radio): Semtech SX1262 sub-GHz LoRa transceiver with integrated 1-watt power amplifier for maximum transmission range — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fsemtech.com%2Fuploads%2Fdocuments%2FDS_SX1261-2_V2.1.pdf&ref=openhardware.directory&product=lilygo-t-beam-1w&source=md-export)
- **AXP2101** (pmu): AXP2101 PMU for 18650 battery charging, power regulation, and power management across the board — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.x-powers.com%2Fen.php%2FInfo%2Fproduct_detail%2Farticle_id%2F95&ref=openhardware.directory&product=lilygo-t-beam-1w&source=md-export)

## Protocols

- **I2C**
- **SPI**
- **UART**
- **GPIO**

## Description

## Overview

The LILYGO T-Beam 1W is a high-power variant of the T-Beam platform, featuring a 1-watt (30 dBm) LoRa power amplifier that dramatically extends the transmission range compared to standard LoRa boards. Built on the ESP32-S3 dual-core LX7 processor with 16MB flash and 8MB PSRAM, the board supports 433, 868, 915, 920, and 923 MHz frequency variants. The AXP2101 PMU manages 18650 battery power. Wi-Fi and Bluetooth 5 LE are included for local connectivity. The board supports Arduino and PlatformIO development and is compatible with Meshtastic firmware for long-range mesh networking.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-beam-1w&ref=openhardware.directory&product=lilygo-t-beam-1w&source=md-export) — $47.32

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-beam-1w&ref=openhardware.directory&product=lilygo-t-beam-1w&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGo-LoRa-Series&ref=openhardware.directory&product=lilygo-t-beam-1w&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FLilyGo-LoRa-Series%2Fblob%2Fmaster%2Fdocs%2Fen%2Ft_beam_1w%2Ft_beam_1w_hw.md&ref=openhardware.directory&product=lilygo-t-beam-1w&source=md-export)

## Tags

`esp32-s3`, `lora`, `1-watt`, `high-power`, `meshtastic`, `t-beam`, `long-range`

## Images

![LILYGO T-Beam 1W](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-beam-1w/7e4086d63cfb.jpg)
![LILYGO T-Beam 1W](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-beam-1w/19cf04e75158.jpg)
![LILYGO T-Beam 1W](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-beam-1w/a88dfc3cff43.jpg)
![LILYGO T-Beam 1W](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-beam-1w/755b7a7cabb6.jpg)
![LILYGO T-Beam 1W](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-beam-1w/56f9c764e98e.jpg)
![LILYGO T-Beam 1W](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-beam-1w/aa15f39401df.png)

> **Battery Powered:** 18650

---
