# NanoPi R4S

> FriendlyElec NanoPi R4S — RK3399-powered dual-Gigabit Ethernet router SBC with up to 4GB LPDDR4 RAM, 16GB eMMC, and microSD, popular for OpenWRT and home network gateway builds.

## Quick Facts

- **Brand:** FriendlyElec
- **Price:** ~$55
- **CPU:** Rockchip RK3399 (Cortex-A72×2 @ 1.8GHz + Cortex-A53×4 @ 1.5GHz)
- **CPU Architecture:** ARM Cortex-A72/A53 (ARMv8-A 64-bit)
- **CPU Cores:** 6
- **RAM:** 1GB / 4GB LPDDR4
- **Flash:** 16GB eMMC
- **USB:** USB 3.0, USB-C
- **Power:** 12V DC barrel jack
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 2× Gigabit Ethernet

## Use Cases

- network-router
- vpn-gateway
- home-automation
- edge-computing

## Components

- **Rockchip RK3399** (soc): Rockchip RK3399 hexa-core SoC (Cortex-A72×2 + Cortex-A53×4) with Mali-T860 GPU. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK33_Series%2F2016%2F0208%2F776.html&ref=openhardware.directory&product=friendlyelec-nanopi-r4s&source=md-export)

## Description

## Overview

The NanoPi R4S is a dedicated router-class SBC from FriendlyElec based on the hexa-core Rockchip RK3399 processor. With dual Gigabit Ethernet ports — one connected via USB 3.0 internally and one via the native PCIe Ethernet — it provides full line-rate switching for home networking, VPN routing, and gateway tasks.

Available in 1GB and 4GB LPDDR4 RAM configurations, the R4S is popular in the OpenWRT and self-hosting communities as an affordable yet powerful alternative to commercial router hardware. It ships with 16GB of eMMC storage for the OS and also includes a microSD card slot for additional storage flexibility. There is no onboard Wi-Fi or Bluetooth, which keeps interference low and power draw minimal.

Armbian provides excellent support for the R4S with both mainline and legacy kernel options. Its compact, fanless enclosure (available from FriendlyElec) makes it suitable for deployment in home racks and embedded network applications running on a standard 12V DC supply.

## Where to Buy

- [FriendlyELEC](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D284&ref=openhardware.directory&product=friendlyelec-nanopi-r4s&source=md-export) — $55.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D284&ref=openhardware.directory&product=friendlyelec-nanopi-r4s&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.friendlyelec.com%2Fwiki%2Findex.php%2FNanoPi_R4S&ref=openhardware.directory&product=friendlyelec-nanopi-r4s&source=md-export)

## Tags

`router`, `sbc`, `rk3399`, `networking`, `friendlyelec`, `nanopi`, `openwrt`, `linux-sbc`

## Images

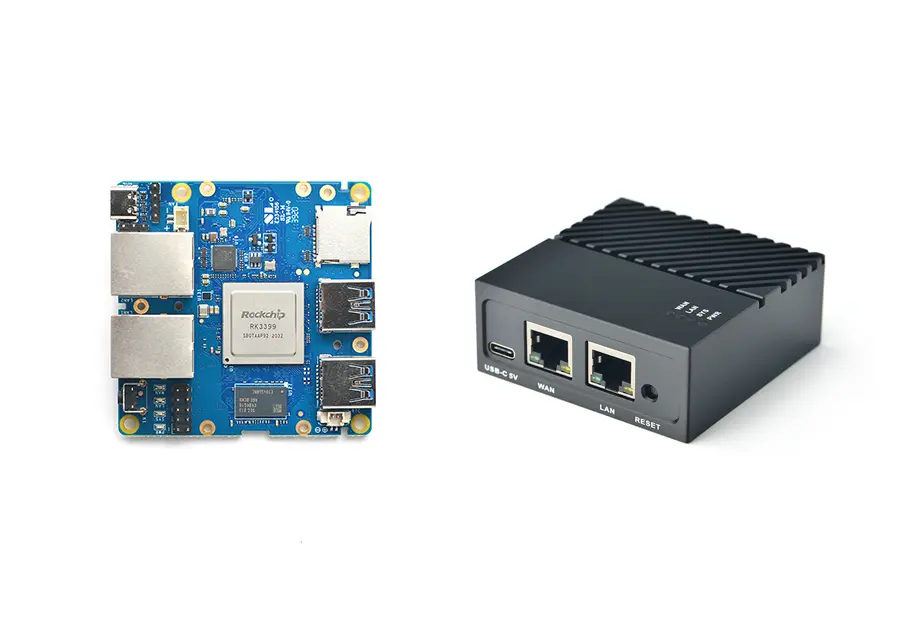

![NanoPi R4S](https://nbg1.your-objectstorage.com/openhardware-directory/entities/friendlyelec-nanopi-r4s/406b68391152.jpg)

---
[View full device page](https://openhardware.directory/devices/friendlyelec-nanopi-r4s)
