# Flipper Zero

> Portable open-source multi-tool for hardware exploration, combining Sub-GHz, NFC, RFID 125kHz, infrared, iButton, BLE, and GPIO in a pocket-sized device with a 1.4" monochrome LCD.

## Quick Facts

- **Brand:** Flipper Devices
- **Board Type:** multi-tool
- **Price:** ~$199
- **Product Readiness:** consumer
- **CPU:** STM32WB55RG ARM Cortex-M4 @ 64MHz + Cortex-M0+ @ 32MHz
- **CPU Architecture:** ARM Cortex-M4 + Cortex-M0+
- **CPU Cores:** 2
- **RAM:** 256KB SRAM
- **Flash:** 1MB
- **USB:** USB-C 2.0
- **Power:** USB-C 5V / LiPo 2100mAh
- **Operating Voltage:** 3.3V
- **Battery:** 2100mAh
- **Charging Port:** USB-C
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD up to 256GB
- **Display:** 1.4" Monochrome LCD 128x64

## Connectivity

- **Bluetooth:** BLE 5.4
- **Lora:** CC1101 315/433/868/915MHz (Sub-GHz, not LoRa)

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No
- **License:** GPL-3.0

## Certifications

FCC, CE, IC

## Compatible Firmware

flipper-zero-official, momentum, unleashed, roguemaster

## Use Cases

- security-research
- penetration-testing
- nfc-rfid-research
- sub-ghz-research
- ir-remote-control
- hardware-hacking
- ibutton-reader
- access-control
- rf-signal-analysis
- educational-platform
- prototyping

## Components

- **STM32WB55RG** (mcu): Dual-core wireless MCU: ARM Cortex-M4 @ 64MHz (application) + ARM Cortex-M0+ @ 32MHz (BLE/802.15.4 radio stack). 1MB flash, 256KB SRAM, hardware AES-256 encryption. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.st.com%2Fresource%2Fen%2Fdatasheet%2Fstm32wb55rg.pdf&ref=openhardware.directory&product=flipper-zero&source=md-export)
- **CC1101** (radio): Texas Instruments low-power sub-1GHz RF transceiver supporting 315/433/868/915 MHz bands with -20dBm TX power. Used for reading and transmitting garage remotes, weather stations, and other sub-GHz protocols. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Fproduct%2FCC1101&ref=openhardware.directory&product=flipper-zero&source=md-export)
- **ST25R3916** (nfc-reader): STMicroelectronics high-performance NFC universal device supporting ISO-14443A/B, ISO-15693, FeliCa, NFC Forum T1T-T5T, MIFARE Classic/Ultralight/DESFire, and HID iClass at 13.56MHz. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.st.com%2Fresource%2Fen%2Fdatasheet%2Fst25r3916.pdf&ref=openhardware.directory&product=flipper-zero&source=md-export)
- **ST7567** (display-driver): Sitronix monochrome LCD controller/driver for the 1.4" 128x64 pixel display. Low-power dot matrix controller with SPI interface. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.topwaydisplay.com%2Fsites%2Fdefault%2Ffiles%2F2020-05%2FST7567.pdf&ref=openhardware.directory&product=flipper-zero&source=md-export)

## Protocols

- **SPI**
- **I2C**
- **UART**
- **1-Wire**
- **USB**
- **IR**
- **NFC**
- **Sub-GHz RF**
- **125kHz RFID**
- **iButton 1-Wire**
- **GPIO**

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| 1 | — | — | — |
| 2 | — | — | — |
| 3 | — | — | — |
| 4 | — | — | — |
| 5 | — | — | — |
| 6 | — | — | — |
| 7 | — | — | — |
| 8 | — | — | — |
| 9 | — | — | — |
| 10 | — | — | — |
| 11 | — | — | — |
| 12 | — | — | — |
| 13 | — | — | — |
| 14 | — | — | — |
| 15 | — | — | — |
| 16 | — | — | — |
| 17 | — | — | — |
| 18 | — | — | — |

## Available Software

- **[Flipper Zero Official Firmware](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fflipperdevices%2Fflipperzero-firmware&ref=openhardware.directory&product=flipper-zero&source=md-export)**
- **[Momentum Firmware](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FNext-Flip%2FMomentum-Firmware&ref=openhardware.directory&product=flipper-zero&source=md-export)**
- **[Unleashed Firmware](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FDarkFlippers%2Funleashed-firmware&ref=openhardware.directory&product=flipper-zero&source=md-export)**
- **[RogueMaster Firmware](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FRogueMaster%2Fflipperzero-firmware-wPlugins&ref=openhardware.directory&product=flipper-zero&source=md-export)**
- **[Flipper App Catalog](https://openhardware.directory/r?to=https%3A%2F%2Flab.flipper.net%2F&ref=openhardware.directory&product=flipper-zero&source=md-export)**
- **[qFlipper Desktop App](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.flipper.net%2Fqflipper&ref=openhardware.directory&product=flipper-zero&source=md-export)**

## Description

## Overview

The Flipper Zero is a portable multi-tool designed for interacting with access control systems, radio protocols, and digital hardware. Built around the STM32WB55RG dual-core wireless MCU, it packs a Sub-GHz transceiver (CC1101) covering 315/433/868/915 MHz, an NFC reader (ST25R3916) supporting ISO-14443A/B, MIFARE, DESFire, FeliCa, and HID iClass, a 125kHz RFID reader for EM4100, HID, Indala, and AWID cards, infrared TX/RX for capturing and replaying remote control signals, and an iButton 1-Wire interface for Dallas, CYFRAL, and Metakom contact keys. A 13-pin GPIO header with 3.3V CMOS logic (5V tolerant) allows connecting external modules and debugging hardware over SPI, I2C, and UART.

The device ships with fully open-source firmware under the GPL-3.0 license, and circuit schematics are published as educational PDFs. A thriving community has produced several alternative firmware builds including Momentum (the successor to Xtreme), Unleashed (focused on removing regional restrictions for RF research), and RogueMaster (a comprehensive fork merging features from multiple firmwares with extra apps and animations). The official Flipper app catalog and community repositories offer hundreds of additional applications ranging from BadUSB scripts to signal analyzers.

Powered by a 2100mAh LiPo battery lasting up to 28 days on standby, the Flipper Zero features a 1.4-inch 128x64 monochrome LCD driven by an ST7567 controller, a directional pad with a center button, USB-C 2.0 for charging and data, and a microSD slot supporting up to 256GB for storing captured signals, databases, and apps. An 87dB buzzer and vibration motor provide tactile and audible feedback. The device has earned FCC, CE, and IC certifications for its radio transmitters.

## Where to Buy

- [Flipper Official Store](https://openhardware.directory/r?to=https%3A%2F%2Fflipper.net%2Fproducts%2Fflipper-zero&ref=openhardware.directory&product=flipper-zero&source=md-export) — $199.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fflipper.net%2Fproducts%2Fflipper-zero&ref=openhardware.directory&product=flipper-zero&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fflipperdevices%2Fflipperzero-firmware&ref=openhardware.directory&product=flipper-zero&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.flipper.net%2F&ref=openhardware.directory&product=flipper-zero&source=md-export)
- [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.flipper.net%2Fzero%2Fdevelopment%2Fhardware%2Fschematic&ref=openhardware.directory&product=flipper-zero&source=md-export)

## Tags

`flipper-zero`, `multi-tool`, `nfc`, `rfid`, `sub-ghz`, `infrared`, `ibutton`, `ble`, `gpio`, `open-source`, `security-research`, `hardware-hacking`, `stm32`

## Images

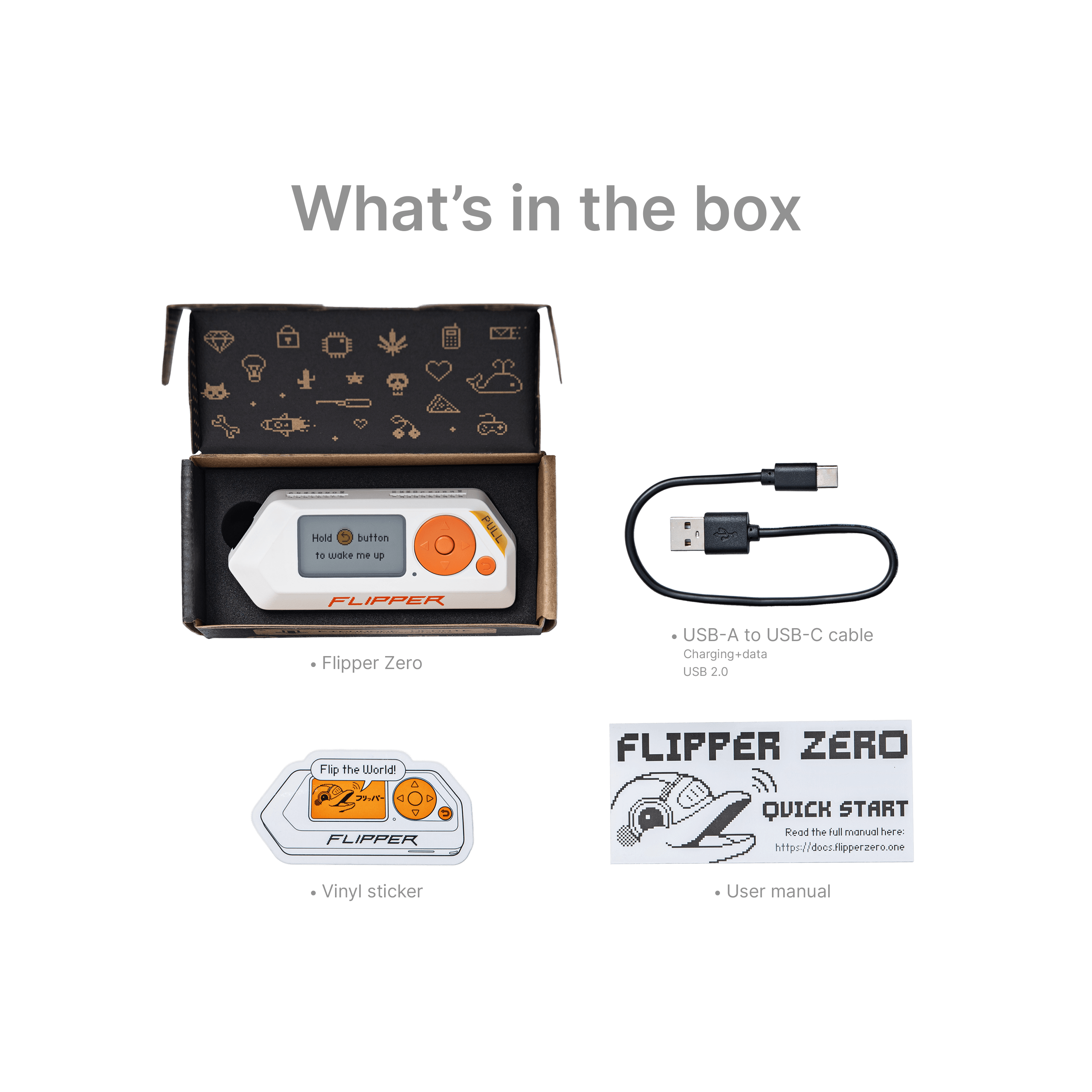

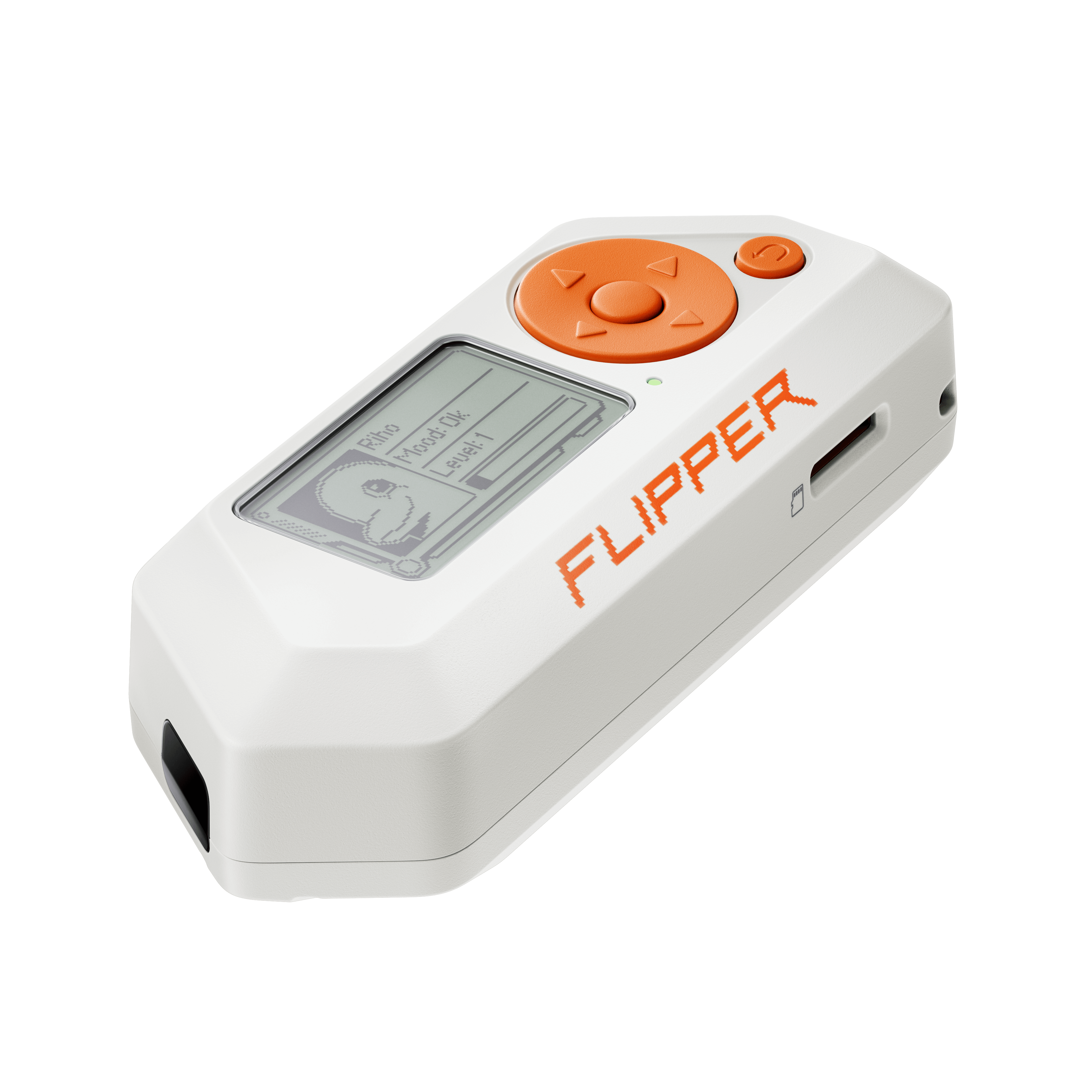

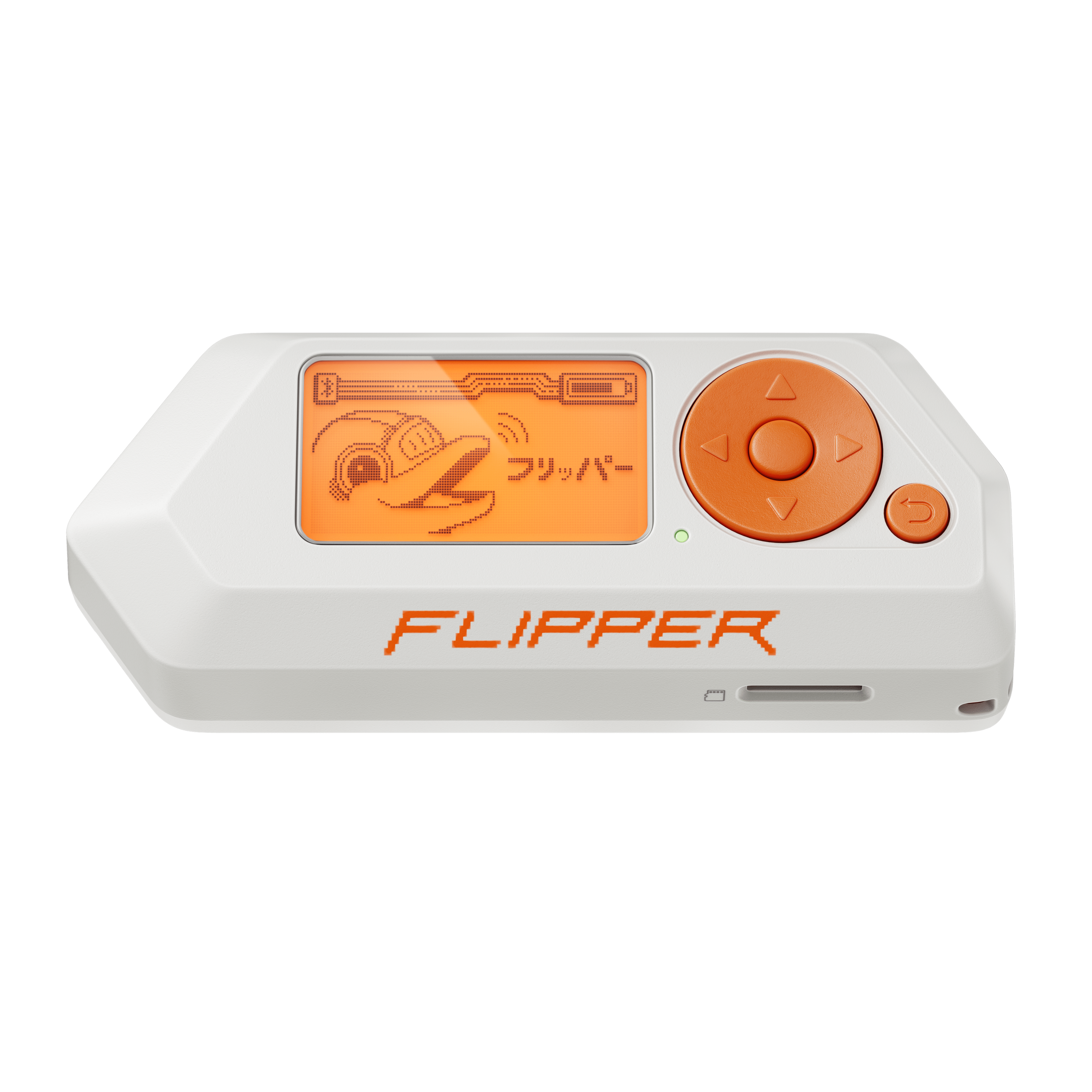

![Flipper Zero](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero/ac6ed28c93f8.png)
![Flipper Zero](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero/7515c4937611.png)

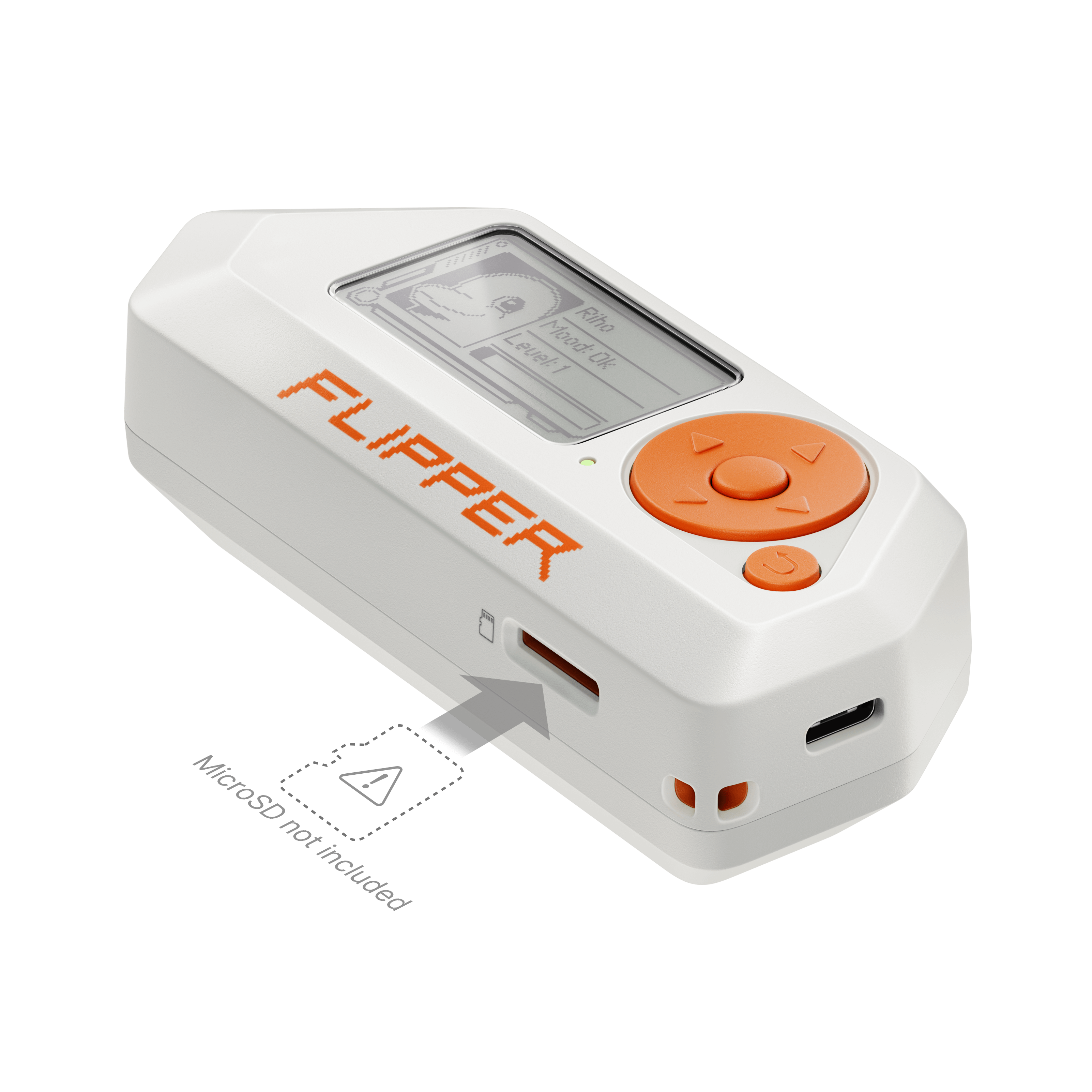

![Flipper Zero](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero/fe29b1354c43.png)
![Flipper Zero](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero/c266159b7a40.png)

> **Battery Powered:** LiPo 2100mAh

---
