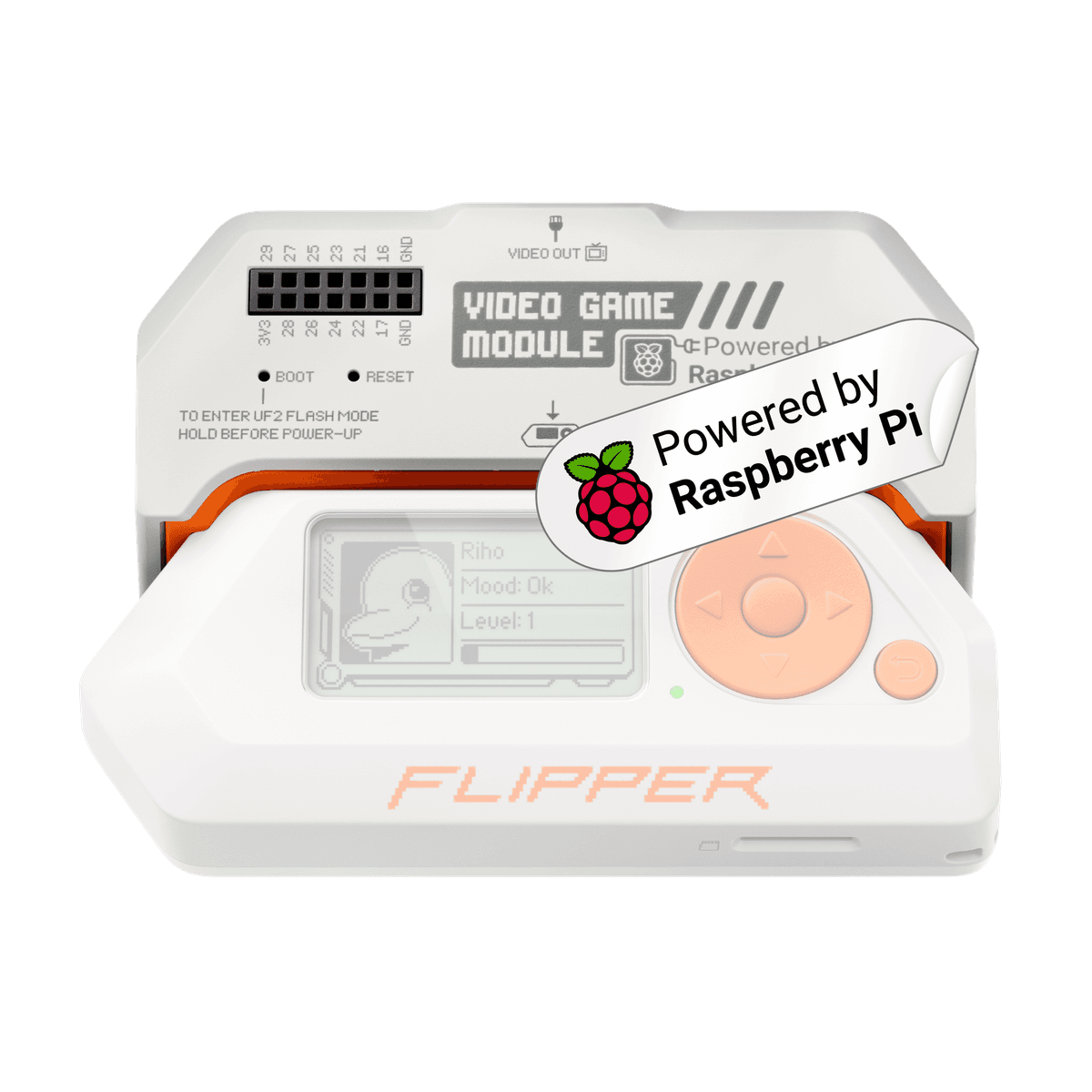

# Flipper Zero Video Game Module > RP2040-powered expansion module for Flipper Zero with DVI-D video output, 6-axis IMU motion sensor, 14-pin GPIO breakout, and USB-C. Fully open-source firmware and schematics. ## Quick Facts - **Brand:** Flipper Devices - **Board Type:** expansion-module - **Price:** ~$49 - **Product Readiness:** consumer - **CPU:** ARM Cortex-M0+ dual-core @ 133MHz (RP2040) - **CPU Architecture:** ARM Cortex-M0+ - **RAM:** 264KB SRAM - **Flash:** 16MB - **USB:** USB-C - **Power:** 5V via USB-C or Flipper Zero - **Operating Voltage:** 3.3V ## Connectivity - **Wifi:** false - **Bluetooth:** false - **Zigbee:** false - **Ethernet:** false ## Open Source - **Firmware:** Yes - **Schematics:** Yes - **PCB Layout:** No ## Compatible Firmware Flipper Zero Game Engine, pico-sdk, arduino ## Use Cases - gaming - motion-tracking - video-output - prototyping ## Components - **RP2040** (mcu): Dual-core ARM Cortex-M0+ microcontroller at 133 MHz with 264KB SRAM, programmable I/O (PIO), and USB 1.1. Handles video signal generation via PIO and runs game/application firmware. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdatasheets.raspberrypi.com%2Frp2040%2Frp2040-datasheet.pdf&ref=openhardware.directory&product=flipper-zero-video-game-module&source=md-export) - **icm-42688-p** (imu): High-precision 6-axis MEMS inertial measurement unit with 3-axis gyroscope and 3-axis accelerometer. Connected via SPI to both RP2040 and Flipper Zero for motion-controlled games and sensor applications. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Finvensense.tdk.com%2Fwp-content%2Fuploads%2F2020%2F04%2Fds-000347_icm-42688-p-datasheet.pdf&ref=openhardware.directory&product=flipper-zero-video-game-module&source=md-export) ## Protocols - **SPI** - **USB** - **DVI-D** ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | GPIO 0-7 | General purpose I/O on 14-pin breakout | — | — | | GPIO 16-17 | General purpose I/O on 14-pin breakout | — | — | | GPIO 21-22 | General purpose I/O on 14-pin breakout | — | — | | GPIO 26-28 | ADC-capable GPIO on 14-pin breakout | — | — | | GPIO 8-15, 18-20 | DVI-D video output (dedicated) | — | — | | 3.3V | 3.3V power output | — | — | | GND x2 | Ground pins | — | — | ## Accessories - Flipper Zero - DVI/HDMI cable - USB-C cable ## Available Software - **[Flipper Zero Game Engine]()** (open-source) - **[Raspberry Pi Pico SDK]()** (open-source) - **[Arduino (RP2040 core)]()** (open-source) ## Description The Flipper Zero Video Game Module is an official expansion board from Flipper Devices that transforms the Flipper Zero into a motion-controlled gaming platform with TV output. Built around the Raspberry Pi RP2040 microcontroller, it generates a DVI-D video signal at 640x480 pixels and 60 Hz using the chip's programmable I/O (PIO) subsystem, allowing you to mirror the Flipper Zero screen on any DVI/HDMI-compatible TV or monitor. The module includes a TDK ICM-42688-P 6-axis MEMS inertial measurement unit that provides high-precision gyroscope and accelerometer data over SPI. This motion sensor can be accessed by both the RP2040 and Flipper Zero, enabling motion-controlled games, air mouse functionality, and sensor-driven applications. The Flipper Zero Game Engine ships with a built-in driver for the ICM-42688-P, making it straightforward to add motion controls to custom games and apps. Beyond gaming, the Video Game Module doubles as a general-purpose RP2040 development board. It exposes 11 GPIO pins (plus power and ground) on a 14-pin breakout header, and its dedicated USB-C port connects directly to the RP2040 for independent programming and debugging. The module can run standalone without a Flipper Zero attached, accepting any Raspberry Pi Pico-compatible firmware via UF2 bootloader. Both the firmware source code and hardware schematics are fully open-source, published on GitHub under the Flipper Devices organization. ## Where to Buy - [Flipper Store](https://openhardware.directory/r?to=https%3A%2F%2Fflipper.net%2Fproducts%2Fvideo-game-module-for-flipper-zero&ref=openhardware.directory&product=flipper-zero-video-game-module&source=md-export) — $49.00 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fflipper.net%2Fproducts%2Fvideo-game-module-for-flipper-zero&ref=openhardware.directory&product=flipper-zero-video-game-module&source=md-export) - [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fflipperdevices%2Fvideo-game-module&ref=openhardware.directory&product=flipper-zero-video-game-module&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.flipper.net%2Fvideo-game-module&ref=openhardware.directory&product=flipper-zero-video-game-module&source=md-export) - [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.flipper.net%2Fvideo-game-module%2Fgpio&ref=openhardware.directory&product=flipper-zero-video-game-module&source=md-export) ## Tags `flipper-zero`, `rp2040`, `video-game-module`, `dvi-output`, `imu`, `motion-sensor`, `open-source`, `raspberry-pi-pico`, `game-development`, `expansion-module` ## Images ![Flipper Zero Video Game Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero-video-game-module/71088ba70eb0.png) ![Flipper Zero Video Game Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero-video-game-module/f750a5a06f1b.png) ![Flipper Zero Video Game Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero-video-game-module/54e8a2a33abb.png) ![Flipper Zero Video Game Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero-video-game-module/399c3c9b59d9.png) ![Flipper Zero Video Game Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero-video-game-module/07620c81f680.jpg) ![Flipper Zero Video Game Module](https://nbg1.your-objectstorage.com/openhardware-directory/entities/flipper-zero-video-game-module/5b0ec9551393.jpg) --- [View full device page](https://openhardware.directory/devices/flipper-zero-video-game-module)
