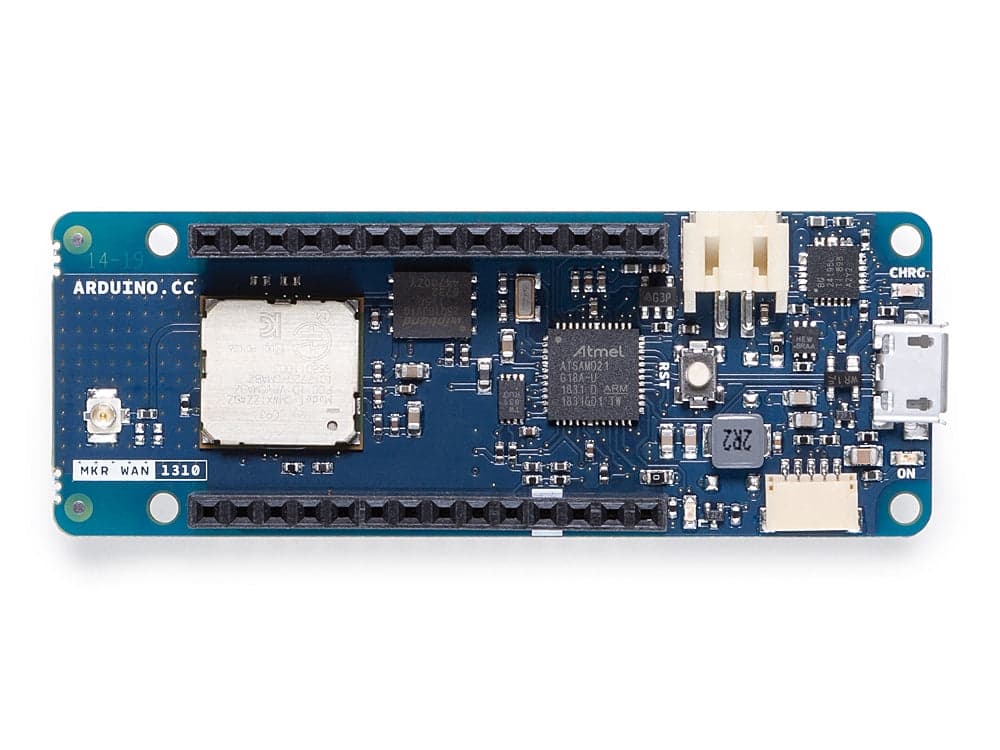

# Arduino MKR WAN 1310 > LoRa-enabled IoT board with SAMD21 ARM Cortex-M0+ at 48MHz, Murata CMWX1ZZABZ LoRa module, ECC508 crypto chip, 2MB SPI flash, onboard LiPo charger, and 104\u00b5A low-power mode — designed for long-range, battery-powered IoT sensor networks. ## Quick Facts - **Brand:** Arduino - **Board Type:** dev-board - **Price:** ~$44.5 - **Product Readiness:** consumer - **CPU:** ARM Cortex-M0,@ 48MHz (SAMD21) - **CPU Architecture:** ARM Cortex-M0+ - **CPU Cores:** 1 - **RAM:** 32KB SRAM - **Flash:** 256KB,2MB SPI Flash - **USB:** Micro-USB - **Power:** 5V via Micro-USB or 3.7V LiPo - **Operating Voltage:** 3.3V - **Dimensions:** 61.5 × 25mm - **Weight:** 10g - **Antenna:** U.FL/IPEX - **SD Card:** No ## Connectivity - **Lora:** Murata CMWX1ZZABZ 868, 915MHz ## Open Source - **Firmware:** Yes - **Schematics:** Yes - **PCB Layout:** No ## Compatible Firmware arduino ## Use Cases - remote-sensor-nodes - environmental-monitoring - iot - smart-agriculture ## Components - **ATSAMD21G18A** (mcu): Microchip SAMD21 ARM Cortex-M0+ at 48MHz with 256KB flash, 32KB SRAM, and native USB. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fww1.microchip.com%2Fdownloads%2Fen%2FDeviceDoc%2FSAM_D21_DA1_Family_DataSheet_DS40001882F.pdf&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) - **CMWX1ZZABZ** (sensor): Murata CMWX1ZZABZ-078 LoRa module with STM32L072CZ + SX1276 for LoRaWAN communication at 868/915MHz. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.murata.com%2Fen-us%2Fproducts%2Fconnectivitymodule%2Flpwa%2Foverview%2Flineup%2Ftype-abz-078&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) - **ATECC508A** (sensor): Microchip ATECC508A for hardware TLS/SSL and LoRaWAN OTAA key storage. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fww1.microchip.com%2Fdownloads%2Fen%2FDeviceDoc%2F20005927A.pdf&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) ## Protocols - **SPI**: MOSI: D8, MISO: D10, SCK: D9 - **I2C**: SDA: D11, SCL: D12 - **UART**: TX: D14, RX: D13 ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | D0 | Digital I/O | | digital-input, digital-output, pwm | | D1 | Digital I/O | | digital-input, digital-output, pwm | | D2 | Digital I/O | | digital-input, digital-output, pwm | | D3 | Digital I/O | | digital-input, digital-output, pwm | | D4 | Digital I/O | | digital-input, digital-output, pwm | | D5 | Digital I/O | | digital-input, digital-output, pwm | | D6 | Digital I/O | | digital-input, digital-output | | D7 | Digital I/O | | digital-input, digital-output | | A0 | Analog Input / DAC | ADC | adc, dac, digital-input, digital-output | | A1 | Analog Input | ADC | adc, digital-input, digital-output | | A2 | Analog Input | ADC | adc, digital-input, digital-output | | A3 | Analog Input | ADC | adc, digital-input, digital-output | | A4 | Analog Input | ADC | adc, digital-input, digital-output | | A5 | Analog Input | ADC | adc, digital-input, digital-output | | A6 | Analog Input | ADC | adc, digital-input, digital-output | ## Description ## Overview The Arduino MKR WAN 1310 is purpose-built for long-range, low-power IoT applications using LoRaWAN connectivity. It pairs the SAMD21 ARM Cortex-M0+ at 48MHz with a Murata CMWX1ZZABZ LoRa module (based on the Semtech SX1276) for communication distances up to 10+ kilometers in rural areas and several kilometers in urban environments. A standout feature is its ultra-low power consumption — just 104µA in sleep mode when properly configured, making it ideal for battery-powered field deployments lasting months or years. The 2MB onboard SPI flash stores sensor data for logging and OTA firmware updates, while the ECC508 crypto chip provides hardware-secured LoRaWAN authentication. With onboard LiPo charging, 8 digital I/O pins, 7 analog inputs, and Arduino Cloud LoRa support, the MKR WAN 1310 is the easiest way to build professional LoRaWAN sensor nodes for agriculture, environmental monitoring, smart city infrastructure, and industrial asset tracking. ## Where to Buy - [Arduino Store (US)](https://openhardware.directory/r?to=https%3A%2F%2Fstore-usa.arduino.cc%2Fproducts%2Farduino-mkr-wan-1310&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) — $44.50 - [Arduino Store (EU)](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Farduino-mkr-wan-1310&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) — €49.00 - [DigiKey](https://openhardware.directory/r?to=https%3A%2F%2Fwww.digikey.com%2Fen%2Fproducts%2Fdetail%2Farduino%2FMKRWAN1310WANT%2F13993133&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) — $48.00 - [Mouser](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2FProductDetail%2FArduino%2FMKRWAN1310WANT&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) — $48.00 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Farduino-mkr-wan-1310&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fhardware%2Fmkr-wan-1310%2F&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fresources%2Fdatasheets%2FMKRWAN1310WANT-datasheet.pdf&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) - [schematics](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fresources%2Fschematics%2FMKRWAN1310WANT-schematics.pdf&ref=openhardware.directory&product=arduino-mkr-wan-1310&source=md-export) ## Tags `arduino`, `mkr`, `lora`, `lorawan`, `iot`, `low-power`, `samd21`, `crypto` ## Images ![Arduino MKR WAN 1310](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-mkr-wan-1310/ecec44efbcde.jpg) --- [View full device page](https://openhardware.directory/devices/arduino-mkr-wan-1310)
