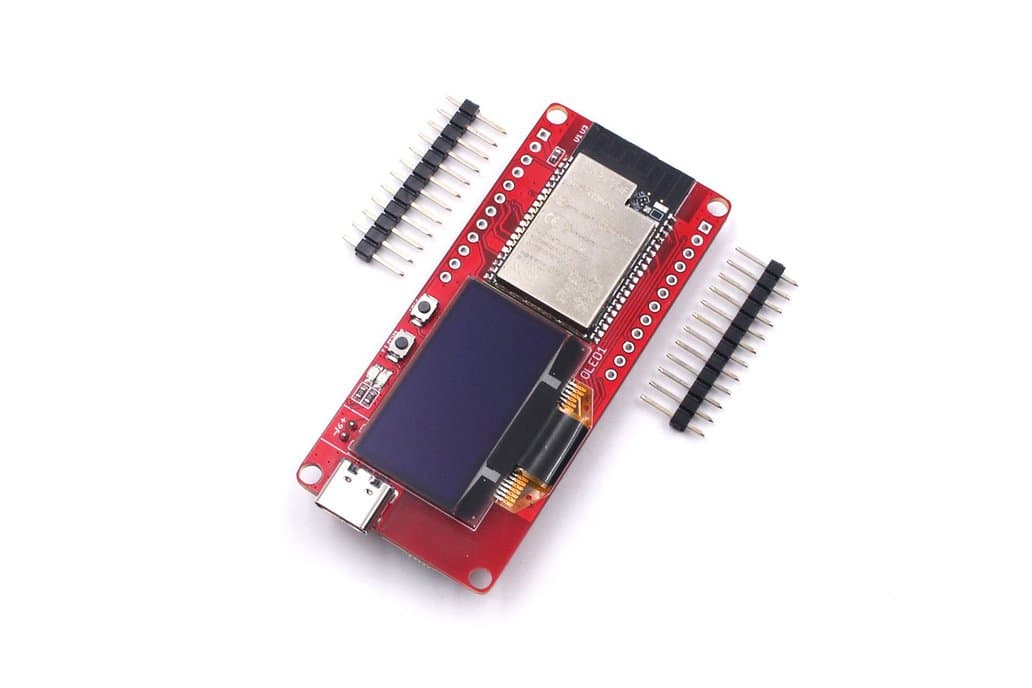

Makerfabs ESP32 UWB Pro with Display
ESP32-WROVER development board with Decawave DWM1000 UWB module for centimeter-accurate indoor positioning and ranging, featuring a 1.3\" OLED display and LiPo battery charging.
$54.80
Tap any value to browse matching devices
Specifications
Components
Xtensa LX6 dual-core @ 240MHz with 4MB flash, 8MB PSRAM, WiFi 802.11 b/g/n and Bluetooth 4.2 + BLE.
Decawave DWM1000 IEEE 802.15.4-2011 UWB module based on the DW1000 IC, supporting channels 2 and 5 with precision ranging up to 200m and 10cm accuracy.
Solomon Systech SSD1306 OLED driver IC controlling the 1.3-inch 128×64 monochrome OLED display via I2C interface.
Bus Interfaces
GPIO Map
Overview
The Makerfabs ESP32 UWB Pro with Display is an updated version of the ESP32 UWB Pro that adds an onboard 1.3-inch OLED display and LiPo battery charger. It pairs an ESP32-WROVER module with a Decawave DWM1000 ultra-wideband transceiver to enable secure, reliable ranging and precision sensing with centimeter-level accuracy at distances up to 200 meters (line of sight).
The board is designed for indoor positioning systems (RTLS), asset tracking, and distance measurement applications. Using UWB channels 2 and 5, the DWM1000 module provides IEEE 802.15.4-2011 compliant communication with time-of-flight ranging that is resistant to multipath interference — a significant advantage over WiFi or Bluetooth-based positioning approaches. The onboard OLED display shows real-time ranging data without requiring an external monitor.
With built-in WiFi and Bluetooth 4.2 from the ESP32-WROVER, the board can relay positioning data over the network to a central server or dashboard. The integrated LiPo battery connector and charger circuit enable portable operation as a mobile tag or anchor node. Multiple boards can work together — configured as anchors and tags — to create a complete indoor positioning system using the provided Arduino example code for both indoor and outdoor positioning scenarios.
Use Cases
5Indoor Positioning
Real-time indoor location tracking and positioning systems (RTLS) using UWB, BLE, or WiFi for asset and personnel tracking in warehouses, factories, and buildings.
Asset Tracking
Tracking the location and status of physical assets like vehicles, packages, and equipment.
Distance Measurement
Measuring distances using ultrasonic, laser, radar, or time-of-flight sensors.
UWB Development
Development and prototyping of Ultra-Wideband applications including ranging, positioning, secure access, and peer-to-peer communication.
Prototyping
Rapid hardware prototyping and proof-of-concept development with breadboard-friendly form factors and accessible development environments.
