LILYGO T-Display P4
High-performance ESP32-P4 development board with dual-core 360MHz RISC-V, 4.1" AMOLED or 4.05" TFT touchscreen, 2MP camera, SX1262 LoRa, GPS, 9-axis IMU, and ESP32-C6 for Wi-Fi 6 and Bluetooth 5.
$97.40
Tap any value to browse matching devices
Specifications
Components
Wi-Fi 6 and Bluetooth 5 LE wireless co-processor
Long-range LoRa radio transceiver available in 868/915/920MHz variants
Multi-constellation GNSS module for GPS positioning
9-axis MEMS IMU with accelerometer, gyroscope, and magnetometer plus onboard DMP
2MP MIPI camera sensor capable of 1080p@30fps and 720p@60fps
Linear Li-ion battery charge controller for 18650 cell charging
I2C battery gas gauge for accurate state-of-charge measurement
16-bit I2C GPIO expander providing 24-pin expansion
Bus Interfaces
Overview

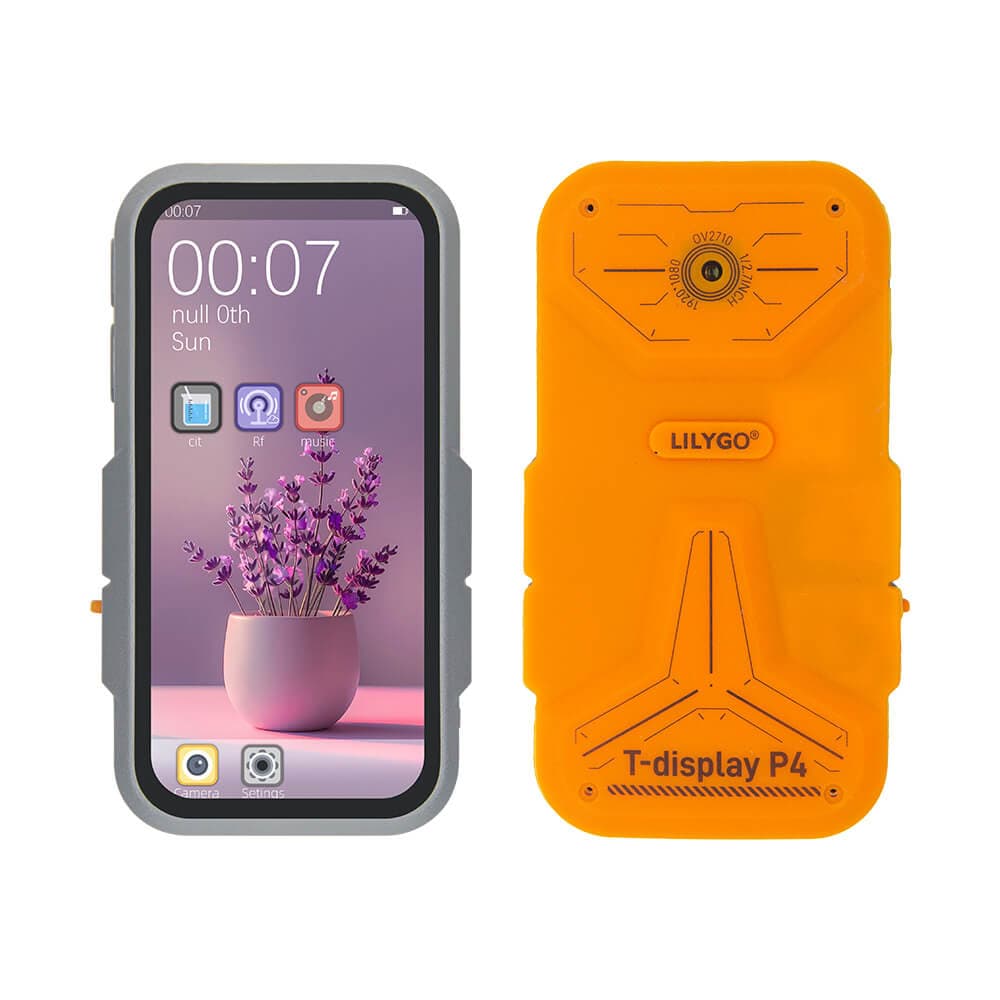

The LILYGO T-Display P4 is a powerful development board built around Espressif's ESP32-P4, a dual-core 360MHz RISC-V chip with a secondary 40MHz core, paired with an ESP32-C6 co-processor for Wi-Fi 6 and Bluetooth 5 LE. It features 16MB Flash and 32MB PSRAM, a 4.1" AMOLED or 4.05" TFT capacitive touchscreen (punch-hole design), a 2MP OV2710 MIPI camera capable of 1080p@30fps, SX1262 LoRa module in multiple frequency variants, L76K GPS module, 9-axis ICM20948 IMU, I2S speaker and microphone, LGs4056H battery charger with BQ27220 battery gauge, and XL9535 16-bit GPIO expander. Power is managed via USB at 5V/500mA and the board measures 63×109×22mm.
Use Cases
5IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
Security Camera
WiFi-connected camera for surveillance, motion detection, and remote video monitoring.
GPS Tracking
Location tracking and navigation using GNSS satellite receivers.
Field Data Logger
Battery-powered device for recording sensor data, GPS coordinates, and environmental measurements in the field.
