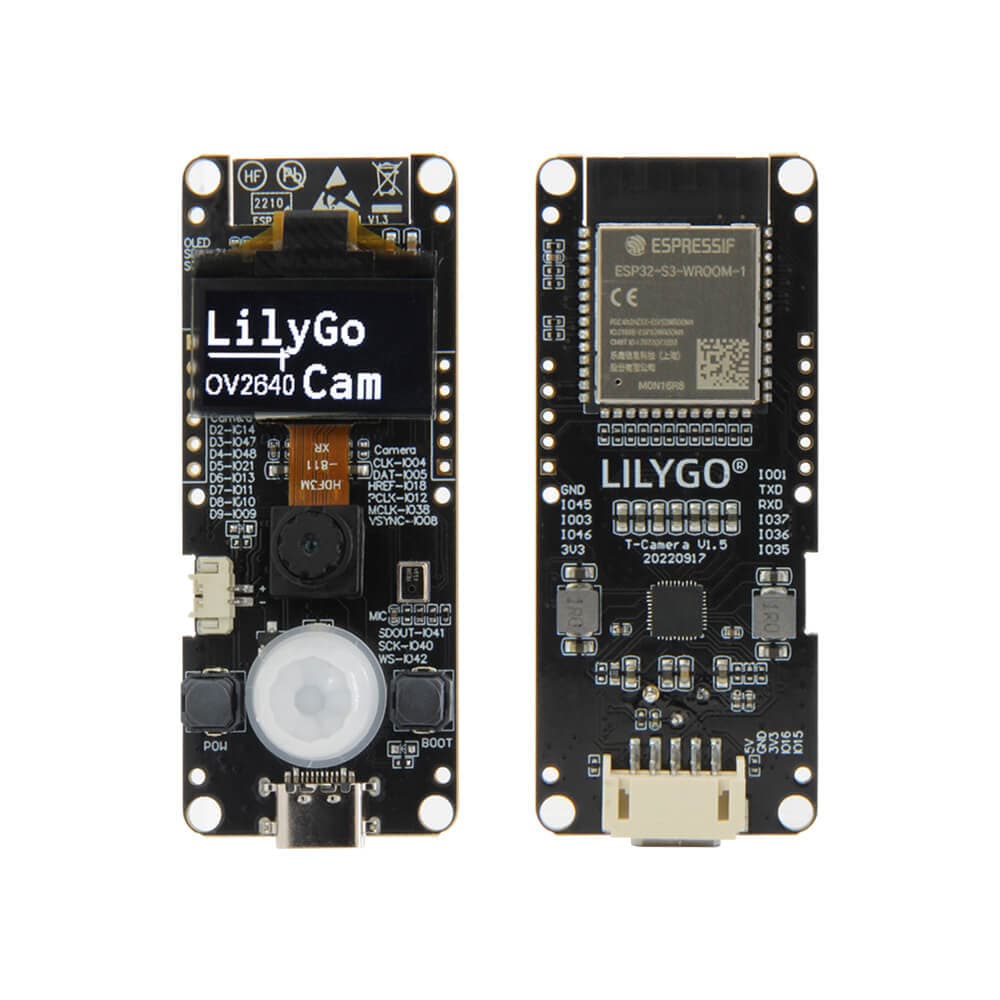

LILYGO T-Camera S3
ESP32-S3 camera development board with OV2640 2MP sensor, 0.96-inch OLED display, 16MB flash, 8MB PSRAM, WiFi, and BLE 5.0 — a ready-to-use platform for WiFi streaming cameras and computer vision projects.
$17.31
Tap any value to browse matching devices
Specifications
Components
Espressif ESP32-S3FN16R8 dual-core Xtensa LX7 at 240MHz with 16MB flash, 8MB PSRAM, WiFi, BLE 5.0, and USB OTG.
OmniVision OV2640 2-megapixel UXGA image sensor with JPEG compression and DVP interface for live video streaming.
Solomon Systech SSD1306 OLED driver for the 0.96-inch 128×64 status display via I2C.
Bus Interfaces
GPIO Map
Overview
The LILYGO T-Camera S3 combines the Espressif ESP32-S3FN16R8 with an OV2640 2-megapixel camera sensor (UXGA 1622×1200) to create a compact WiFi camera development board. The ESP32-S3's dual-core Xtensa LX7 at 240MHz, combined with 8MB PSRAM for frame buffering and 16MB flash for firmware storage, handles JPEG streaming and real-time video processing without external hardware.
The onboard 0.96-inch SSD1306 OLED (128×64) provides status output such as IP addresses, stream stats, or sensor readings. WiFi 802.11 b/g/n enables live MJPEG streaming over a local network, and BLE 5.0 supports Bluetooth proximity and configuration applications.
The board uses native USB-C on the ESP32-S3 for programming and serial debug, eliminating the need for a separate USB-UART bridge. Compatible with the ESP-WHO computer vision framework, Arduino ESP32, and PlatformIO. Popular for doorbell cameras, baby monitors, time-lapse photography, and machine vision experimentation.
Use Cases
3Security Camera
WiFi-connected camera for surveillance, motion detection, and remote video monitoring.
IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Environmental Monitoring
Monitoring environmental conditions like temperature, humidity, air quality, and weather data using remote sensors.
