ESP32-S3 Box Lite

Overview

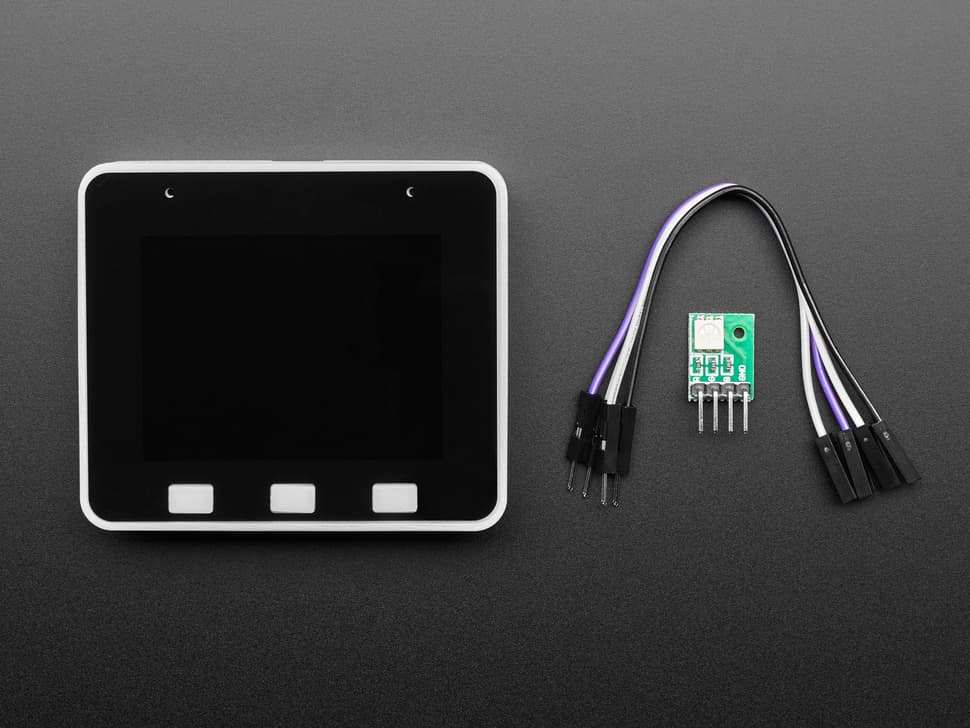

The ESP32-S3 Box Lite is Espressif's lighter-weight variant of the ESP32-S3 Box AIoT development platform. It shares the same ESP32-S3 dual-core 240 MHz SoC with 16 MB QSPI Flash and 8 MB Octal PSRAM, the same 2.4″ 320 × 240 colour touchscreen, and the same dual far-field MEMS microphones for offline voice wake-up and command recognition. The key differences are the omission of the dock stand and the replacement of capacitive software buttons with three physical mechanical buttons.

The ESP32-S3's vector AI instructions and neural-network optimised operations enable on-device wake-word detection and simple voice command recognition in both English and Chinese using Espressif's ESP-SR library. The ESP-RainMaker cloud framework allows quick IoT dashboard integration. Pmod-compatible expansion headers provide a path to external peripherals.

An onboard speaker, infrared controller, and USB-C port (for both power and JTAG debugging) complete the hardware. The Box Lite is particularly suitable for voice-assistant prototypes and smart home control panels where the dock stand is not needed and a more tactile button interface is preferred over capacitive swipes.

Espressif provides pre-built factory firmware demonstrating voice interaction and chatbot connectivity. Full hardware schematics and CAD files are published in the open-source esp-box GitHub repository.
