# ESP32-S3 Box

> Espressif AIoT development kit with ESP32-S3, a 2.4″ 320×240 capacitive touchscreen, dual microphones, speaker, 16 MB Flash, 8 MB PSRAM, WiFi, BLE 5, and Pmod expansion.

## Quick Facts

- **Brand:** Espressif
- **Board Type:** dev-board
- **Price:** ~$49.95
- **Product Readiness:** developer
- **CPU:** Xtensa LX7 dual-core @ 240 MHz (ESP32-S3)
- **CPU Architecture:** Xtensa LX7
- **CPU Cores:** 2
- **RAM:** 512 KB SRAM + 8 MB PSRAM
- **PSRAM:** 8MB OPI
- **Flash:** 16MB
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **Display:** 2.4" IPS TFT capacitive touch 320 × 240

## Connectivity

- **Wifi:** 2.4GHz 802.11 b/g/n
- **Bluetooth:** BLE 5.0

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

esp-idf, arduino, micropython

## Use Cases

- smart-home
- voice-assistant
- smart-home-dashboard
- iot

## Components

- **ESP32-S3** (mcu): Espressif ESP32-S3 dual-core 240 MHz Xtensa LX7 with 512 KB SRAM, vector AI instructions, native USB OTG, 2.4 GHz WiFi, and BLE 5. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=esp32-s3-box&source=md-export)
- **Microphone (dual MEMS)** (microphone): Dual far-field MEMS microphones for offline voice wake-up and command recognition. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-s3_datasheet_en.pdf&ref=openhardware.directory&product=esp32-s3-box&source=md-export)

## Protocols

- **I2C**: SDA: GPIO1, SCL: GPIO2
- **SPI**: MOSI: GPIO35, MISO: GPIO36, SCK: GPIO37
- **UART**: TX: GPIO43, RX: GPIO44
- **USB**:

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO1 | SDA | I2C | I2C, GPIO |
| GPIO2 | SCL | I2C | I2C, GPIO |
| GPIO35 | MOSI | SPI | SPI |
| GPIO36 | MISO | SPI | SPI |
| GPIO37 | SCK | SPI | SPI |
| GPIO43 | TX | UART | UART |
| GPIO44 | RX | UART | UART |
| GPIO2 | I2S_CLK | I2S | I2S, GPIO |
| GPIO3 | I2S_WS | I2S | I2S, GPIO |
| GPIO6 | I2S_DOUT | I2S | I2S, GPIO |

## Available Software

- **[ESP-IDF](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.espressif.com%2Fprojects%2Fesp-idf%2F&ref=openhardware.directory&product=esp32-s3-box&source=md-export)**
- **[ESP-BOX Factory Firmware](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fespressif%2Fesp-box&ref=openhardware.directory&product=esp32-s3-box&source=md-export)**

## Description

## Overview

The ESP32-S3 Box (ESP-BOX) is Espressif's comprehensive AIoT development platform based on the ESP32-S3 dual-core 240 MHz SoC. Unlike bare dev boards, the Box is a complete enclosed device with a 2.4″ colour touchscreen, dual far-field microphones for offline voice wake-up and command recognition, and a speaker — all the ingredients for a smart home controller or voice-enabled IoT hub.

The ESP32-S3 brings meaningful AI acceleration compared to earlier ESP32 variants: vector instructions and a dedicated neural-network engine allow wake-word detection and simple on-device inference without cloud connectivity. Commands can be configured in both English and Chinese using Espressif's ESP-SR library, and the ESP-RainMaker framework connects the Box to cloud dashboards with minimal code.

Hardware expansion is available via two Pmod-compatible headers, enabling connection to a wide range of Digilent Pmod peripherals. An infrared controller lets the Box act as a universal remote. A USB-C port provides power and JTAG debugging. Internally the board carries 16 MB of QSPI Flash and 8 MB of Octal PSRAM, giving ample space for a full ESP-IDF application, LVGL GUI, and audio buffers simultaneously.

Espressif ships the Box with pre-built factory firmware demonstrating voice interaction, chatbot integration, and touch-UI navigation. Full hardware schematics and CAD files are available in the open-source GitHub repository.

## Where to Buy

- [Adafruit](https://openhardware.directory/r?to=https%3A%2F%2Fwww.adafruit.com%2Fproduct%2F5290&ref=openhardware.directory&product=esp32-s3-box&source=md-export) — 49.95

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.adafruit.com%2Fproduct%2F5290&ref=openhardware.directory&product=esp32-s3-box&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fespressif%2Fesp-box&ref=openhardware.directory&product=esp32-s3-box&source=md-export)

## Tags

`esp32-s3`, `esp-box`, `aiiot`, `touchscreen`, `voice-recognition`, `smart-home`, `esp-idf`, `pmod`

## Images

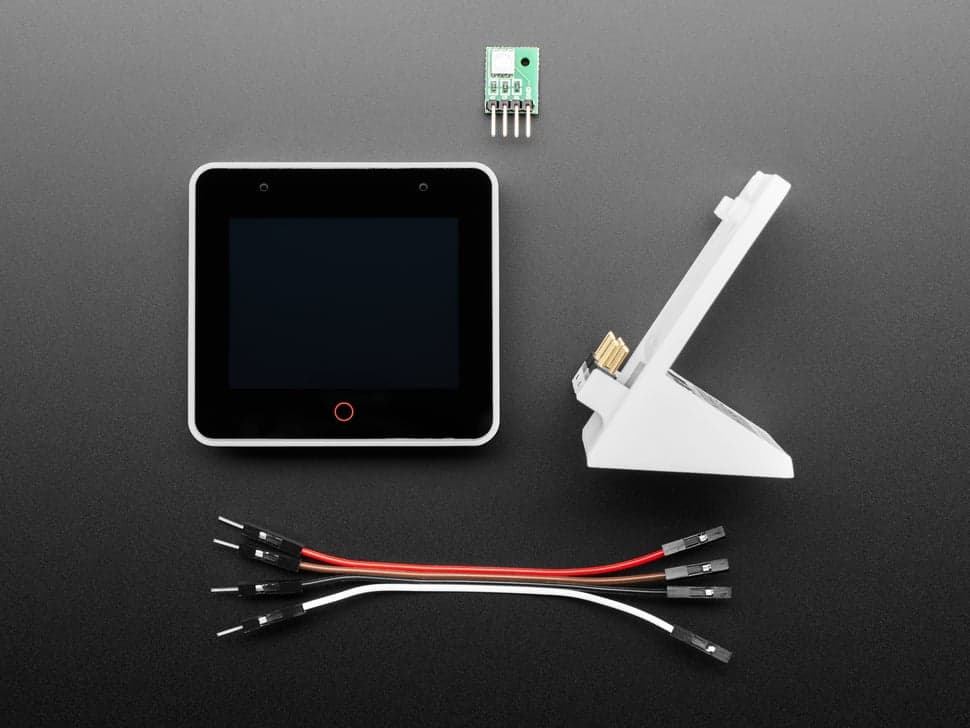

![ESP32-S3 Box](https://nbg1.your-objectstorage.com/openhardware-directory/entities/esp32-s3-box/969252abaef9.jpg)
![ESP32-S3 Box](https://nbg1.your-objectstorage.com/openhardware-directory/entities/esp32-s3-box/3c7e68c787a2.jpg)
![ESP32-S3 Box](https://nbg1.your-objectstorage.com/openhardware-directory/entities/esp32-s3-box/a50169b28b3a.jpg)

---
