# Radxa NIO 12L

> Radxa NIO 12L — MediaTek Dimensity 1200 (MT8395) octa-core SBC with 8GB/16GB LPDDR4X, 64GB/128GB eMMC, WiFi 6, Gigabit Ethernet, and USB-C, running Armbian Linux.

## Quick Facts

- **Brand:** Radxa
- **Board Type:** linux-sbc
- **Price:** ~$99
- **Product Readiness:** consumer
- **CPU:** mediatek-mt8395
- **CPU Architecture:** Cortex-A78 + Cortex-A55
- **CPU Cores:** 8
- **RAM:** 8GB/16GB LPDDR4X
- **Flash:** 64GB/128GB eMMC
- **USB:** USB-C 3.2 Gen 1
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11ax (WiFi 6)
- **Bluetooth:** BLE 5.2
- **Ethernet:** Gigabit

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

armbian

## Use Cases

- edge-computing
- edge-ai
- compact-server
- embedded-linux

## Description

## Overview

The Radxa NIO 12L is a compact single-board computer powered by the MediaTek Dimensity 1200 (MT8395) SoC, an octa-core chip combining one high-performance Cortex-A78 core at 3.0 GHz with three more Cortex-A78 cores and four Cortex-A55 efficiency cores, paired with a Mali-G77 MC9 GPU. This makes the NIO 12L one of the most powerful Dimensity-based SBCs available, bridging the gap between traditional maker boards and flagship mobile SoC performance.

The board is available with 8 GB or 16 GB of LPDDR4X RAM and 64 GB or 128 GB of eMMC 5.1 storage, with a microSD slot for additional capacity. Wireless connectivity includes WiFi 6 (802.11ax) and Bluetooth 5.2. Wired networking is provided by a Gigabit Ethernet port, and the primary data/power interface is a USB 3.2 Gen 1 Type-C port powered at 5V. An M.2 slot adds support for NVMe SSDs, significantly expanding storage options.

Armbian supports the NIO 12L with mainline Linux, enabling Radxa's board to run a full Debian-based system while benefiting from the Dimensity 1200's strong multi-core performance. The combination of high-speed RAM, fast eMMC, WiFi 6, and NVMe support makes the NIO 12L well-suited for edge computing, AI inference, compact server applications, and desktop Linux use cases.

## Where to Buy

- [Arace Tech](https://openhardware.directory/r?to=https%3A%2F%2Farace.tech%2Fproducts%2Fradxa-nio-12l&ref=openhardware.directory&product=radxa-nio-12l&source=md-export) — $99.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fradxa.com%2Fproducts%2Fnio%2F12l%2F&ref=openhardware.directory&product=radxa-nio-12l&source=md-export)

## Tags

`linux-sbc`, `armbian`, `mediatek`, `dimensity-1200`, `radxa`, `wifi6`, `gigabit`

## Images

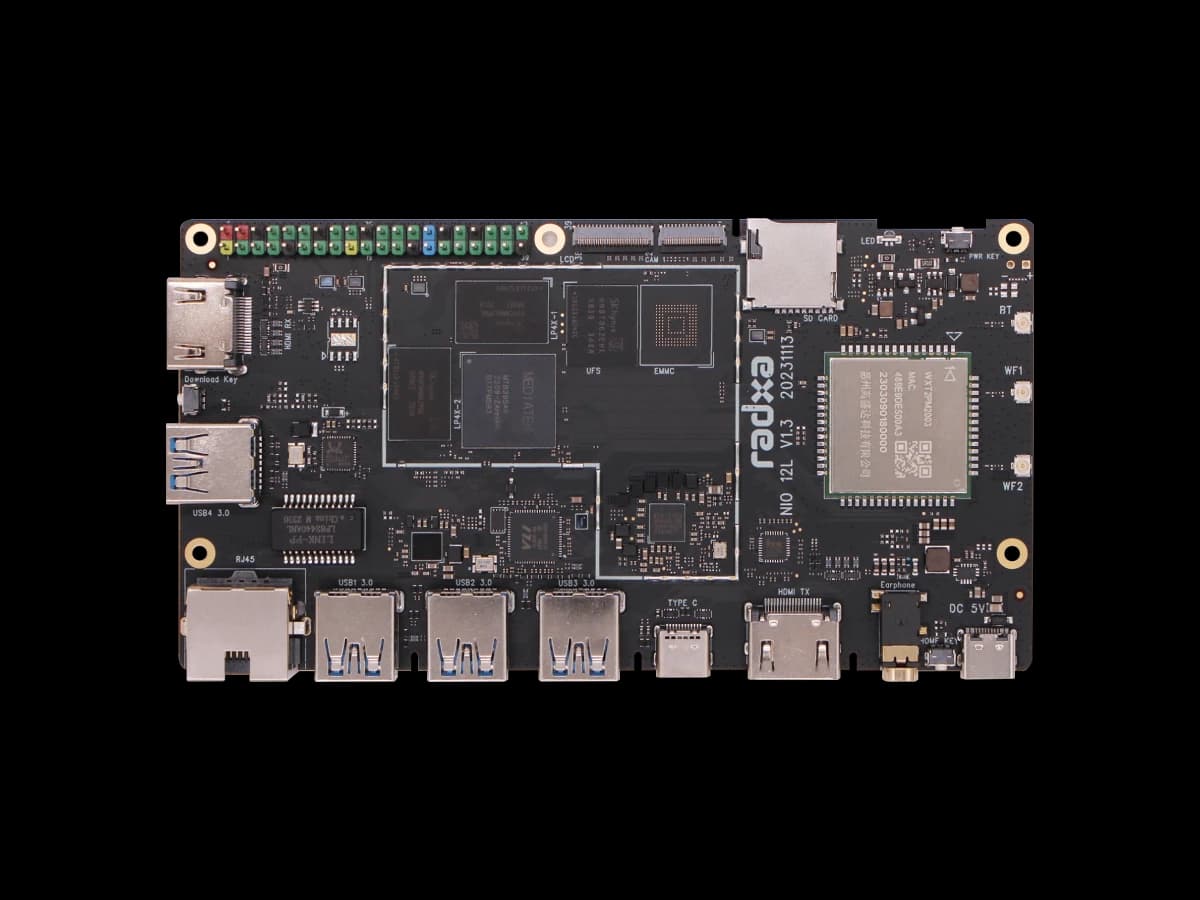

![Radxa NIO 12L](https://nbg1.your-objectstorage.com/openhardware-directory/entities/radxa-nio-12l/a90d9582a4d7.webp)
![Radxa NIO 12L](https://nbg1.your-objectstorage.com/openhardware-directory/entities/radxa-nio-12l/6f6e38fd5d8f.webp)

---
