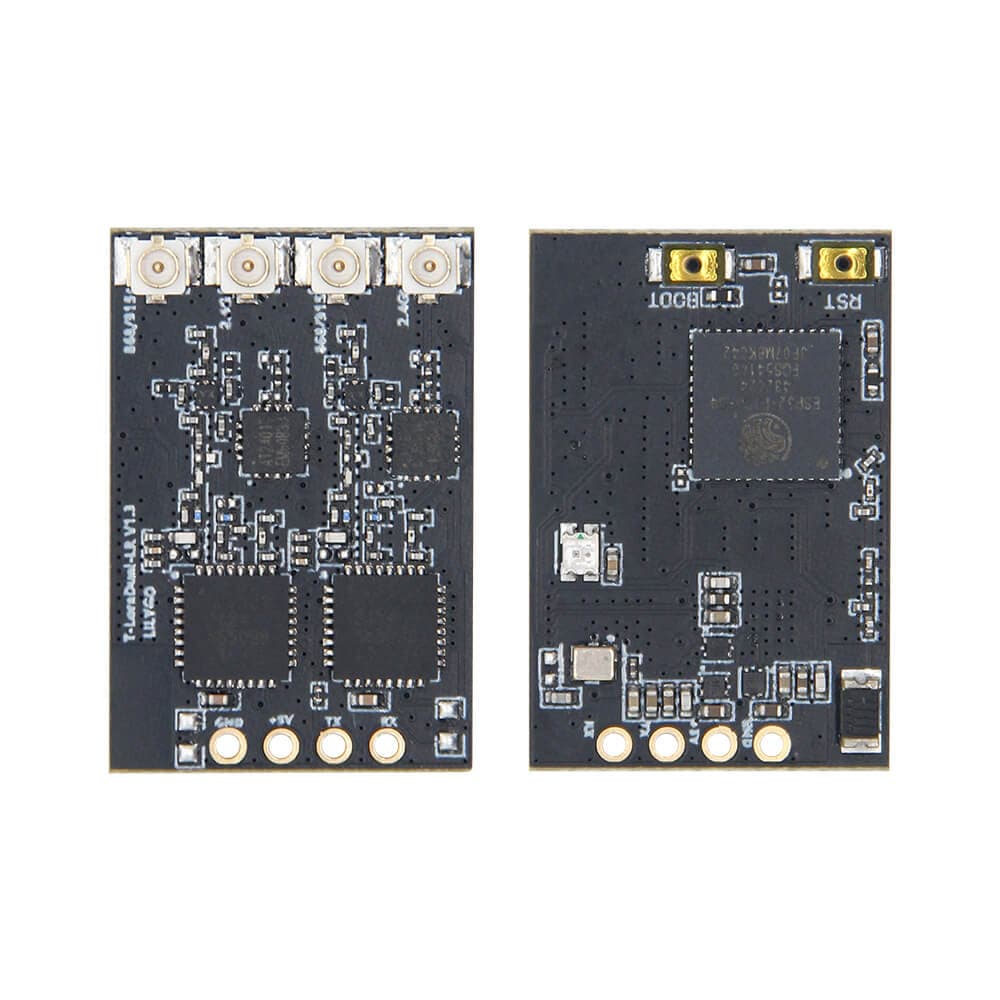

# LILYGO T-Lora Dual

> LILYGO T-Lora Dual is a compact board featuring dual LR1121 multi-band LoRa radios supporting both sub-GHz and 2.4 GHz bands, with ExpressLRS support for long-range RC and telemetry applications.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$19.04
- **Product Readiness:** developer
- **CPU:** LR1121 (dual, radio processor)
- **CPU Architecture:** Semtech proprietary
- **Flash:** N/A (radio module)
- **Power:** 3.3V
- **Operating Voltage:** 3.3V
- **Antenna:** U.FL/IPEX

## Connectivity

- **Lora:** LR1121 830-940MHz/2.4GHz dual-band

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Use Cases

- lora-mesh-networking
- expresslrs-rc-link
- long-range-telemetry
- dual-band-iot
- sub-ghz-communication

## Components

- **LR1121** (radio): Semtech LR1121 multi-band LoRa transceiver supporting sub-GHz (830–940 MHz) and 2.4 GHz bands with LoRa and GFSK modulation — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fsemtech.com%2Fuploads%2Fdocuments%2Fds_lr1121.pdf&ref=openhardware.directory&product=lilygo-t-lora-dual&source=md-export)
- **LR1121 #2** (radio): Second Semtech LR1121 multi-band LoRa transceiver enabling dual concurrent radio operation for full-duplex or multi-band applications — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fsemtech.com%2Fuploads%2Fdocuments%2Fds_lr1121.pdf&ref=openhardware.directory&product=lilygo-t-lora-dual&source=md-export)

## Protocols

- **SPI**
- **GPIO**

## Description

## Overview

The LILYGO T-Lora Dual features two Semtech LR1121 multi-band transceivers on a single board, enabling simultaneous sub-GHz (830–940 MHz) and 2.4 GHz LoRa communication. The board supports the ExpressLRS protocol, making it suitable for long-range RC link applications and high-speed telemetry. The dual-radio configuration allows concurrent operation on different frequency bands for increased throughput or redundancy in LoRa mesh networks.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-lora-dual&ref=openhardware.directory&product=lilygo-t-lora-dual&source=md-export) — $19.04

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-lora-dual&ref=openhardware.directory&product=lilygo-t-lora-dual&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-Lora-Dual&ref=openhardware.directory&product=lilygo-t-lora-dual&source=md-export)

## Tags

`lr1121`, `lora`, `dual-radio`, `expresslrs`, `sub-ghz`, `2.4ghz`, `development-board`

## Images

![LILYGO T-Lora Dual](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-lora-dual/b3686001aaaa.jpg)
![LILYGO T-Lora Dual](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-lora-dual/e16284b4d52b.jpg)
![LILYGO T-Lora Dual](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-lora-dual/e4ffb5d97b82.jpg)
![LILYGO T-Lora Dual](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-lora-dual/493a2cce1544.jpg)
![LILYGO T-Lora Dual](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-lora-dual/1fba13879530.jpg)
![LILYGO T-Lora Dual](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-lora-dual/aa15f39401df.png)

---
