# Heltec HT-M7603 Indoor LoRa Gateway

> Cost-effective 8-channel indoor LoRaWAN gateway based on MT7628 + SX1303/SX1250, supporting WiFi and Ethernet uplink with web-based configuration for TTN, ChirpStack, and custom MQTT servers.

## Quick Facts

- **Brand:** Heltec Automation
- **Board Type:** lorawan-gateway
- **Price:** ~$89
- **CPU:** MIPS 24KEc single-core @ 580MHz, HW crypto (AES-128/256)
- **CPU Architecture:** MIPS 24KEc
- **CPU Cores:** 1
- **RAM:** 64MB DDR2
- **Flash:** 16MB SPI NOR
- **USB:** USB 2.0 Host
- **Power:** 5V via DC adapter (included)
- **Operating Voltage:** 5V
- **Operating Temp:** -20°C to +70°C
- **Dimensions:** 116 × 65 × 30mm
- **Weight:** 100g
- **Antenna:** SMA female (LoRa)
- **SD Card:** No

## Connectivity

- **Wifi:** 802.11 b/g/n 2.4GHz
- **Lora:** SX1303, SX1250 470-510/863-870/902-923MHz
- **Ethernet:** 10/100 Mbps

## Use Cases

- lorawan-gateway
- iot-gateway
- smart-agriculture
- smart-building
- environmental-monitoring
- smart-city
- industrial-iot-gateway
- asset-tracking

## Components

- **MT7628** (mcu): MediaTek MT7628 system-on-chip with MIPS 24KEc core at 580MHz, integrated 2T2R 802.11n WiFi, 5-port 10/100 Ethernet PHY, USB 2.0, PCIe, and AES-128/256 hardware crypto engine. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.seeedstudio.com%2Fproducts%2F114992470%2FMT7628_datasheet.pdf&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export)
- **SX1303** (lora-baseband): Semtech SX1303 digital baseband processor for LoRa gateways, supporting 8 simultaneous channels with SF5-SF12 demodulation, fine timestamp capability for TDOA geolocation, and compatibility with SX1250/SX1255/SX1257 front-ends. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2FpdfDocs%2FSemtech_DS_SX1303_W_APP_V12.pdf&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export)
- **SX1250** (rf-transceiver): Semtech SX1250 half-duplex RF transceiver covering 150-960 MHz ISM bands with up to +22 dBm output power, built-in differential LNA, and SPI interface. Serves as the analog front-end for the SX1303 baseband processor. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2Fdatasheet%2F2%2F761%2FSemtech_10072019_DS_SX1250_V1.2-1660181.pdf&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export)

## Protocols

- **Ethernet**: RJ45: Integrated 10/100 Mbps
- **WiFi**: Antenna: Built-in 2T2R
- **SPI**: SX1303: Internal
- **USB**: USB: USB 2.0 Host

## Accessories

- power-adapter
- lora-antenna

## Description

## Overview

The Heltec HT-M7603 is a compact, wall-mountable indoor LoRaWAN gateway designed for cost-effective IoT network deployment. Built around the MediaTek MT7628 MIPS SoC and the Semtech SX1303 + SX1250 LoRa concentrator chipset, it provides 8 simultaneous uplink channels with spreading factors SF5 through SF12, achieving receive sensitivity down to -139 dBm at SF12/125kHz and transmit power up to +27 dBm.

The gateway connects to IP networks via either WiFi (802.11 b/g/n) or 10/100 Ethernet, and supports standard LoRaWAN protocol 1.0.2 (Class A and Class C) as well as custom MQTT for private network deployments. Configuration is handled through an intuitive web interface accessible over the device's built-in WiFi hotspot, making setup straightforward without requiring terminal access.

The HT-M7603 is well-suited as a primary indoor gateway for small to medium LoRa deployments or as a blind-fill gateway to extend coverage in larger installations. It supports major LoRaWAN network servers including The Things Network (TTN/TTS), ChirpStack, and Heltec's own SnapEmu IoT platform, with configurable frequency plans covering 470-510 MHz, 863-870 MHz, and 902-923 MHz bands.

## Where to Buy

- [Heltec Official Store](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fht-m7603%2F&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export) — 89.00
- [Amazon](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amazon.com%2FHeltec-HT-M7603-Ethernet-Standard-915MHz%2Fdp%2FB0D3X1JDSN&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export) — 89.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fht-m7603%2F&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FHelTecAutomation%2FHeltecDocs&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.heltec.org%2Fen%2Fgateway%2Fht-m7603%2Findex.html&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FHT-M7603%2FHT-M7603.pdf&ref=openhardware.directory&product=heltec-ht-m7603&source=md-export)

## Tags

`lorawan`, `gateway`, `iot`, `lora`, `sx1303`, `mt7628`, `heltec`, `indoor`, `8-channel`

## Images

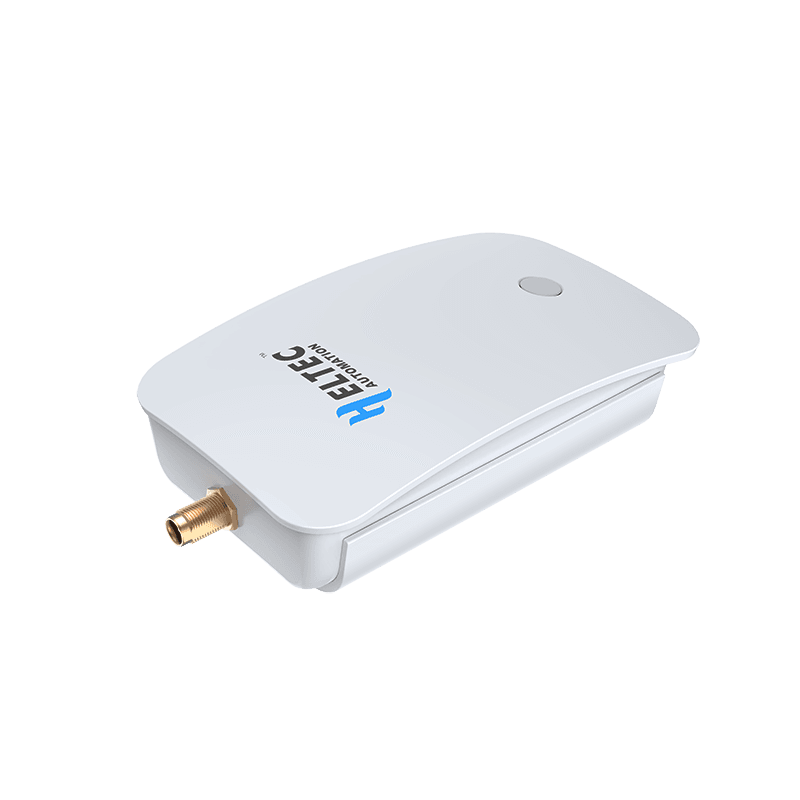

![Heltec HT-M7603 Indoor LoRa Gateway](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-ht-m7603/8759d25febc1.png)
