# Heltec HT-M02 Edge LoRa Gateway (V2)

> IP66 waterproof edge computing LoRaWAN gateway with Rockchip RK3566 quad-core Cortex-A55 SoC, SX1303+SX1250 8-channel LoRa concentrator, 2GB DDR4, 32GB eMMC, pre-installed Debian Linux with Docker, and optional LTE/WiFi/PoE connectivity.

## Quick Facts

- **Brand:** Heltec Automation
- **Board Type:** lorawan-gateway
- **Price:** ~$229
- **CPU:** ARM Cortex-A55 quad-core @ 1.8GHz, 64-bit ARMv8-A, NEON SIMD, VFPv4 FPU, Crypto Extensions, 0.8 TOPS NPU
- **CPU Architecture:** ARM Cortex-A55
- **CPU Cores:** 4
- **RAM:** 2GB DDR4
- **Flash:** 32GB eMMC 5.1
- **USB:** USB 2.0 (firmware update)
- **Power:** 5V + PoE
- **Operating Voltage:** 3.3V
- **Operating Temp:** -40°C to +85°C
- **Dimensions:** 125 × 125 × 52mm (165mm with mounting bracket)
- **Weight:** 2000g
- **Antenna:** 3x SMA female (LoRa, 4G, WiFi)
- **SD Card:** microSD (TF card) for firmware updates

## Connectivity

- **Wifi:** 802.11 b/g/n (optional)
- **Lora:** SX1303, SX1250 8-channel 433/868/915MHz
- **Ethernet:** Gigabit
- **Cellular:** LTE Cat-1, Cat-4 (optional)

## Use Cases

- lorawan-gateway
- smart-agriculture
- smart-building
- industrial-iot
- environmental-monitoring
- edge-computing
- iot-gateway

## Components

- **RK3566** (sbc): Rockchip RK3566 quad-core Cortex-A55 @ 1.8GHz with 0.8 TOPS NPU, Mali-G52 MP2 GPU, hardware crypto (AES/SHA), running Debian 10 Linux with Docker pre-installed. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fuploads%2Fpdf%2F2022.8.26%2F192%2FRK3566%2520Brief%2520Datasheet.pdf&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export)
- **SX1303** (lora-baseband): Semtech SX1303 digital baseband processor with 8-channel simultaneous LoRa reception (SF5-SF12), Fine Timestamp for TDOA geolocation, and (G)FSK modem. Pin-compatible with SX1302. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2Fdatasheet%2F2%2F761%2FSemtech_DS_SX1303_W_APP_V1_2-1919724.pdf&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export)
- **SX1250** (radio): Semtech SX1250 multi-band sub-GHz RF front end covering 150-960MHz with built-in LNA, up to +22dBm TX power, paired with SX1303 baseband for 8-channel gateway operation. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2Fdatasheet%2F2%2F761%2FSemtech_10072019_DS_SX1250_V1.2-1660181.pdf&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export)

## Protocols

- **Ethernet**: RJ45: 10/100/1000 Mbps
- **UART**: TX: Debug TX, RX: Debug RX, GND: GND
- **SPI**
- **USB**: USB: USB 2.0

## Accessories

- external-antenna
- wall-mount-kit
- power-adapter
- ethernet-cable

## Description

## Overview

The Heltec HT-M02 Edge LoRa Gateway (V2) is a rugged, industrial-grade LoRaWAN gateway designed for demanding outdoor deployments. Built around a Rockchip RK3566 quad-core Cortex-A55 processor running Debian 10 Linux with Docker pre-installed, it provides genuine edge computing capability — users can run LoRa network servers like ChirpStack or The Things Stack directly on the device, eliminating the need for a separate cloud server in LAN-based IoT deployments.

The gateway uses a Semtech SX1303 baseband processor paired with SX1250 RF front ends for 8-channel simultaneous LoRa packet reception with support for SF5-SF12 spreading factors. The SX1303's Fine Timestamp feature enables Time Difference of Arrival (TDOA) network-based geolocation, making it suitable for asset tracking and positioning applications. LoRa TX power reaches up to 26 dBm with RX sensitivity down to -139 dBm at SF12/125kHz.

Enclosed in an all-aluminum IP66 waterproof housing, the HT-M02 V2 is built for harsh environments including temperature extremes (-40 to +85 C), dust, vibration, and direct weather exposure. The fanless passive cooling design ensures long-term reliability with no moving parts. Connectivity options are modular: the base model includes Gigabit Ethernet backhaul, while optional configurations add LTE Cat.1/Cat.4 cellular, WiFi 802.11 b/g/n, and IEEE 802.3af PoE power input. A UART debug interface with standard baud rate (115200) provides low-level access for troubleshooting and development.

The device ships as a complete gateway kit including LoRa antenna, power adapter with waterproof DC connector, 3-meter waterproof Ethernet cable, wall mounting bracket, and SMA-to-N antenna adapter. It supports firmware updates via OTA or TF card and provides a local web configuration interface for easy setup without SSH access.

## Where to Buy

- [Heltec Official Store](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fht-m02-v2%2F&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export) — 229.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fheltec.org%2Fproject%2Fht-m02-v2%2F&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FHelTecAutomation%2FHeltecDocs&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.heltec.org%2Fdocs%2Fdevices%2Florawan-application%2Flora-gateway%2Fht-m02_v2%2Fquick_start&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fresource.heltec.cn%2Fdownload%2FHT-M02_V2%2FHT-M02_Edge_LoRa_Gateway_V1.1.pdf&ref=openhardware.directory&product=heltec-ht-m02-v2&source=md-export)

## Tags

`lorawan`, `gateway`, `lora`, `iot`, `edge-computing`, `outdoor`, `ip66`, `linux`, `docker`, `rockchip`

## Images

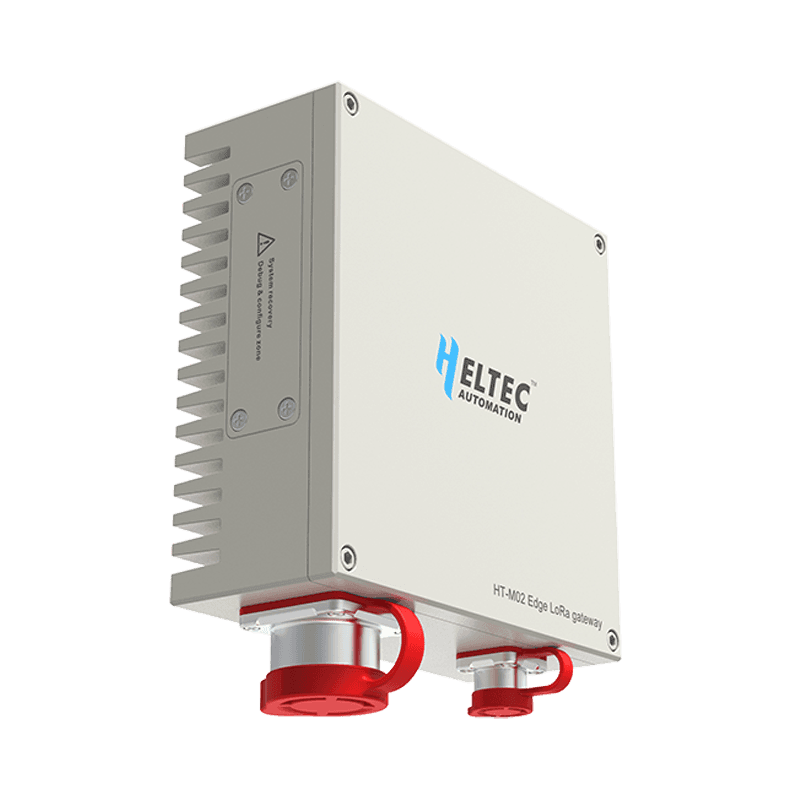

![Heltec HT-M02 Edge LoRa Gateway (V2)](https://nbg1.your-objectstorage.com/openhardware-directory/entities/heltec-ht-m02-v2/035cf7eef806.png)
