# DFRobot FireBeetle 328P BLE 4.1

> Low-power Arduino-compatible board with ATmega328P and Dialog BLE 4.1 chip, featuring 14 digital I/O, 6 analog inputs, wireless OTA programming, 25uA deep sleep, onboard LiPo charging, and dual interrupt wakeup in a compact 58x29mm form factor.

## Quick Facts

- **Brand:** DFRobot
- **Board Type:** dev-board
- **Price:** ~$18.9
- **CPU:** AVR 8-bit single-core @ 8MHz
- **CPU Architecture:** AVR 8-bit
- **CPU Cores:** 1
- **RAM:** 2KB SRAM
- **Flash:** 32KB
- **USB:** Micro-USB
- **Power:** 5V via Micro-USB or 3.7V LiPo battery
- **Operating Voltage:** 3.3V
- **Dimensions:** 58 x 29mm
- **Weight:** 20g
- **Antenna:** Built-in PCB antenna

## Connectivity

- **Bluetooth:** BLE 4.1

## Use Cases

- wearable
- battery-powered-sensor-node
- asset-tracking
- iot
- remote-sensor-nodes

## Components

- **ATmega328P** (mcu): Atmel ATmega328P 8-bit AVR microcontroller running at 8MHz with 32KB flash, 2KB SRAM, 1KB EEPROM, Arduino Pro/Pro Mini compatible. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fww1.microchip.com%2Fdownloads%2Fen%2FDeviceDoc%2FAtmel-7810-Automotive-Microcontrollers-ATmega328P_Datasheet.pdf&ref=openhardware.directory&product=dfrobot-firebeetle-328p-ble&source=md-export)
- **Dialog BLE 4.1** (mcu): Dialog Semiconductor BLE 4.1 chip supporting central and peripheral modes, up to 4-device cascade, P2P wireless programming, and 4 KB/s throughput. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.dfrobot.com%2FFireBeetle_Board-328P_with_BLE4.1_SKU__DFR0492&ref=openhardware.directory&product=dfrobot-firebeetle-328p-ble&source=md-export)

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| D0 | UART RX | UART | digital-input, digital-output |
| D1 | UART TX | UART | digital-input, digital-output |
| D2 | INT0 (wakeup) | — | digital-input, digital-output, pwm |
| D3 | INT1 (wakeup) | — | digital-input, digital-output, pwm |
| D4 | Digital I/O | — | digital-input, digital-output |
| D5 | Digital I/O | — | digital-input, digital-output, pwm |
| D6 | Digital I/O | — | digital-input, digital-output, pwm |
| D7 | Digital I/O | — | digital-input, digital-output |
| D8 | Digital I/O | — | digital-input, digital-output |
| D9 | Digital I/O | — | digital-input, digital-output, pwm |
| D10 | SPI SS | SPI | digital-input, digital-output, pwm |
| D11 | SPI MOSI | SPI | digital-input, digital-output |
| D12 | SPI MISO | SPI | digital-input, digital-output |
| D13 | SPI SCK / LED | SPI | digital-input, digital-output |
| A0 | Analog In | — | digital-input, digital-output, adc |
| A1 | Analog In | — | digital-input, digital-output, adc |
| A2 | Analog In | — | digital-input, digital-output, adc |
| A3 | Analog In | — | digital-input, digital-output, adc |
| A4 | I2C SDA | I2C | digital-input, digital-output, adc |
| A5 | I2C SCL | I2C | digital-input, digital-output, adc |

## Description

## Overview

The DFRobot FireBeetle 328P BLE 4.1 (SKU: DFR0492) combines the familiar ATmega328P microcontroller with a Dialog BLE 4.1 chip to create a low-power, Bluetooth-enabled Arduino board. Running at 3.3V and 8MHz, it is compatible with the Arduino Pro/Pro Mini bootloader and programming environment, making it an easy choice for developers who want to add BLE connectivity to Arduino projects.

The Dialog BLE 4.1 chip supports both central and peripheral modes with multi-device cascading of up to 4 devices and a maximum data throughput of 4 KB/s. A standout feature is peer-to-peer wireless programming via Bluetooth, eliminating the need for a physical USB connection during development. The "KISS connection" feature enables automatic pairing when devices are brought into close proximity.

Power efficiency is a key design goal -- the board achieves 25 microamps in power-down mode and 70 microamps with active interrupt monitoring. Dual interrupt wakeup via D2 and D3 pins allows the board to sleep until triggered by external events. The onboard lithium battery charging circuit supports 3.7V Li-ion cells with up to 400mA charge current and 600mA LDO output, making it well-suited for battery-powered wearables, beacons, and IoT sensor nodes.

## Where to Buy

- [DFRobot](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-1646.html&ref=openhardware.directory&product=dfrobot-firebeetle-328p-ble&source=md-export) — $18.90

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-1646.html&ref=openhardware.directory&product=dfrobot-firebeetle-328p-ble&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.dfrobot.com%2FFireBeetle_Board-328P_with_BLE4.1_SKU__DFR0492&ref=openhardware.directory&product=dfrobot-firebeetle-328p-ble&source=md-export)

## Images

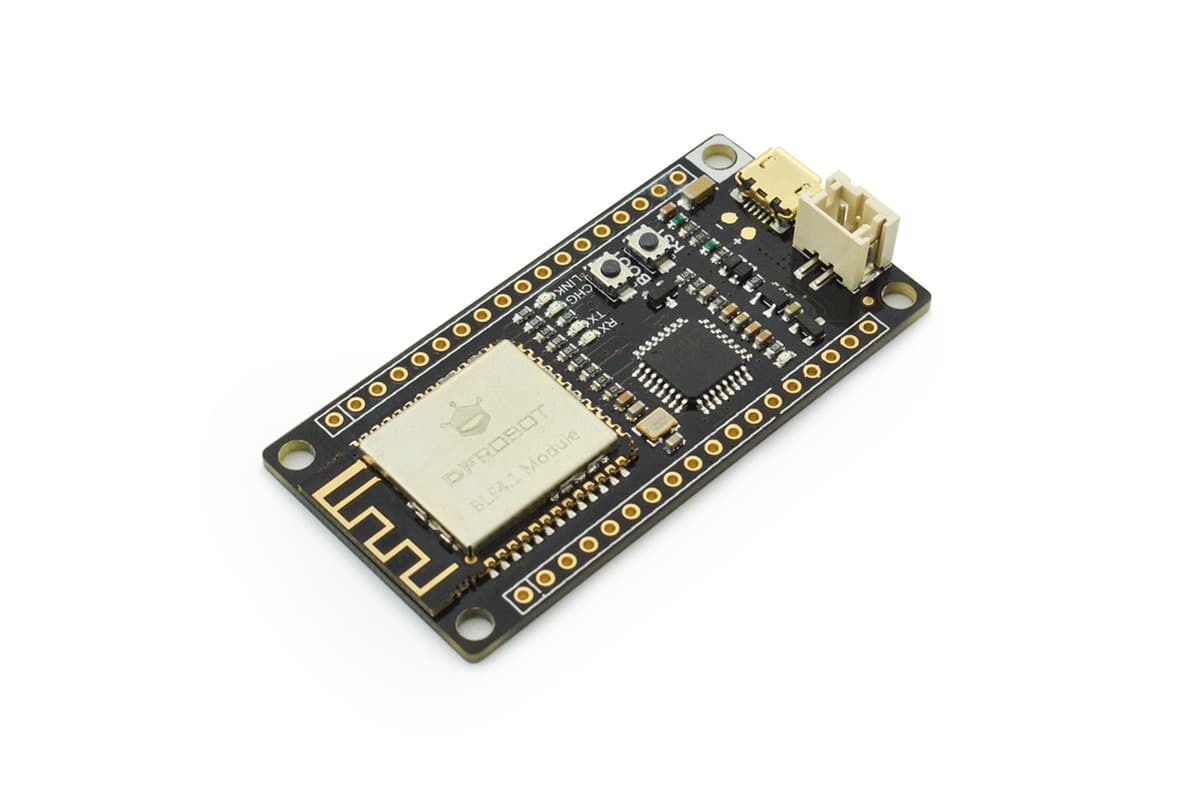

![DFRobot FireBeetle 328P BLE 4.1](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-firebeetle-328p-ble/282429cc5673.jpg)
