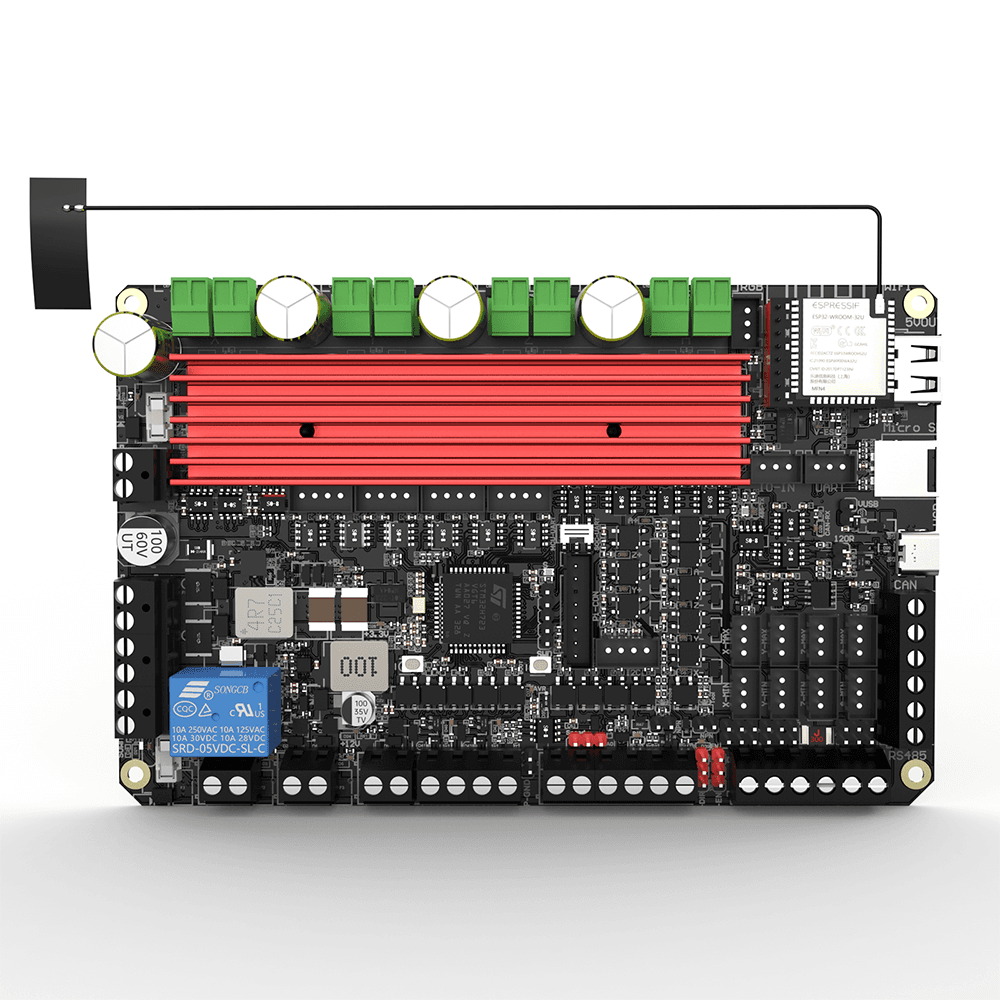

# BigTreeTech Scylla V1.0

> STM32H723-based CNC engraving machine control board with 4x TMC2160 drivers (24-56V/4.7A RMS), RepRapFirmware support, ESP32 WiFi, USB-C, RS-485, CAN bus, VFD spindle control, and relay output.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** cnc-controller
- **Price:** ~$88
- **Product Readiness:** consumer
- **CPU:** STM32H723VGT6
- **CPU Architecture:** ARM Cortex-M7 32-bit
- **CPU Cores:** 1
- **RAM:** 564KB
- **Flash:** 1MB (internal),MicroSD
- **USB:** USB Type-C
- **Power:** V-Motor DC 24-56V 10A; V-MCU DC 24-56V 3A; V-MOS DC 24-56V 10A
- **Operating Voltage:** 3.3V (MCU,ESP32); 5V (other chips)
- **Dimensions:** 164.34 × 104.65mm
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11 b/g/n via onboard ESP32 module header

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

RepRapFirmware, grblHAL, LinuxCNC (Remora, planned)

## Use Cases

- cnc
- engraving
- milling
- laser-cutting

## Components

- **TMC2160 ×4** (motor-driver): Four Trinamic TMC2160 SPI-mode stepper drivers (X/Y/Z/A) supporting 24-56V and 4.7A RMS, with integrated heatsink — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.trinamic.com%2Ffileadmin%2Fassets%2FProducts%2FICs_Documents%2FTMC2160_Datasheet_V1.10.pdf&ref=openhardware.directory&product=bigtreetech-scylla-v1-0&source=md-export)
- **Mechanical Relay** (relay): Single mechanical relay with COM, NO, and NC terminals for controlling mains or external high-current devices — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FScylla&ref=openhardware.directory&product=bigtreetech-scylla-v1-0&source=md-export)
- **ESP32 WiFi Module Header** (wireless): Onboard header for ESP32 WiFi module enabling RRF wireless access and grblHAL telnet sender channel — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32_datasheet_en.pdf&ref=openhardware.directory&product=bigtreetech-scylla-v1-0&source=md-export)

## Protocols

- **USB 2.0**
- **RS-485**
- **CAN**
- **I2C**
- **SPI**
- **UART**
- **WiFi 802.11 b/g/n**
- **PWM**
- **Modbus RTU (VFD)**

## Description

The BigTreeTech Scylla V1.0 is a professional-grade control board for CNC engraving machines, running RepRapFirmware on a high-performance 32-bit ARM Cortex-M7 STM32H723VGT6 microcontroller at 550MHz. This powerful MCU ensures smooth real-time motion control even with complex multi-axis toolpaths.

Four onboard TMC2160 stepper drivers (X, Y, Z, A axes) operate in SPI mode with DIAG support, each capable of 24-56V input and 4.7A RMS continuous current (6.7A peak). A large red heatsink covers all four drivers to maintain thermal performance under sustained heavy loads. Power architecture uses three independent inputs: V-Motor (DC 24-56V, 10A), V-MCU (DC 24-56V, 3A), and V-MOS (DC 24-56V, 10A) — all with reverse polarity and overvoltage/overcurrent protection.

The board features comprehensive I/O: 8 optoisolated endstop inputs, 3 auxiliary high-current FET outputs (AUX0/1/2) plus MIST and COOL outputs, 1 mechanical relay (COM/NO/NC), 2 probe/tool optoisolated inputs supporting PNP/NPN, VFD spindle interface (0-10V analogue + digital direction + enable), USB Type-C, RS-485 with ESD protection, CAN bus with ESD protection, I2C, UART, SPI, ESP32 WiFi module header, 1 RGB WS2812 output, and a MicroSD card slot. Currently supports RepRapFirmware with grblHAL and LinuxCNC (via Remora) planned.
