# Arduino Nicla Sense ME

> Compact 22.86mm sensor module with nRF52840 BLE 5.0 and four Bosch sensors — 9-axis IMU with AI, barometric pressure, temperature/humidity, and gas/CO2 detection. Edge AI-powered environmental and motion sensing in a coin-sized package.

## Quick Facts

- **Brand:** Arduino
- **Board Type:** module
- **Price:** ~$50
- **Product Readiness:** developer
- **CPU:** ARM Cortex-M4F @ 64MHz, FPU, DSP
- **CPU Architecture:** ARM Cortex-M4F
- **CPU Cores:** 1
- **RAM:** 256KB SRAM
- **Flash:** 1MB
- **USB:** Micro-USB
- **Power:** 3.3V via Micro-USB or battery
- **Operating Voltage:** 3.3V
- **Dimensions:** 22.86 × 22.86mm
- **Weight:** 2g
- **Antenna:** Built-in PCB antenna
- **SD Card:** No

## Connectivity

- **Bluetooth:** BLE 5.0

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

arduino

## Use Cases

- environmental-monitoring
- wearable
- iot

## Components

- **nRF52840** (mcu): Nordic nRF52840 at 64MHz handling BLE communication and application logic. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Finfocenter.nordicsemi.com%2Fpdf%2FnRF52840_PS_v1.1.pdf&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export)
- **BHI260AP** (accelerometer): Bosch BHI260AP self-learning AI smart sensor with 6-axis IMU and programmable neural network accelerator. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.bosch-sensortec.com%2Fmedia%2Fboschsensortec%2Fdownloads%2Fdatasheets%2Fbst-bhi260ap-ds000.pdf&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export)
- **BME688** (sensor): Bosch BME688 measuring temperature, humidity, barometric pressure, and gas resistance for air quality and CO2 estimation. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.bosch-sensortec.com%2Fmedia%2Fboschsensortec%2Fdownloads%2Fdatasheets%2Fbst-bme688-ds000.pdf&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export)
- **BMP390** (sensor): Bosch BMP390 barometric pressure sensor with ±0.3hPa accuracy for altitude tracking. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.bosch-sensortec.com%2Fmedia%2Fboschsensortec%2Fdownloads%2Fdatasheets%2Fbst-bmp390-ds002.pdf&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export)

## Protocols

- **SPI**: notes: Via castellated pads
- **I2C**: notes: Via castellated pads

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO0 | Digital I/O |  | digital-input, digital-output |
| GPIO1 | Digital I/O |  | digital-input, digital-output |
| GPIO2 | Digital I/O |  | digital-input, digital-output |

## Description

## Overview

The Arduino Nicla Sense ME is a tiny (22.86×22.86mm) multi-sensor module designed for environmental and motion intelligence at the edge. It integrates four Bosch Sensortec sensors: the BHI260AP smart IMU with built-in AI for motion classification, BMM150 magnetometer, BMP390 barometric pressure sensor, and BME688 4-in-1 gas sensor measuring temperature, humidity, air quality, and CO2 levels.

Powered by the nRF52840 ARM Cortex-M4F with BLE 5.0 connectivity, the Nicla Sense ME runs sensor fusion algorithms directly on the Bosch BHI260AP's neural network accelerator, offloading motion classification from the main MCU. This architecture enables always-on activity recognition, compass heading, altitude tracking, and air quality monitoring at minimal power consumption.

Compatible with the Nicla, Portenta, and MKR ecosystems, it operates standalone on battery power or plugs into carrier boards. Ideal for wearable health monitors, environmental tracking, indoor air quality stations, and predictive maintenance sensors.

## Where to Buy

- [Arduino Store (US)](https://openhardware.directory/r?to=https%3A%2F%2Fstore-usa.arduino.cc%2Fproducts%2Fnicla-sense-me&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export) — $50.00
- [Arduino Store (EU)](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Fnicla-sense-me&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export) — €55.30
- [DigiKey](https://openhardware.directory/r?to=https%3A%2F%2Fwww.digikey.com%2Fen%2Fproducts%2Fdetail%2Farduino%2FABX00050%2F16733928&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export) — $55.00
- [Mouser](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2FProductDetail%2FArduino%2FABX00050&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export) — $55.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fstore.arduino.cc%2Fproducts%2Fnicla-sense-me&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fhardware%2Fnicla-sense-me%2F&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.arduino.cc%2Fresources%2Fdatasheets%2FABX00050-datasheet.pdf&ref=openhardware.directory&product=arduino-nicla-sense-me&source=md-export)

## Tags

`arduino`, `nicla`, `sensors`, `imu`, `air-quality`, `ble`, `bosch`, `environmental`

## Images

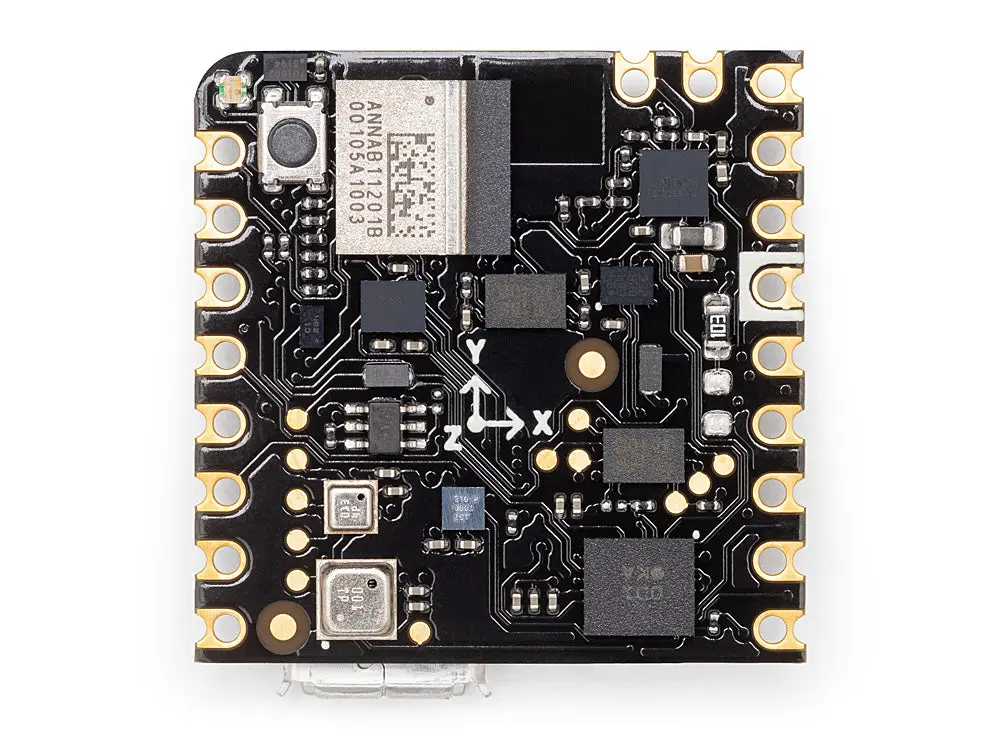

![Arduino Nicla Sense ME](https://nbg1.your-objectstorage.com/openhardware-directory/entities/arduino-nicla-sense-me/9cf7f051d525.jpg)

---
