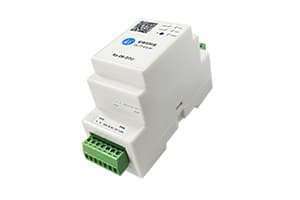

# Ai-Thinker Ra-09-DTU

> Intelligent wireless LoRaWAN DTU with isolated RS485 interface, powered by STM32WLE5CCU6 ARM Cortex-M4 MCU with integrated Sub-GHz radio. Wide 6-36V input for industrial deployment.

## Quick Facts

- **Brand:** Ai-Thinker
- **Board Type:** DTU
- **Price:** ~$4.32
- **Product Readiness:** consumer
- **CPU:** ARM Cortex-M4 @ 48MHz, FPU, DSP, AES-256 hardware crypto
- **CPU Architecture:** ARM Cortex-M4
- **CPU Cores:** 1
- **RAM:** 64KB SRAM
- **Flash:** 256KB
- **USB:** none
- **Power:** 6-36V DC (wide voltage input)
- **Operating Voltage:** 3.3V
- **Operating Temp:** -40°C to +85°C
- **Antenna:** U.FL/IPEX

## Connectivity

- **Lora:** Integrated STM32WL 410-525MHz

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Certifications

CE, FCC

## Compatible Firmware

stm32cubewl

## Use Cases

- industrial-rs485-communication
- utility-meter-reading
- remote-monitoring
- smart-agriculture
- long-range-sensor-network

## Components

- **STM32WLE5CCU6** (mcu): STMicroelectronics STM32WLE5CCU6 — ARM Cortex-M4 @ 48MHz with integrated LoRa/FSK/MSK/BPSK sub-GHz transceiver (410-525MHz), 256KB flash, 64KB SRAM, AES-256 hardware encryption, 12-bit ADC/DAC, DMA, and deep sleep as low as 0.1µA. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.st.com%2Fresource%2Fen%2Fdatasheet%2Fstm32wle5c8.pdf&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export)
- **rs485-transceiver** (interface-ic): Electrically isolated RS485 transceiver for half-duplex serial communication, providing noise immunity and ground loop protection in industrial environments. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.ai-thinker.com%2Fen%2FRa-09%2F&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export)

## Protocols

- **RS-485**: A: RS485_A, B: RS485_B
- **UART**: TX: UART_TX, RX: UART_RX
- **LoRa**: ANT: IPEX connector

## Description

## Overview

The Ai-Thinker Ra-09-DTU is an intelligent wireless data communication device that bridges RS485 serial devices to LoRaWAN networks. Built around the STM32WLE5CCU6 — an ARM Cortex-M4 MCU with an integrated Sub-GHz LoRa transceiver — it eliminates the need for a separate LoRa radio chip, resulting in a compact and power-efficient design.

Designed for industrial deployment, the Ra-09-DTU accepts a wide 6–36V DC power input and features an electrically isolated RS485 interface for reliable communication in noisy environments. LED indicators provide real-time status for each data channel, and the device supports DIN rail mounting for easy integration into electrical cabinets and control panels.

The DTU ships with pre-loaded AT firmware for out-of-the-box LoRaWAN connectivity, supporting both OTAA and ABP activation modes. Firmware can be updated over-the-air (OTA), and the open-source STM32CubeWL SDK enables custom firmware development using Keil or STM32CubeIDE via SWD programming. Operating at 410–525MHz with +22dBm transmit power and -140dBm receive sensitivity (SF12/BW125kHz), the Ra-09-DTU delivers ultra-long-range wireless communication for smart metering, agricultural monitoring, and industrial IoT applications.

## Where to Buy

- [LCSC Electronics](https://openhardware.directory/r?to=https%3A%2F%2Fwww.lcsc.com%2Fproduct-detail%2FC41368033.html&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export) — $4.32
- [Alibaba](https://openhardware.directory/r?to=https%3A%2F%2Fwww.alibaba.com%2Fproduct-detail%2FAi-Thinker-intelligent-wireless-data-communication_1601355973830.html&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export) — Contact seller

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fen.ai-thinker.com%2Fpro_view-164.html&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FAi-Thinker-Open%2FAi-Thinker-LoRaWAN-Ra-09&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.ai-thinker.com%2Fen%2FRa-09%2F&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.st.com%2Fresource%2Fen%2Fdatasheet%2Fstm32wle5c8.pdf&ref=openhardware.directory&product=ai-thinker-ra-09-dtu&source=md-export)

## Tags

`lorawan`, `rs485`, `dtu`, `industrial-iot`, `stm32wl`, `sub-ghz`, `ai-thinker`
