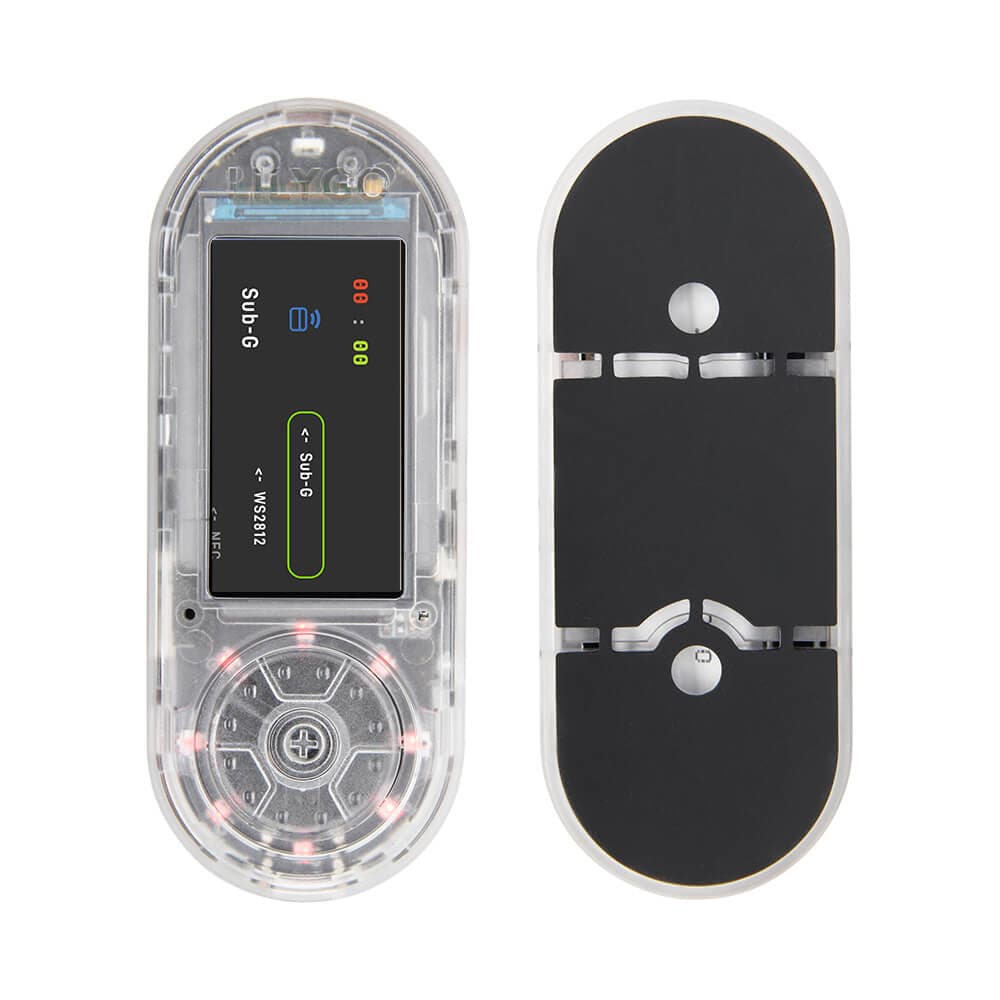

LILYGO T-Embed CC1101 Plus
Enhanced ESP32-S3 handheld with CC1101 sub-GHz radio, nRF24L01 2.4GHz radio, 1.9" IPS LCD, IR transceiver, 16MB flash, 8MB SRAM. Upgraded version of T-Embed CC1101 with added 2.4GHz wireless module.
$58.66
Tap any value to browse matching devices
Specifications
Components
Dual-core Xtensa LX7 at 240MHz with Wi-Fi b/g/n and BLE 5.0; 16MB flash, 8MB SRAM
Texas Instruments CC1101 low-power sub-GHz transceiver supporting 315/433/868/915MHz ISM bands
Nordic Semiconductor nRF24L01 2.4GHz ISM band wireless transceiver module
1.9-inch 170×320 IPS LCD display controller with SPI interface
Bus Interfaces
Overview
The LILYGO T-Embed CC1101 Plus is an enhanced version of the T-Embed CC1101, adding an nRF24L01 2.4GHz wireless module to the existing CC1101 sub-GHz radio platform. The ESP32-S3 dual-core processor drives a 1.9-inch ST7789V IPS LCD (170×320) and manages multiple wireless protocols simultaneously: Wi-Fi 802.11 b/g/n, BLE 5, CC1101 sub-GHz (315/433/868/915MHz ISM bands), and nRF24L01 2.4GHz. An IR transmit/receive module enables universal remote control capabilities. With 16MB flash and 8MB SRAM, the device is suited for RF signal analysis, remote sensing, and multi-protocol wireless research.
Use Cases
5RF Signal Analysis
Analyzing and visualizing radio frequency signals across different bands using software-defined radio.
Sub-GHz Communication
Wireless communication using sub-GHz frequencies (433/868/915 MHz) for long range and wall penetration.
IR Remote Control
Equipped with an IR transmitter for controlling IR-based appliances such as TVs, air conditioners, and set-top boxes.
Wireless Research
Research and experimentation with wireless protocols including WiFi, BLE, Zigbee, and sub-GHz.
Security Research
Hardware and wireless security research, vulnerability analysis, and penetration testing.
