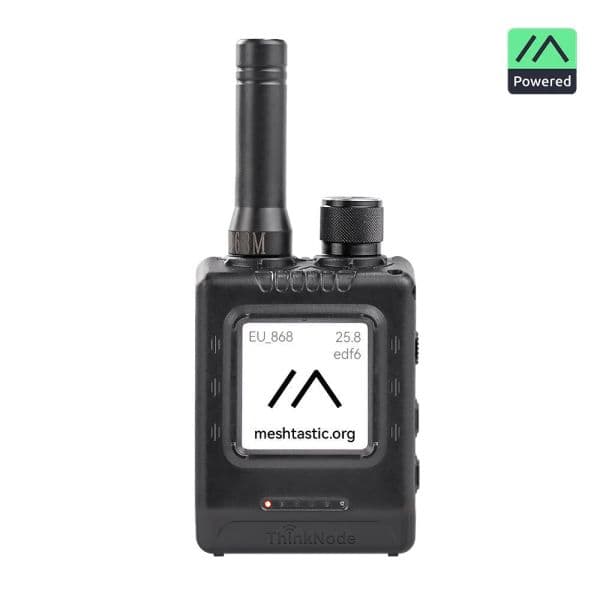

Elecrow ThinkNode M1
Compact Meshtastic LoRa transceiver with nRF52840, SX1262, 1.54\" e-paper display, GPS, and 1200mAh battery for off-grid mesh communication.
$53.90
Tap any value to browse matching devices
Specifications
Certifications
Components
Nordic Semiconductor nRF52840 SoC with ARM Cortex-M4F at 64MHz, 256KB RAM, 1MB flash, BLE 5.0, and hardware crypto (CryptoCell-310). Ultra-low power with 5.6uA standby current.
Semtech SX1262 LoRa transceiver supporting 868MHz and 915MHz bands with up to +22dBm transmit power. Enables long-range mesh communication via the Meshtastic protocol.
Solomon Systech SSD1681 e-paper controller driving a 1.54-inch 200x200 monochrome EPD panel via SPI. Provides ultra-low power display with image retention without power, ideal for battery-operated devices.
Quectel L76K compact GNSS module with 32 tracking channels supporting GPS, GLONASS, BeiDou, and QZSS constellations. 29mA tracking current, -162dBm sensitivity, connected via UART.
Bus Interfaces
GPIO Map
Overview
The Elecrow ThinkNode M1 is a compact, integrated Meshtastic transceiver designed for off-grid mesh communication. Built around the Nordic nRF52840 ARM Cortex-M4F MCU and Semtech SX1262 LoRa radio, it delivers reliable long-range mesh networking at 868MHz or 915MHz with up to +22dBm transmit power. The device comes pre-loaded with Meshtastic firmware and is fully compatible with the official Meshtastic mobile app for configuration, messaging, map/location sharing, and network monitoring.
The ThinkNode M1 features a 1.54-inch e-paper display (200x200, SSD1681 driver) for ultra-low-power status readouts, a Quectel L76K multi-constellation GNSS receiver supporting GPS, GLONASS, BeiDou, and QZSS, and a built-in 1200mAh rechargeable lithium battery providing over 48 hours of continuous operation. With a standby current of just 5.6uA, the device is optimized for extended field deployments.
The integrated design includes a buzzer, RTC with battery backup, multiple control buttons (knob, function, toggle, GPS, and reset), and LED indicators for power, GPS, and LoRa status. It connects via USB-C for charging and firmware updates, and supports BLE 5.0 for phone pairing. The device ships with a durable ABS+PC protective case and an RP-SMA LoRa antenna, making it ready for immediate deployment in hiking, emergency response, and remote area communication scenarios.
Use Cases
6LoRa Mesh Networking
Building off-grid mesh communication networks using LoRa radio for text messaging, location sharing, and sensor data relay without cellular or internet infrastructure.
Off-Grid Communication
Text messaging and data exchange in areas without cellular or internet coverage.
Emergency Communication
Off-grid emergency communication device for disaster response and outdoor safety scenarios.
GPS Tracking
Location tracking and navigation using GNSS satellite receivers.
Outdoor Recreation
Portable device designed for outdoor activities such as hiking, camping, and trail running. Provides GPS tracking, mesh communication with groups, and long battery life for extended trips.
Field Data Logger
Battery-powered device for recording sensor data, GPS coordinates, and environmental measurements in the field.
