# LILYGO T-HaLow P4

> ESP32-P4 high-performance board with ESP32-C6 WiFi HaLow (802.11ah), 16MB flash, 8MB PSRAM, H.264 1080P video processing, MIPI-CSI/DSI, and BLE 5 — designed for long-range sub-GHz WiFi IoT applications.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$26.57
- **Product Readiness:** developer
- **CPU:** ESP32-P4 RISC-V dual-core @ 400MHz + ESP32-C6 coprocessor
- **CPU Architecture:** RISC-V
- **CPU Cores:** 2
- **RAM:** 768KB SRAM
- **PSRAM:** 8MB
- **Flash:** 16MB
- **USB:** USB-C
- **Power:** 5V
- **Operating Voltage:** 3.3V

## Connectivity

- **Wifi:** WiFi HaLow 802.11ah (sub-1GHz) + WiFi 6
- **Bluetooth:** BLE 5.0

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino, platformio

## Use Cases

- iot-gateway
- iot
- environmental-monitoring
- security-camera

## Components

- **ESP32-P4** (mcu): Espressif ESP32-P4 dual-core RISC-V at 400MHz with H.264 1080P video processing, MIPI-CSI/DSI, 16MB flash, 8MB PSRAM. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-p4_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-halow-p4&source=md-export)
- **ESP32-C6** (mcu): Espressif ESP32-C6 providing WiFi 6 (2.4GHz), WiFi HaLow (802.11ah sub-1GHz), BLE 5, and 802.15.4 (Thread/Zigbee). — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.espressif.com%2Fsites%2Fdefault%2Ffiles%2Fdocumentation%2Fesp32-c6_datasheet_en.pdf&ref=openhardware.directory&product=lilygo-t-halow-p4&source=md-export)

## Protocols

- **SPI**
- **I2C**
- **UART**
- **MIPI CSI**
- **MIPI DSI**

## Description

## Overview

The LILYGO T-HaLow P4 is a high-performance development board pairing the powerful Espressif ESP32-P4 application processor with an onboard ESP32-C6 module for WiFi HaLow (IEEE 802.11ah) connectivity. The ESP32-P4 features a dual-core RISC-V processor capable of H.264 1080P 30FPS video encoding/decoding with MIPI-CSI camera input and MIPI-DSI display output, 16MB flash, and 8MB PSRAM. WiFi HaLow operates in the sub-1GHz band (900MHz), offering up to 1km+ range with lower power consumption than standard WiFi — ideal for outdoor IoT deployments, smart agriculture, and building automation where standard WiFi falls short. The ESP32-C6 also provides BLE 5 and 802.15.4 for Thread/Zigbee. Development is supported via Arduino IDE, VS Code, and ESP-IDF.

## Where to Buy

- [LILYGO Official](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-halow-p4&ref=openhardware.directory&product=lilygo-t-halow-p4&source=md-export) — $26.57

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Ft-halow-p4&ref=openhardware.directory&product=lilygo-t-halow-p4&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FXinyuan-LilyGO%2FT-Halow-P4&ref=openhardware.directory&product=lilygo-t-halow-p4&source=md-export)

## Tags

`esp32-p4`, `esp32-c6`, `wifi-halow`, `lilygo`, `ble5`, `h264`, `mipi`, `802-11ah`

## Images

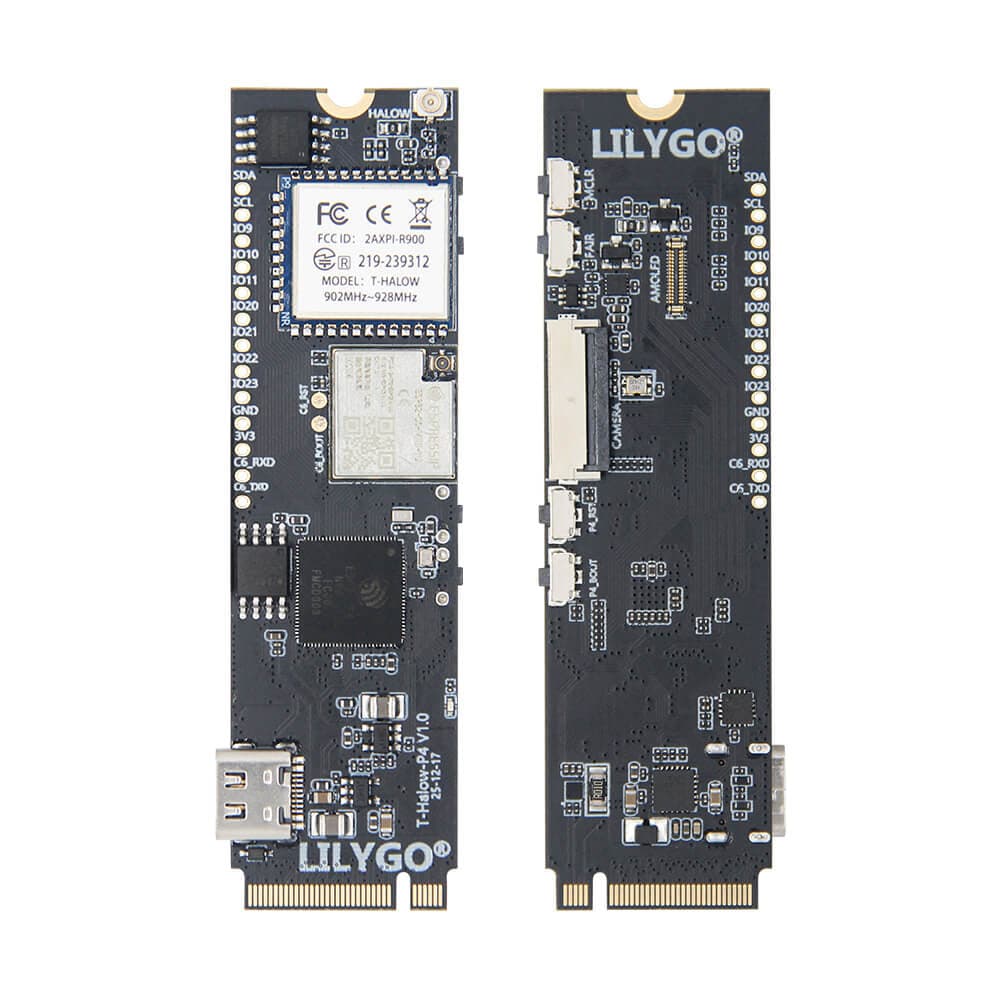

![LILYGO T-HaLow P4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-halow-p4/414b8a8e1dbe.jpg)
![LILYGO T-HaLow P4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-halow-p4/b36f90d00576.jpg)
![LILYGO T-HaLow P4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-halow-p4/2c646eb466e9.jpg)
![LILYGO T-HaLow P4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-halow-p4/46355227e9f1.jpg)
![LILYGO T-HaLow P4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-halow-p4/cbe0b0941186.jpg)
![LILYGO T-HaLow P4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-halow-p4/bd91949bff1b.jpg)
![LILYGO T-HaLow P4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lilygo-t-halow-p4/aa15f39401df.png)

---
