# Holybro M10 GPS

> u-blox M10 GPS module with IST8310 compass for Pixhawk flight controllers. Supports GPS, GLONASS, Galileo, and BeiDou constellations with onboard safety switch, buzzer, and LED indicator.

## Quick Facts

- **Brand:** Holybro
- **Board Type:** module
- **Price:** ~$43.99
- **Product Readiness:** consumer
- **CPU:** u-blox M10 GNSS SoC
- **CPU Architecture:** ARM Cortex-M0
- **CPU Cores:** 1
- **RAM:** N/A
- **Flash:** N/A
- **Power:** 3.3V via flight controller
- **Operating Voltage:** 3.3V
- **Dimensions:** 50mm diameter x 14.4mm
- **Weight:** 32g

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Use Cases

- drone
- gps-tracking
- drone-flight-controller

## Components

- **u-blox M10** (GNSS Receiver): u-blox M10 GNSS receiver supporting GPS, GLONASS, Galileo, and BeiDou with up to 4 concurrent constellations — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcontent.u-blox.com%2Fsites%2Fdefault%2Ffiles%2FMAX-M10S_DataSheet_UBX-20035208.pdf&ref=openhardware.directory&product=holybro-m10-gps&source=md-export)
- **IST8310** (Magnetometer): 3-axis digital magnetometer for compass heading — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fintofpv.com%2Fattachment.php%3Faid%3D8104&ref=openhardware.directory&product=holybro-m10-gps&source=md-export)

## Protocols

- **UART**
- **I2C**

## Description

# Holybro M10 GPS

The Holybro M10 GPS is a compact GNSS positioning module designed for use with Pixhawk-based flight controllers. It features the u-blox M10 receiver with multi-constellation support and an integrated IST8310 magnetometer for compass heading.

## Key Features

- **u-blox M10 GNSS Receiver**: Concurrent reception of up to 4 satellite constellations (GPS, GLONASS, Galileo, BeiDou)
- **Integrated Compass**: IST8310 3-axis digital magnetometer for accurate heading
- **Ceramic Patch Antenna**: 25x25x4mm with 1.5dBi gain
- **Safety Switch**: Onboard arming safety switch
- **Buzzer**: Built-in buzzer for audible alerts
- **LED Indicator**: Tri-color LED for status indication
- **Backup Battery**: Rechargeable battery for warm/hot starts

## Specifications

- **GNSS Receiver**: u-blox M10
- **Constellations**: GPS, GLONASS, Galileo, BeiDou (4 concurrent)
- **Compass**: IST8310 magnetometer
- **Antenna**: 25x25x4mm ceramic patch, 1.5dBi gain
- **Dimensions**: 50mm diameter x 14.4mm height
- **Weight**: 32g

## Connector Options

Three variants available for different flight controller connections:
- **Standard** (SKU 12040): JST-GH 10-pin connector -- compatible with Pixhawk 6C, Pixhawk 6X, and other FMUv6 controllers
- **Secondary GPS** (SKU 12042): JST-GH 6-pin connector -- for use as a secondary GPS
- **For Pix32 / Pixhawk 1/2.4.6/2.4.8** (SKU 12041): Molex 1.25mm connector -- for legacy Pixhawk controllers

## Compatibility

Works with all Pixhawk-standard flight controllers running ArduPilot or PX4 firmware, including:
- Pixhawk 4, Pixhawk 6C, Pixhawk 6X
- Pix32, Pixhawk 2.4.8
- Other FMUv5/v6 controllers

## Where to Buy

- [Holybro Official](https://openhardware.directory/r?to=https%3A%2F%2Fholybro.com%2Fproducts%2Fm10-gps&ref=openhardware.directory&product=holybro-m10-gps&source=md-export) — $43.99
- [OpenELab](https://openhardware.directory/r?to=https%3A%2F%2Fopenelab.io%2Fproducts%2Fholybro-gps-m10n&ref=openhardware.directory&product=holybro-m10-gps&source=md-export) — €71.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fholybro.com%2Fproducts%2Fm10-gps&ref=openhardware.directory&product=holybro-m10-gps&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FPX4%2FPX4-Autopilot&ref=openhardware.directory&product=holybro-m10-gps&source=md-export)

## Tags

`gps`, `gnss`, `ublox`, `m10`, `holybro`, `pixhawk`, `drone`, `navigation`, `compass`, `magnetometer`

## Images

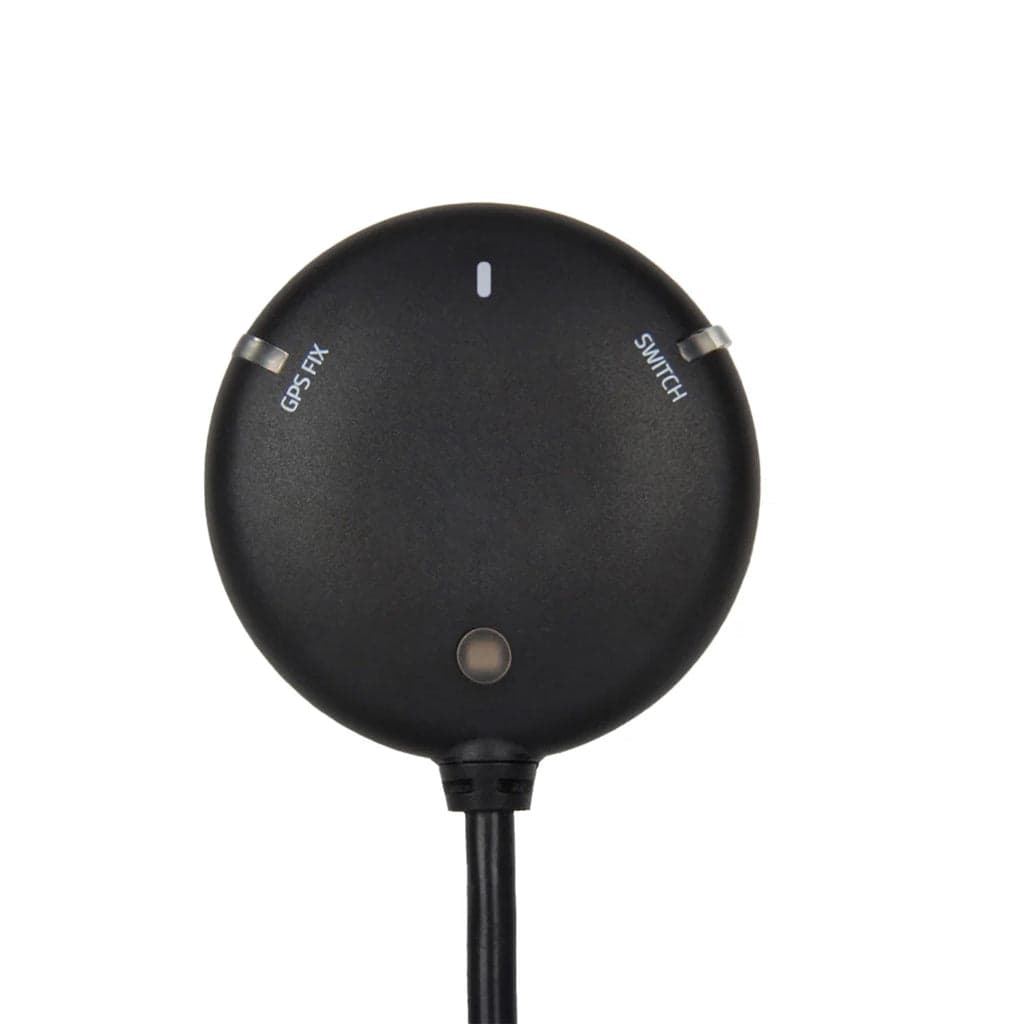

![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/f3ed64f6dd32.jpg)
![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/ae42e99c145d.jpg)
![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/677762e44311.jpg)
![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/c9c1936b2909.jpg)
![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/83d20189d357.jpg)
![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/4ef04efde3f5.jpg)
![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/991358c14f9d.jpg)
![Holybro M10 GPS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/holybro-m10-gps/1b011a8e76b4.jpg)

---
